2025 GODIAG GT107+ DSG Plus Gearbox Data Adapter with Voltage Current Display For DQ250 DQ200 VL381 VL300 DQ500 DL501 Benz BMW can clone, diagnose and repair DSG gearbox ECU and can also read, write and adjust data

描述

GODIAG GT107+ DSG Plus Gearbox Data Adapter is a DSG gearbox connection adapter has automatic and manual selection for PCMFlash software. 2025 GODIAG GT107+ DSG Plus Gearbox Data Adapter with Voltage Current Display For DQ250 DQ200 VL381 VL300 DQ500 DL501 Benz BMW can clone, diagnose and repair DSG gearbox ECU and can also read, write and adjust data. CheShiTech.com GODIAG GT107+ DSG Plus Gearbox Data Adapter with Voltage Current Display For Connecting Gearbox ECUs via PCMFlash, PCMTuner, and Kessv2, etc with inbuild CAN Resistor.

2025 GODIAG GT107+ DSG Plus Gearbox Data Adapter with Voltage Current Display For DQ250 DQ200 VL381 VL300 DQ500 DL501 Benz BMW can clone, diagnose and repair DSG gearbox ECU and can also read, write and adjust data

CheShiTech.com GODIAG GT107+ DSG Plus Gearbox Data Adapter with Voltage Current Display For Connecting Gearbox ECUs via PCMFlash, PCMTuner, and Kessv2, etc with inbuild CAN Resistor

Note: CheShiTech.com Also Have Newest 7 in 1 GODIAG GT107+ Gearbox Cables Set, Welcome Order:

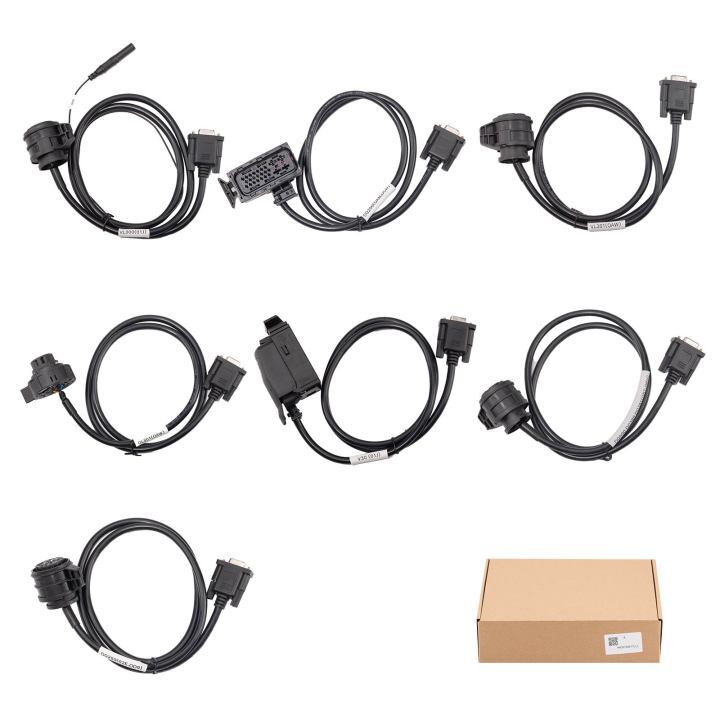

2025 GODIAG Gearbox Cables Set 7 in 1 GODIAG GT107+ Gearbox Cables Set for V30/ DQ200/ DL501/ VL300/ VL381/ DQ500/ DQ250 Work With GODIAG GT107+ DSG Plus Gearbox Data Adapter

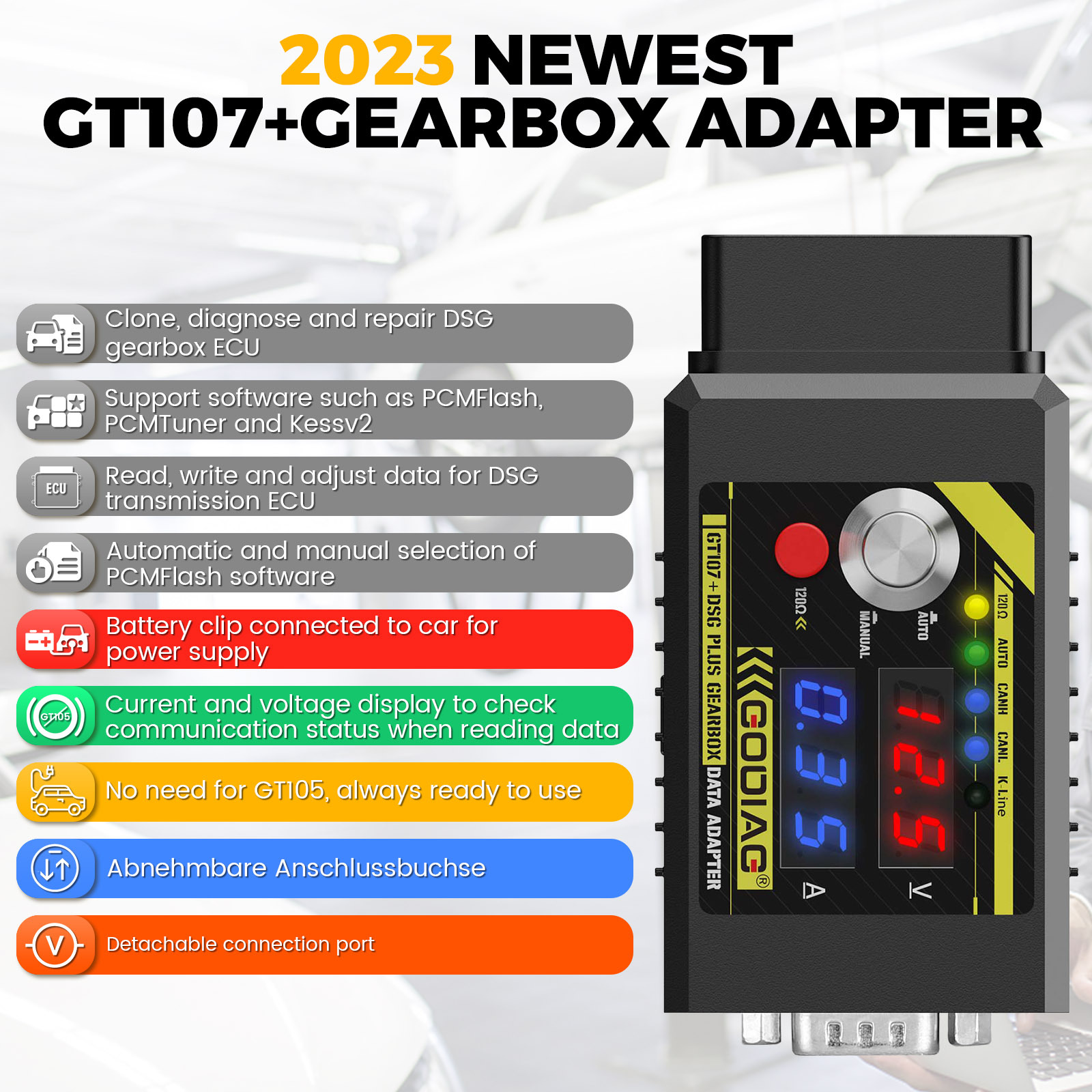

2025 GODIAG GT107+ DSG Plus Gearbox Data Adapter with Voltage Current Display Description:

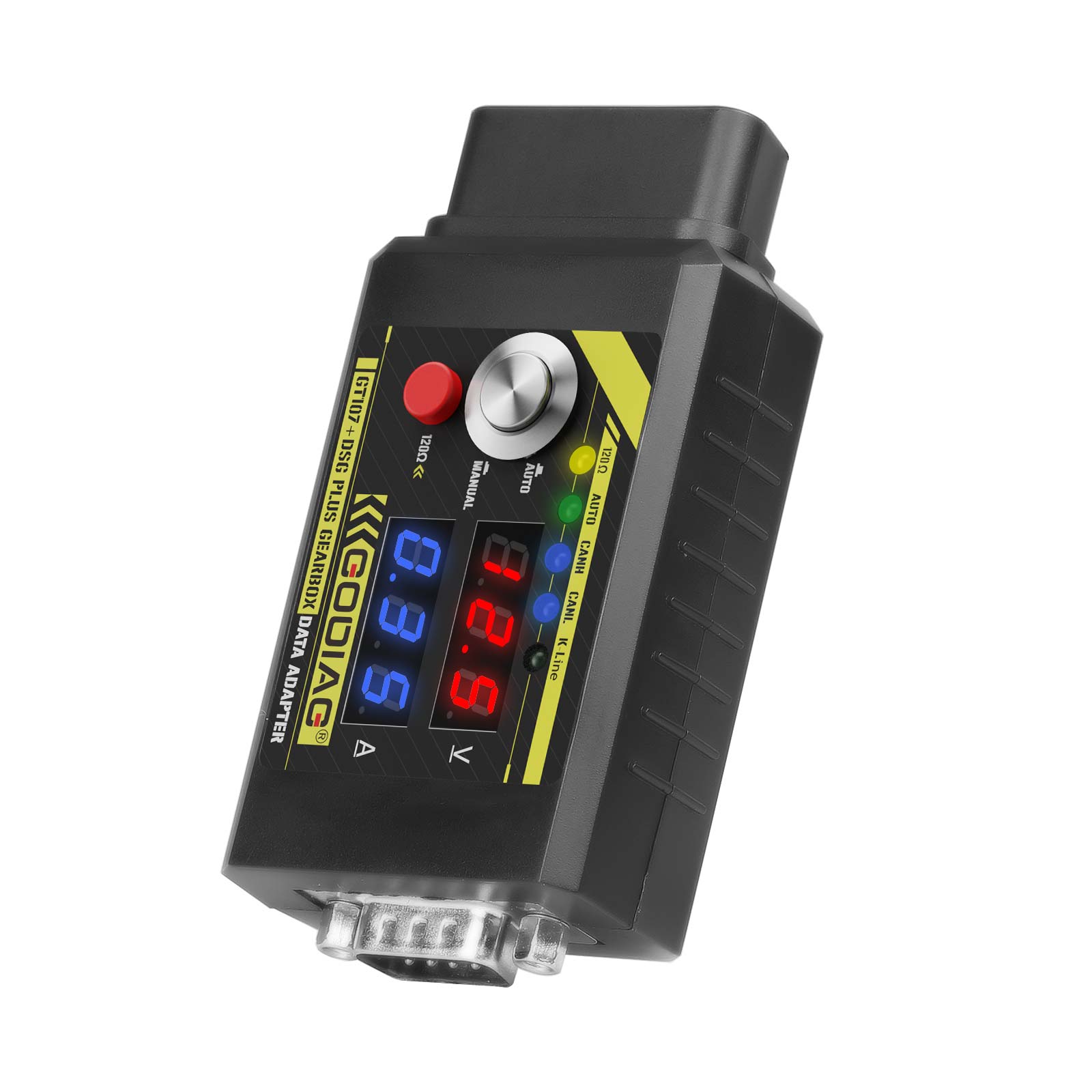

GODIAG GT107+ DSG plus gearbox data adapter is a DSG gearbox connection adapter. DSG gearbox maintenance engineers can clone, diagnose and repair DSG gearbox ECU and can also read, write and adjust data for DSG gearbox ECU via PCMFlash, PCMTuner, and Kessv2, etc.

This adapter has automatic and manual selection for PCMFlash software. For data reading and writing, you can choose “Auto”, and for diagnosis you can choose “Manual”. For other software kessv2, DQ200, DQ250, DQ500, you can also choose “Manual”.

Moreover, with the car battery power, the adapter can directly read and write DSG gearbox data and you can clearly check the communication status during the data reading and writing process.

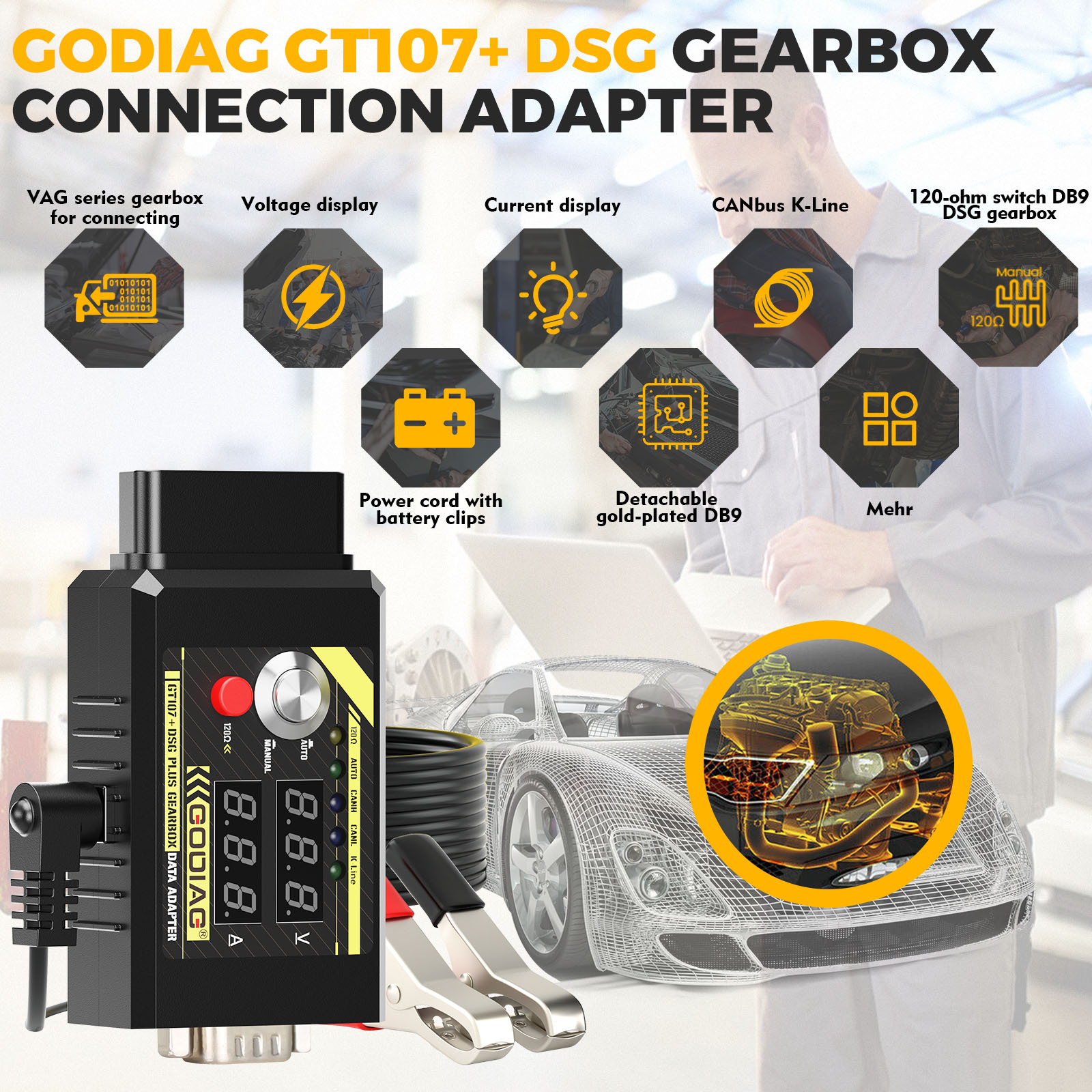

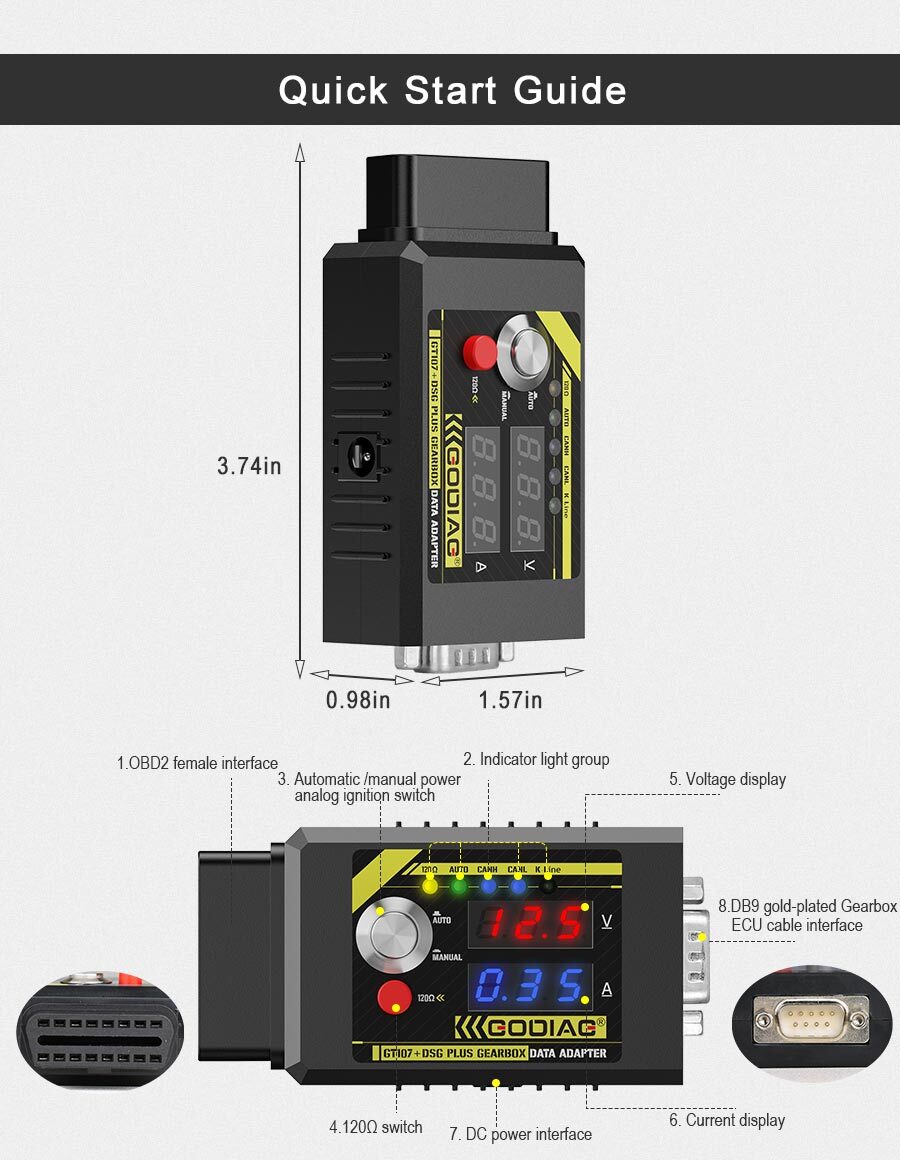

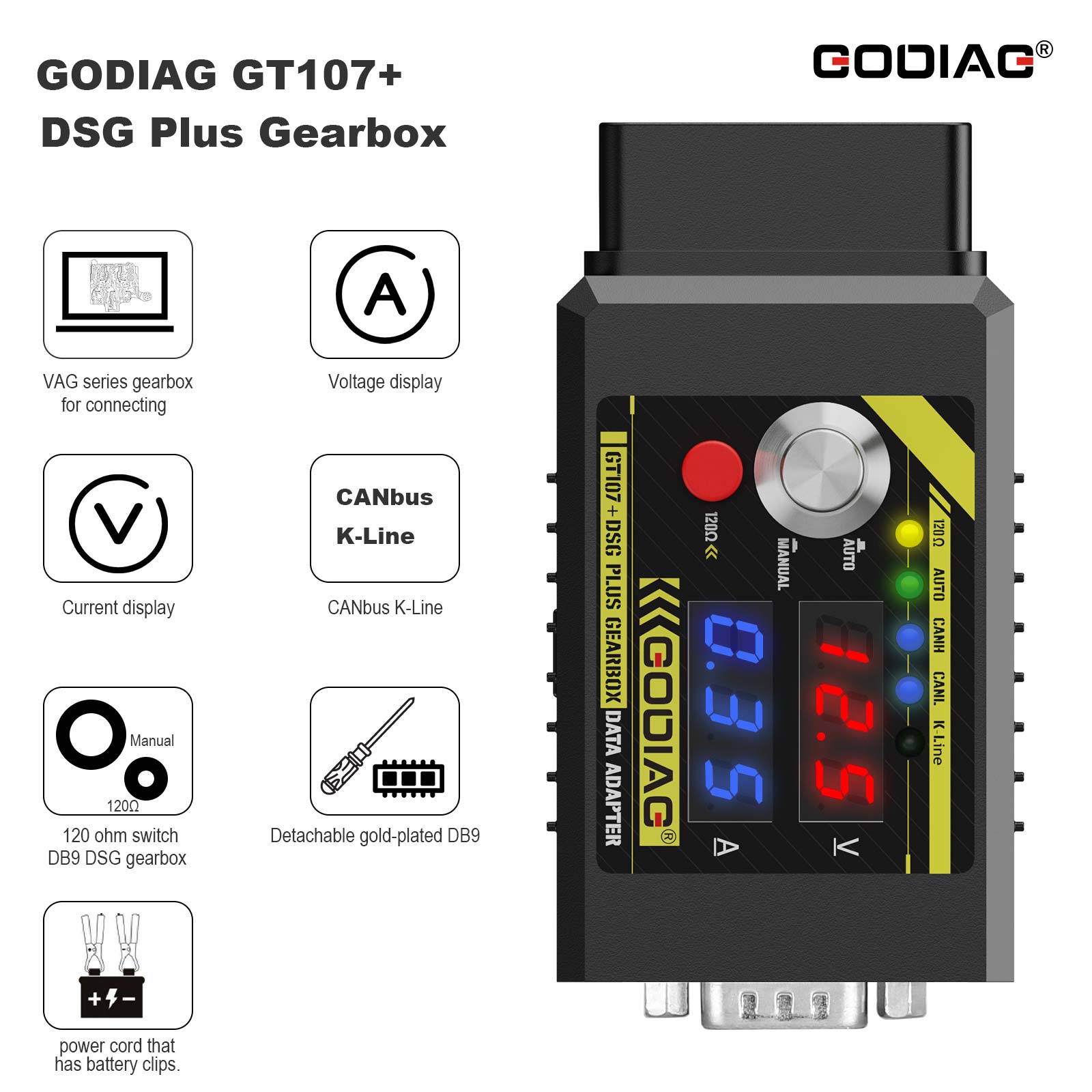

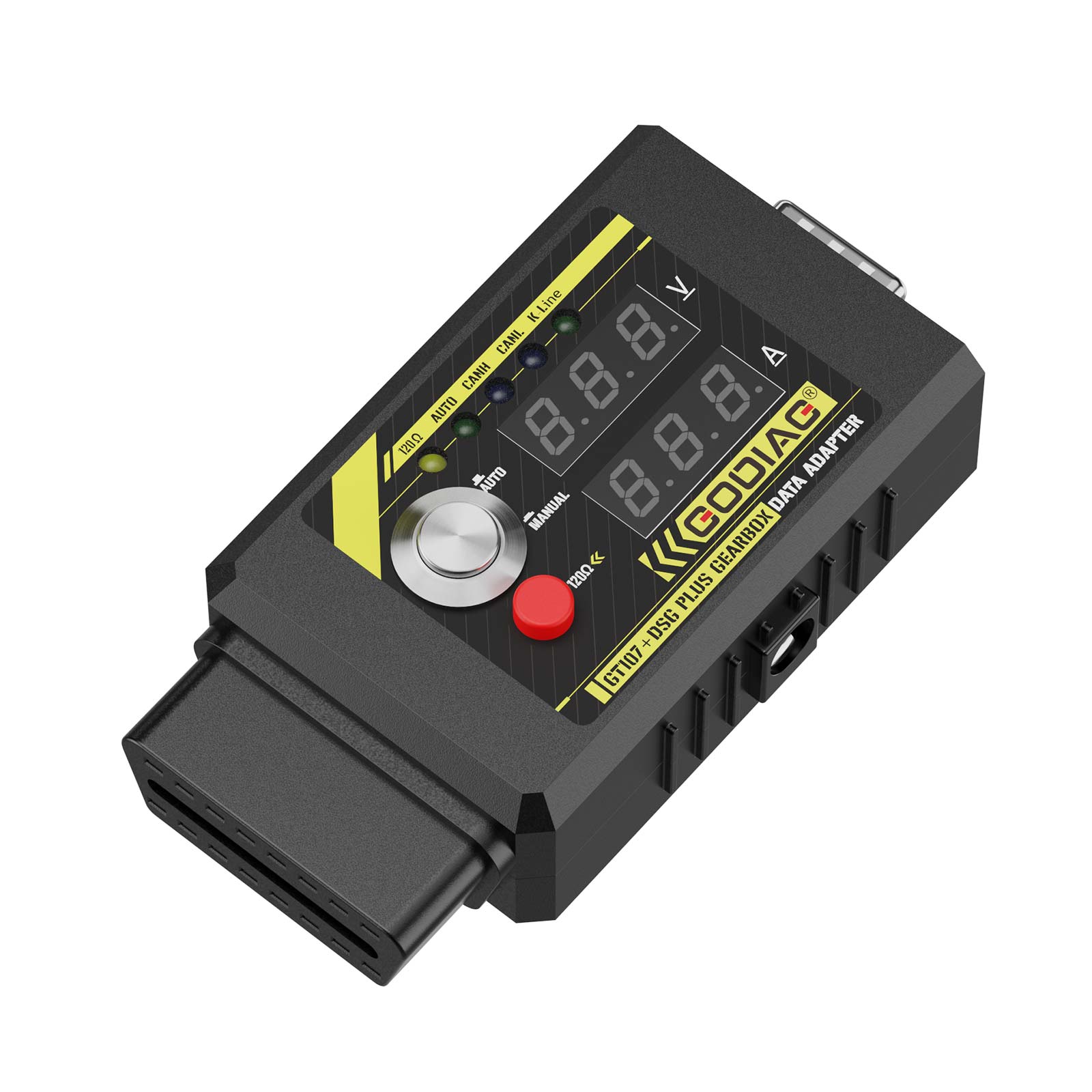

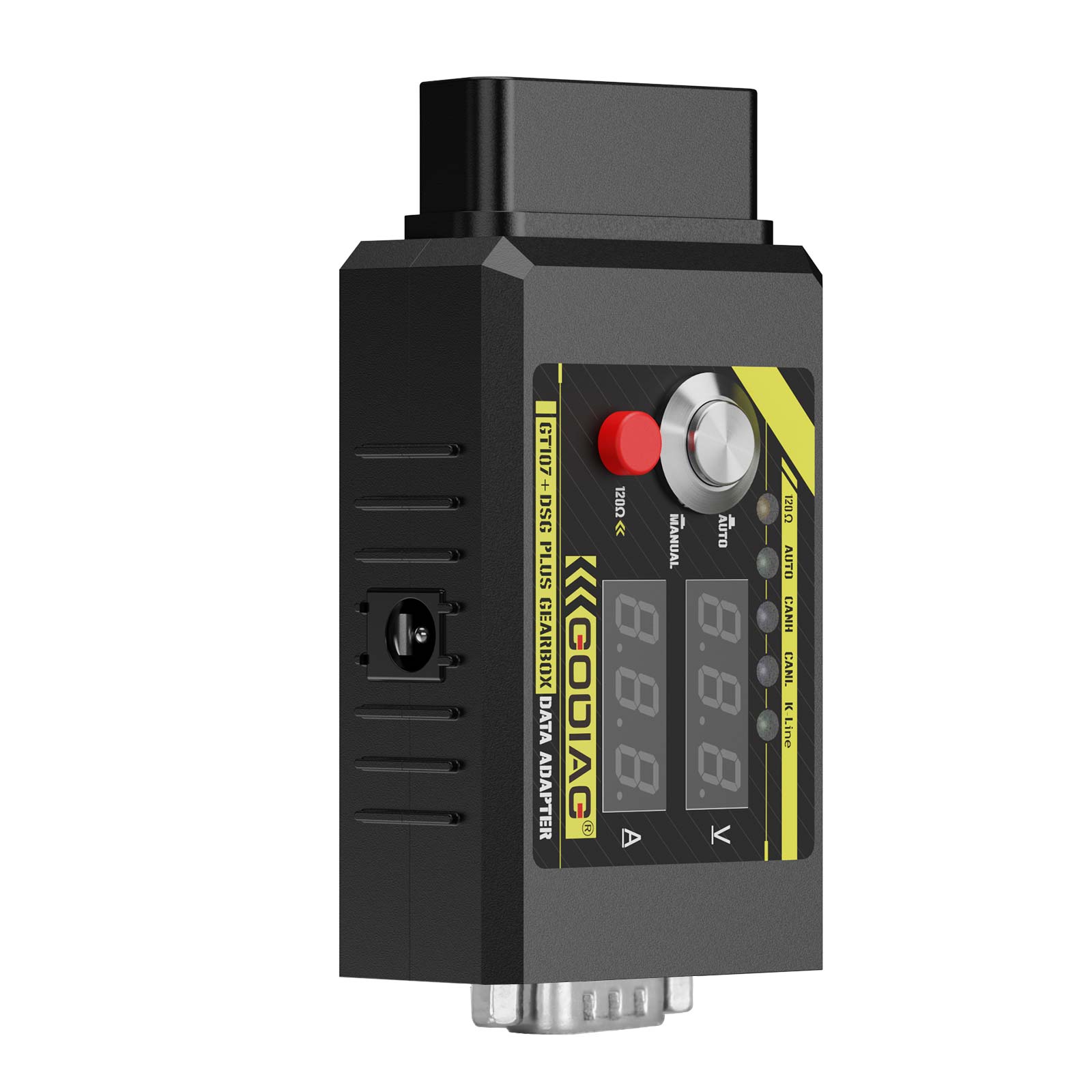

GODIAG GT107+ DSG Plus Gearbox Data Adapter Features:

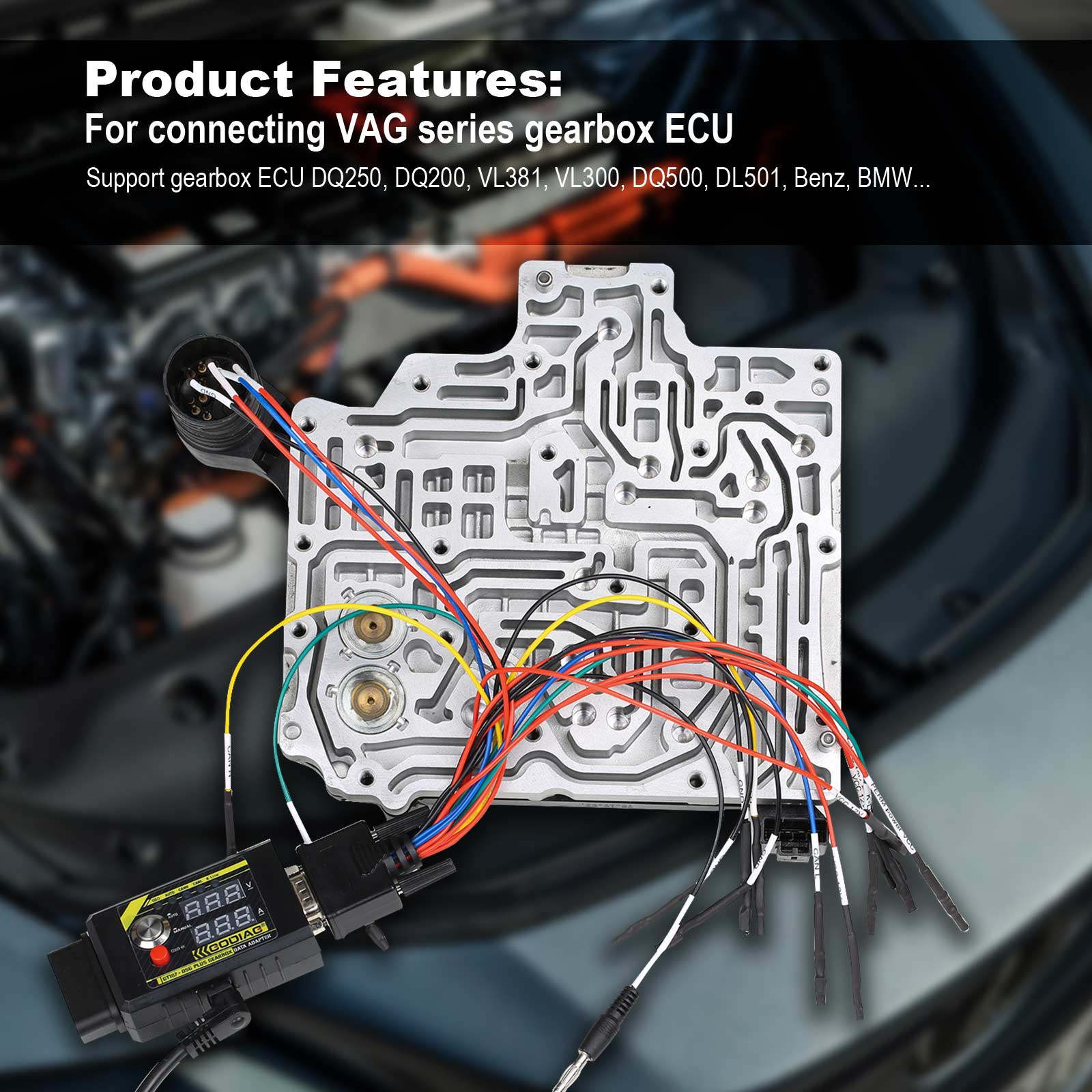

1. The adapter is suitable for connecting VAG series gearbox ECUs, supporting gearbox ECU DQ250, DQ200, VL381, VL300, DQ500, DL501, Benz, BMW…
2. Voltage display: the user can know the current operating voltage of the gearbox ECU. If there is a short circuit or wrong wiring, the voltage will drop severely, which can be used to judge the problem.
3. The current display can display the current working current of the gearbox ECU, which is used to judge the working condition of the gearbox ECU.
4. The communication indicator can display the current CANbus K-Line communication status.

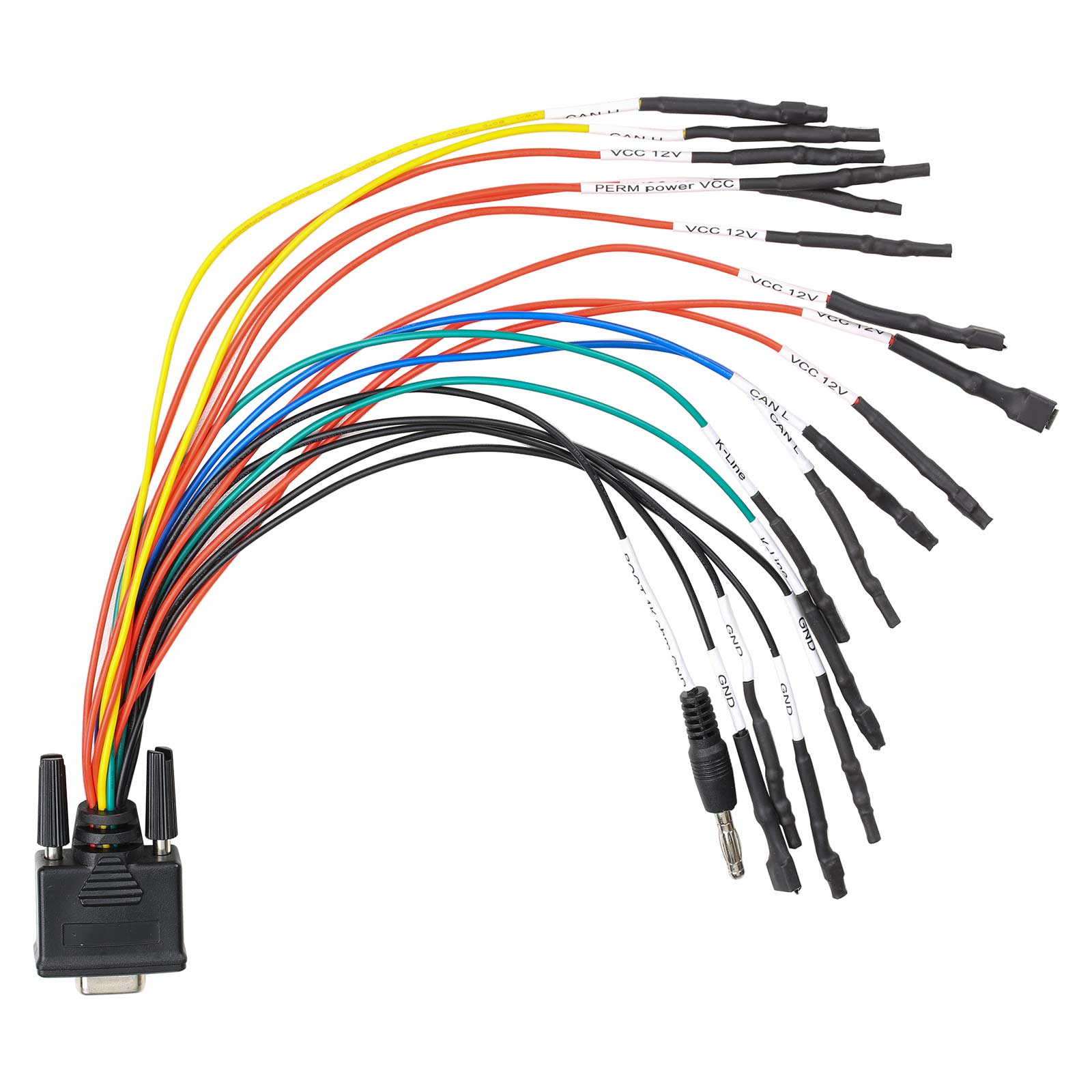

5. Manual and automatic power switch, 120 ohm switch. There are boot mode cable (DB9 DSG gearbox universal conversion jumper) and a probe.
6. Detachable gold-plated DB9 connection interface, users can make professional connection ports by themselves to realize DIY development.
7. Equipped with power cord that has battery clips. Users can draw power from the vehicle battery.

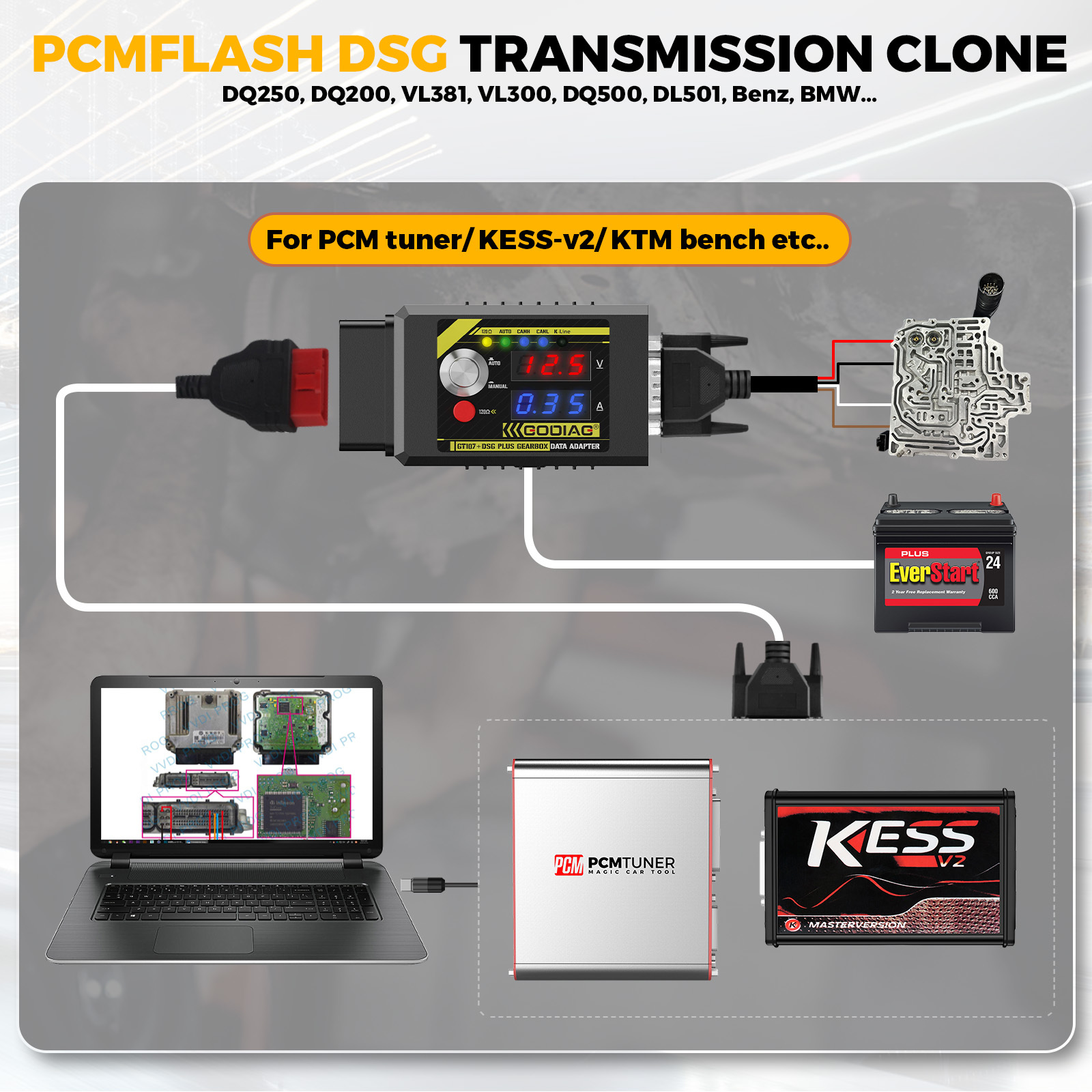

GODIAG GT107+ DSG Plus Gearbox Data Adapter Connection Diagram & Operation:

1. Used with PCMtuner：

Easy Operation:

1.Connect the Godiag GT107+ to the gearbox ECU according to the gearbox ECU wiring definition. For VAG DQ250, DQ200, VL381, VL300, DQ500, DL501, for Renault DC0/DC4, Gen2, for Honda LUK UDCT.
2.Connect the 12V 2A DC power supply. (The function buttons must be popped up before connecting the power supply.)
3.GODIAG GT107 + analog ignition switch is in “automatic” mode if the ignition switch is not pressed, the voltage and current data of the adapter displays 0V 0A, and it is in “manual” mode, if the ignition switch is pressed, the adapter displays the current working voltage of the power supply, and the current working current of gearbox ECU. (Note: please select the “automatic” or “manual” analog ignition mode, according to the mode required by the device for reading and writing data, )
4.Connect PCMFlash, PCMTuner, J2534passthru.
5.Perform data reading and writing operations.

2. Used on the Car:

Easy Operation:

1.According to the wiring definition of Gearbox ECU, connect Godiag GT107+ to the gearbox ECU. For VAG DQ250, DQ200, VL381, VL300, DQ500, DL501, for Renault DC0/DC4, Gen2, for Honda LUK UDCT.
2.Connect the 12V 2A DC power supply. (The function buttons must be popped up before connecting the power supply.)
3.GODIAG GT107 + analog ignition switch is in “automatic” mode if the ignition switch is not pressed, the voltage and current data of the adapter displays 0V 0A, and it is in “manual” mode, if the ignition switch is pressed, the adapter displays the current working voltage of the power supply, and the current working current of gearbox ECU. (Note: please select the “automatic” or “manual” analog ignition mode, according to the mode required by the device for reading and writing data, )
4.Connect PCMFlash, PCMTuner, J2534passthru.
5.Perform data reading and writing operations.

3. GODIAG GT107+ DSG plus Used with KESS V2, DQ200, DQ250, DQ500:

Easy Operation:

1.Connect the Godiag GT107+ to the gearbox ECU according to the gearbox ECU wiring definition. For VAG DQ250, DQ200, VL381, VL300, DQ500, DL501, for Renault, DC0/DC4, Gen2, for Honda LUK UDCT, Benz, BMW, gearbox ECU.
2.Connect the 12V 2A DC power supply. (The function buttons must be popped up before connecting the power supply.)
3.GODIAG GT107 + analog ignition switch is in “manual” mode if the ignition switch is pressed, the adapter displays the current working voltage of the power supply, and the current working current of gearbox ECU.
4.Connect OBD2 data reading and writing device or diagnostic device.
5.Perform Gearbox ECU data reading, writing or diagnostic operations.

Godiag GT107+ DSG Plus VS GT107 DSG

Product	GT107 DSG	GT107+ DSG Plus
VAG series DSG gearbox	Yes	Yes
Manual power analog ignition switch	Yes	Yes
PCMFIash L-Line automatic control	Yes	Yes
BOOT cable & boot probe	Yes	Yes
CAN H CANL K-line communication indicator	Yes (need Godiag GT105)	Yes
120 ohm CAN resistance switch	Yes	Yes
Draw power from the vehicle battery	Yes	Yes
Automatic control of power indicator light	Yes	Yes
120 ohm CAN resistance switch indicator	No	Yes
Voltage display	No	Yes
Current display	No	Yes
Support disassembly and connect with wire, convenient for DIYs. Or connect with professional adapter	No	Yes
Support other Gearbox ECUs	Less	Add VCC GND cable, support more gearbox ECUs

GODIAG GT107+ DSG Plus Gearbox Data Adapter Package Includes:

1pc x Godiag GT107+ ECU Prog AD
1pc x DB9 DSG Gearbox Universal Conversion Jumper
1pc x Power Cord with Battery Clips
1pc x Probe
1pc x DC power adapter(5.5*2.1mm female to 5.5*2.5mm male)
1pc x GODIAG GT107+ DSG Plus Gearbox Data Adapter Manual

GODIAG GT107+ DSG Plus Gearbox Data Adapter Feedback :

Q: Hi! I have question, can I connect GT107+ directly to the VCDS HEX-V2 from Ross-tech? I have some mechatronic units and I wonder if I can read those units via VCDS software, not flash etc only read and check for example pressure sensors or clutch K1 and K2 sensors?
A: I got my gt107+ and tested with VCDS via hex-v2. I  have connected successful to mechactronic unit from DSG DQ250. I could check sensors etc.
