New Model MST-90+ Universal Car Battery Voltage Regulator & Charger MST-90+ Automotive Voltage Regulator Stabilizer for AUDI/VW/BENZ/BMW Ecu Coding Power Stabilizer

描述

New Model MST-90+ Universal Car Battery Voltage Regulator & Charger supply power to the car and adjust the voltage when the car is programming. MST-90+ Automotive Voltage Regulator Stabilizer for AUDI/VW/BENZ/BMW Ecu Coding Power Stabilizer. CheShiTech.com Automotive Power Processor Programming Voltage Regulator Charger Supply for Car ECU Programming Voltage Stabilizer.

New Model MST-90+ Universal Car Battery Voltage Regulator & Charger MST-90+ Automotive Voltage Regulator Stabilizer for AUDI/VW/BENZ/BMW Ecu Coding Power Stabilizer

CheShiTech.com Automotive Power Processor Programming Voltage Regulator Charger Supply for Car ECU Programming Voltage Stabilizer

Note:

There are US Plug, EU Plug and AU Plug in our store. And the Instrument has AC 100-120V and AC 220-240V. Please leave a message what you need.

For AUDI/VW/BENZ/BMW Automotive Programming Dedicated Power can prevents equipment damage from voltage fluctuations and transien

Automotive Power Processor Automatic Voltage Regulator delivers cost-effective and high quality power protection for many applications (Often times, it takes too long time to do vehicle ECU programming, the battery voltage usually is lower or higher than standard values due to electricity instability which might result sudden disruption during programming and cause damage to Vehicle ECU.)

MST-90+ Universal Car Battery Voltage Regulator Functions:

1.Smart vehicle Program
2.Charging dedicated power
3.Input voltage 220V only, Output Voltage 14V/120A.
4.High temperature alarm.
5.Intelligent charger for motor vehicles starter battery
6.Extensive protection functions and self-protection functions
7.Short circuit and reverse polarity protection

MST-90+ Applicable Models: Volvo, Volkswagen, Audi, BMW, Mercedes, General Motors Etc.

MST-90+ Automotive Voltage Regulator Stabilizer Output Characteristics:

DC voltage: 14.5V
Rated current: 0-100A
Rated maximum power: 1500W
Ripple and noise: 100mVp-p

Automotive Programming Dedicated Power Input Characteristics:

input voltage: AC220V±15%
Frequency range: 40-60HZ
Power Factor: 0.95
Efficiency: 85%

Automotive Programming Dedicated Power Protection Features:

Overload: 90-110% of rated output power
Output voltage/ A : 14V /120A
Working temperature: -40°C±85°C
Safety: UL60950, TUV EN60950-1
Withstand voltage: I / P-O / P: 3KVAC I / P-FG: 1.5KVAC
Insulation resistance: I / PO / P, I / P-FG: 100M Ohms, 500VDC/25 C / 70% RH
EMC: Complies with EN55022, EN61000

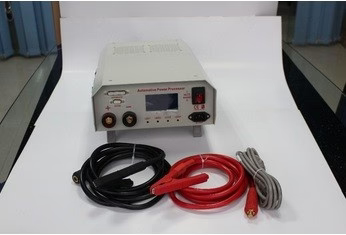

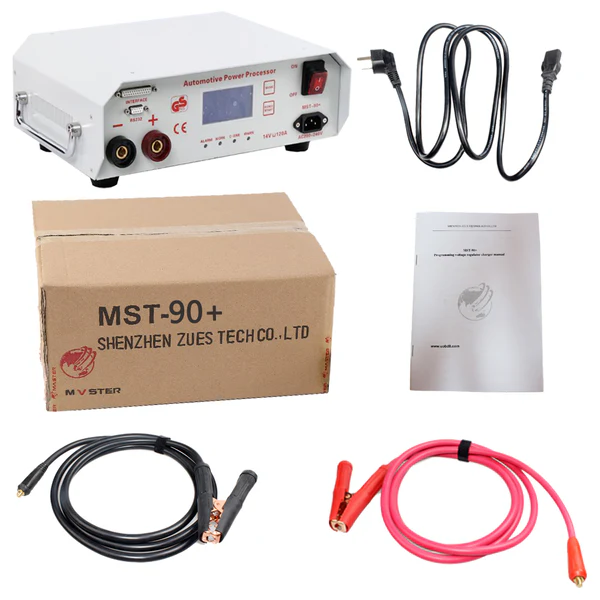

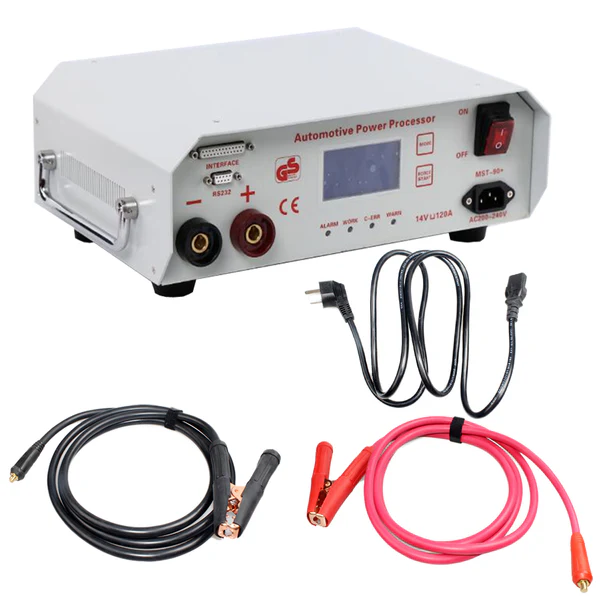

MST-90+ Automotive Voltage Regulator Stabilizer Package List:

1.charger host          1   set
2.red clip line           1   piece
3. black clip line         1   piece
4. power input line       1   piece

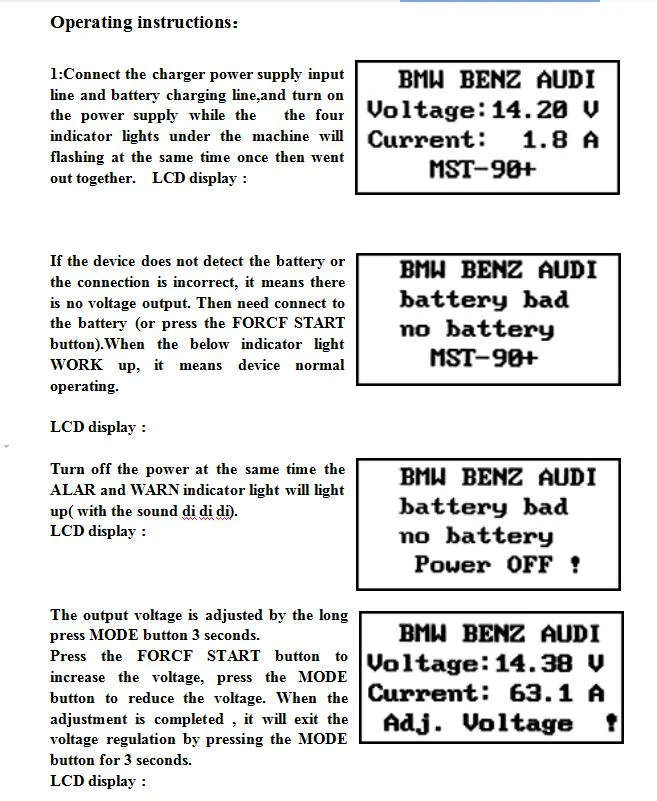

MST-90+ Automotive Voltage Regulator Stabilizer Operating Instructions:

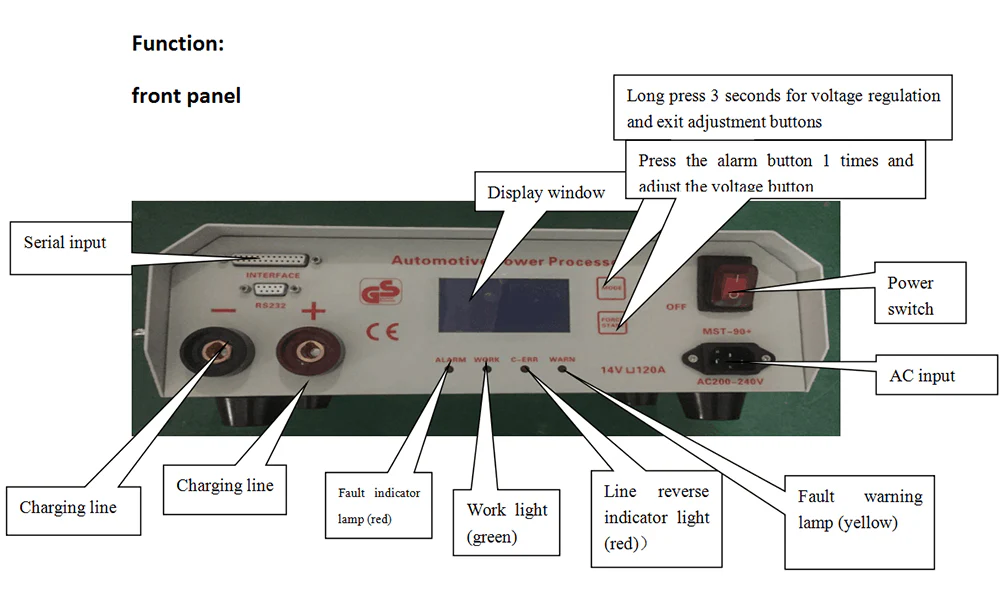

1. Connect power input line and battery charging wires, open power(LED1 will light) Display window will display normal charging voltage and current. And light LED2
2. Don’t charge over-discharger battery show voltage down 8V, will show (Battery bad)
3. When battery charge full, charger will cut-off in-put and show(charge end)
4. When charging current over 100A or charger out-put voltahe over 15V, this charger will cut-off out-put and light LED3, show(large charging) or (high voltahe)

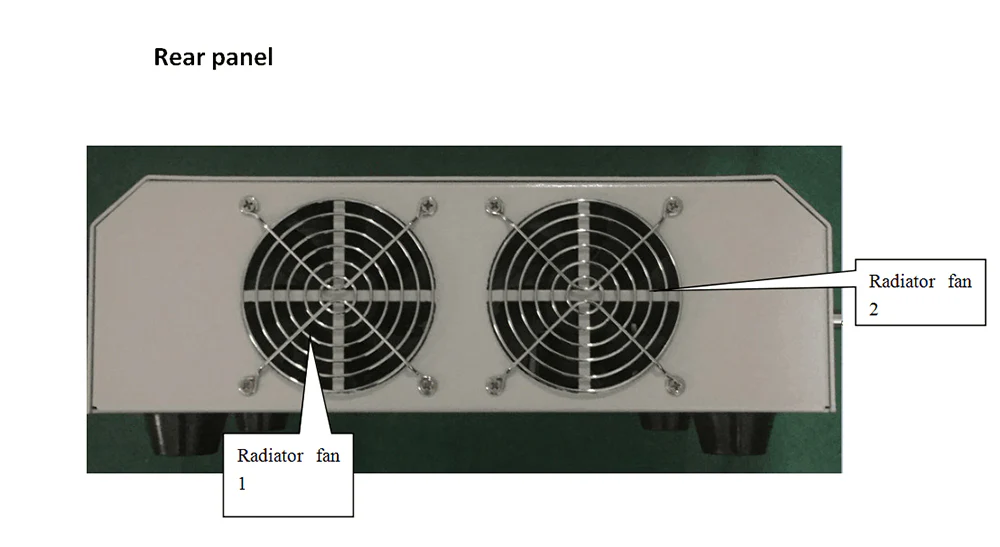

5. When charger’s temperature over 60 degrees celsius, LED4(Yellow light) will light and open cooling fan at the same time.

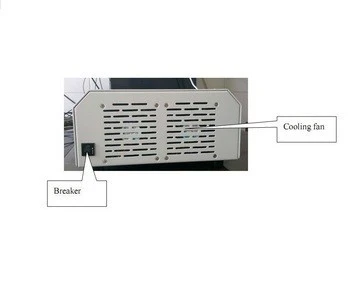

6. When charger input have problem of over-current, over-voltage, high temperature, breaker will automatic pop-ip, user need press in breaker and cheak whether circuit have problem.

MST-90+ Automotive Voltage Regulator Stabilizer Notice :

1. Please use piwer socket over 10A
2. After connect charging wire, please screw tight tum right and screw tight.
Please confirm the connection is NO problem before turn on power.
3. Don’t operate charger when the power ON
