2025 CGDI CG100X Programmer Support BMW Land Rover Key match Free Update for 1 Year. CGDI CG100X New Generation Smart Car Programmer for Airbag Reset Mileage Adjustment and Chip Reading with Free D1 & D2 Adapter Supports MQB 5A 5C 5D Clusters. CheShiTech.com CGDI CG100X New Generation Smart Car Programmer With Latest V1.8.6.0 CG100X Software New Update covers 90% of models and modules on the market Including engineering vehicles and motorcycles.

2025 CGDI CG100X Programmer CGDI CG100X New Generation Smart Car Programmer for Airbag Reset Mileage Adjustment and Chip Reading with Free D1 & D2 Adapter Supports MQB 5A 5C 5D Clusters

CheShiTech.com CGDI CG100X New Generation Smart Car Programmer With Latest V1.8.6.0 CG100X Software New Update covers 90% of models and modules on the market Including engineering vehicles and motorcycles

What is CGDI CG100X Programmer:

CGDI CG100X Programmer is a new generate smart programmer from CGDI. CG100X will do airbag reset, mileage correction, eeprom & chip reading. It covers 90% of models and modules on the market, including American, German, French, European, Korean, Japanese, Italian, domestic series, as well as engineering vehicles and motorcycles.

CGDI CG100X Programmer Software Free Download

CGDI CG100X Programmer Support List:

CG100X Airbag Reset Vehicle List

CG100X Dashboard Vehicle List

CG100X ECU Vehicle List

CG100X BCM Vehicle List

CGDI CG100X Programmer Highlights:

1. Functions Including Airbag Reset, Mileage Adjustment, ECU and BCM Chip Reading
2. Support BMW and Land Rover Key match
3. Free Update for 1 Year, after one year, it will cost $89 per year. Device can still perform if you don’t want to pay for the update cost after the first year
4. Language: English/ Chinese
5. Check CG100X Latest Support List Version V1.8.6.0 Update on 2025.06.03
6. Please Check Comparison Table for CG100X, CG70 and CG100

	CG100X	CG100	CG70
Hardware
	The connection software requires a 12V power supply, and the use process is needed	The connection software does not require a 12V power supply, The use process is needed	The connection software requires a 12V power supply, and the use process is needed
Packing	Plastic suitcase	White Carton Box	Plastic suitcase
Annual fee	Free update for 1 year, update cost $89/year. Device can still work if don’t pay for update cost after the first year.	Free update for 1 year, update cost $89/year. Device can still work if don’t pay for update cost after the first year.	First year is free to use,  annaul fee is needed from the 2nd year
Language	English/Chinese	English/Chinese	English/Chinese
Features	1. Instrument adjustment 2. airbag repair 3. Body failure repair 4. BCM module read and write 5. Reading and writing of various non -encrypted chips 6. BMW Land Rover writes key	1. Instrument adjustment 2. airbag repair 3. Engine and computer read and write 4. BCM module read and write 5. Reading and writing of various non -encrypted chips	Mainly work for Airbag repairng, No Welding No Disassembly Get Free ECU Uncover Tool
Highlight	Hardware upgrade, read and write data faster and more stable The upgrade frequency is faster. 1. 8 -foot removal of adapter (CG100 Many customers ask) 2. CAN line communication (similar to CG70) 3. BMW Land Rover Key match (CG100 cancel KEY adapter) 4. Can support more chips, keep pace with the times, and have strong new MCUs. The adapter is upgraded. 5. BCM can be enhanced, for battery repair, and various types of common problems (steering angle), the future growth will be stronger. 6. All of the CPT wiring will be added (add 3-5K airbag model at a time), mainly for foreign models	Support multiple instrument and airbag repair BMW FRM repair Mercedes -Benz Porsche Battery Repair	No need to disassemble the airbags to repair the airbags without welding 1. Similar to the CPT device, the price is more competitive 2. The operation is easy, no need to disassemble the welding line 3. models are constantly upgrading
Support Models	A total of 1538 chips, 4600 instrument mileage, more than 4,500 ACUs, ECUs, BCM; Contact sales to get the support list	Support 1503 chip models, 4767 instruments, 4570 airbags, ECU, BCM Contact sales to get the support list	Support 3806 airbag models, continuously increasing (final 5000+); Contact sales to get the support list

7. Support auto repair commonly used engine computer, steering angle, FRM module, keyless entry module, audio amplifier, transmission computer, 48V light lithium battery, 12V lithium battery and other kinds of body computer
8. Get Free PRO V2 Harness and D1 MQB Adapter in Package.
9. Newly Released Porsche 12V Battery Solder-Free Adapter and BMW FRM Solder-Free Adapter

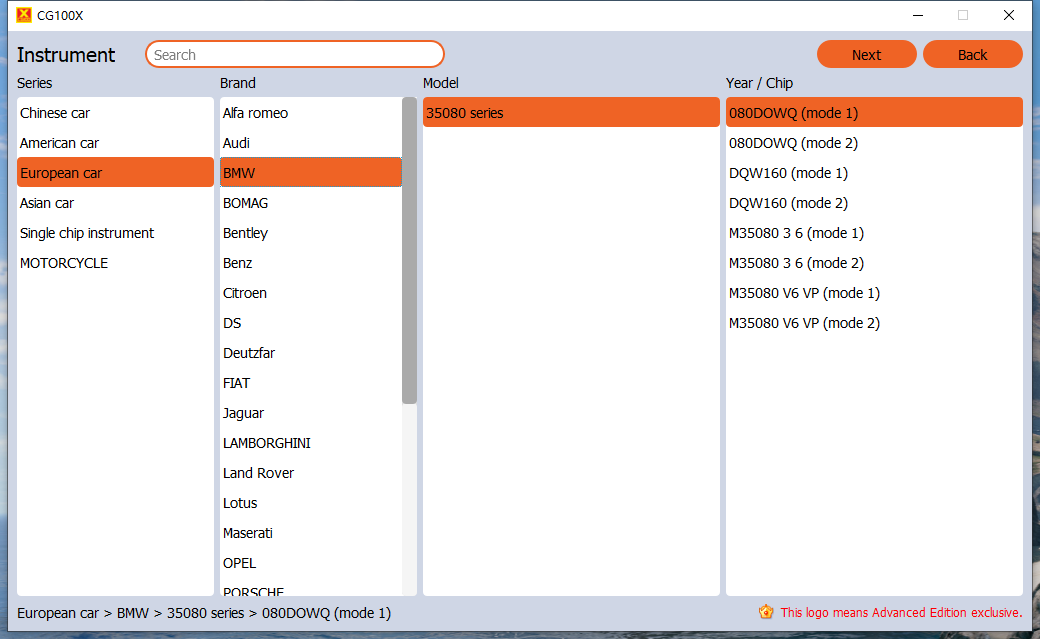

10. Work on BMW 35080 Series

10. Latest Update on March, 2024 to Support RH850 R7F701407

Notice:

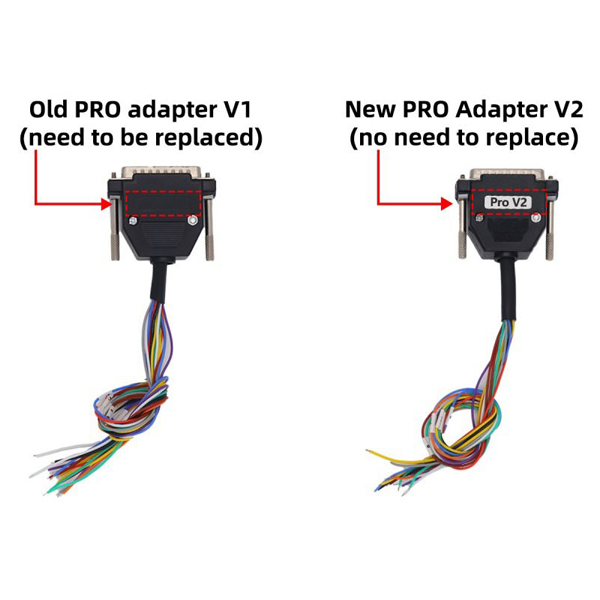

1. Please replace the PRO V1 harness with a PRO V2 harness free of charge. And the PRO V1 harness will have limited functionality.
Buy CG100X Now, Get Free PRO V2 Harness in Package.
2. If your CG100X was bought before year 2024 , PRO V2 Harness is free of charge and $29.99 is only the shipping cost.

CGDI CG100X Programmer Functions List:

1.Dashboard Mileage Repair
The software is embedded with intelligent algorithms, automatic analysis of mileage data, support for more than 4600 models, success rate of more than 95%, and keep up with the market, real-time upgrades in progress.

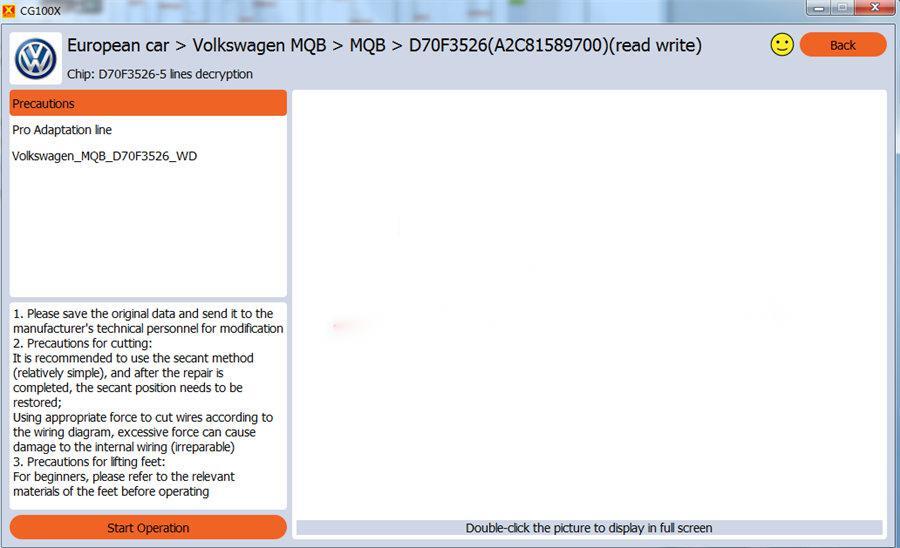

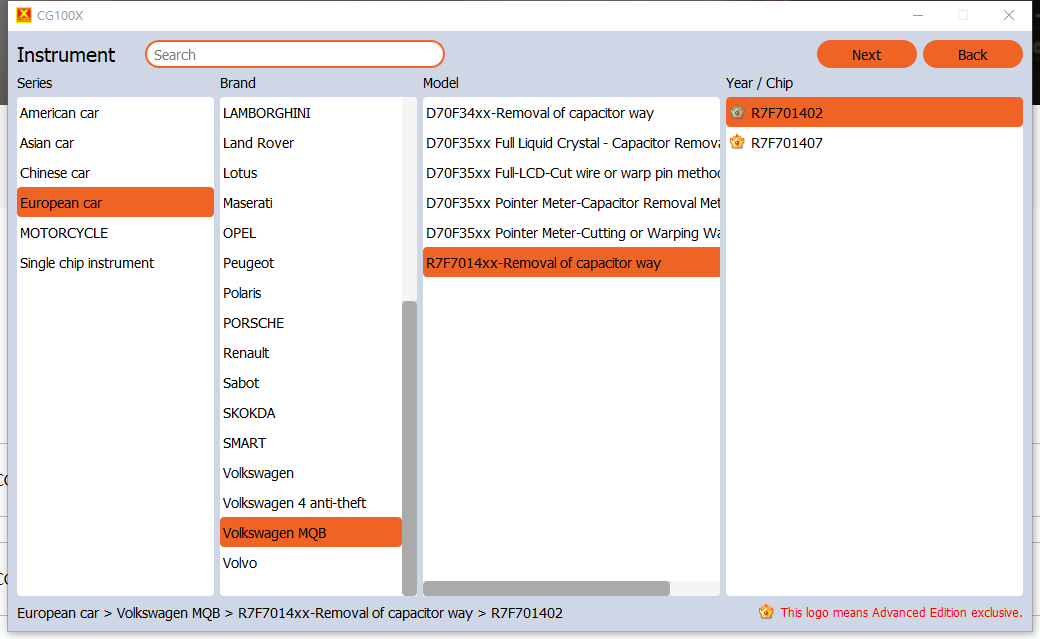

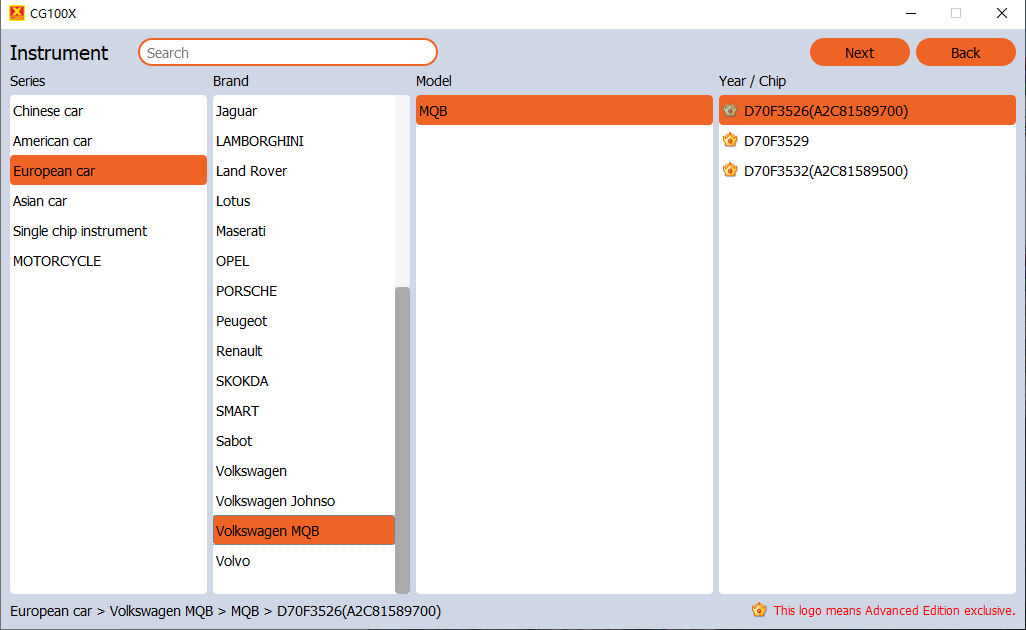

Moreover, it also supports VW MQB mileage repair, includes D70F3526 (A2C81589700) (read write), D70F3529 (read write), D70F3532 (A2C81589500) (read write).
Car models cover Golf, Magotan, Lavida, T-ROC, Tayron, Bora, Sagitar, Lamando, CC, Variant, Teramont, Skoda, Octavia, Kodiak and other models.

CGDI CG100X Programmer Operation:

Enter “Dashboard”function, select car series, brand, model and year/chip, double-click the year/chip you selected or click“Next”,  and you can see the related operation instructions (precautions, EEPROM adapter required and wiring diagram). Then click “Start Operation” to do step by step.

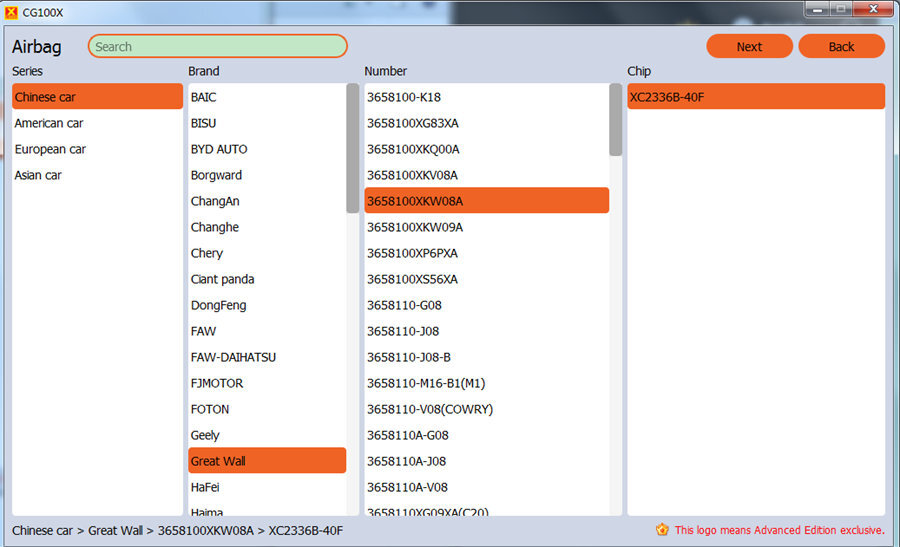

2. Airbag Reset
It contains more than 4,500 ECU models, dedicated to solving airbag failures, analyzing the cause of the light, perfectly clearing fault codes, and more models are continuously being added.

Operation:

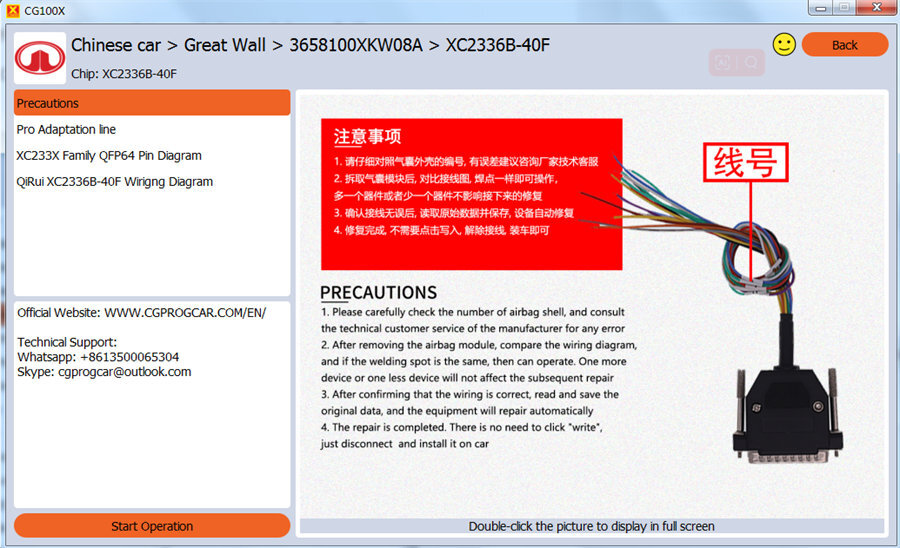

Run CGDI CG100X software Enter“Airbag”function, select car series, brand, number and chip, double-click the chip you selected or click“Next”, and you can see the related operation instructions (precautions, eeprom adapter or cable required and wiring diagram). Then click“Start Operation”to do step by step.

3. Body Control Module Repair
It’s specialized in automotive electronic fault repair, good at all kinds of common problems repair, support auto repair commonly used engine computer, steering angle, foot space module, keyless entry module, audio amplifier, transmission computer, 48V light lithium battery, 12V lithium battery and other kinds of body computer. A body computer provides vehicle data and assists repairmen in resolving vehicle failures.

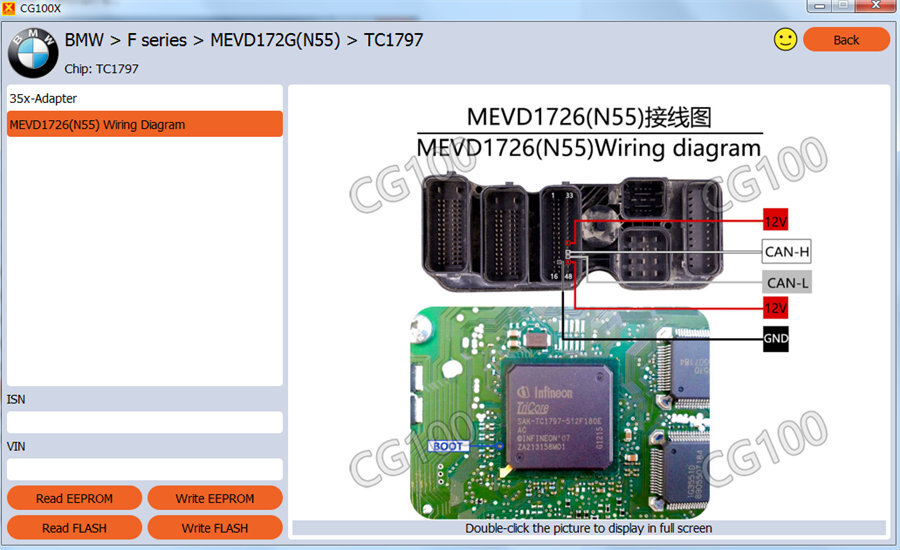

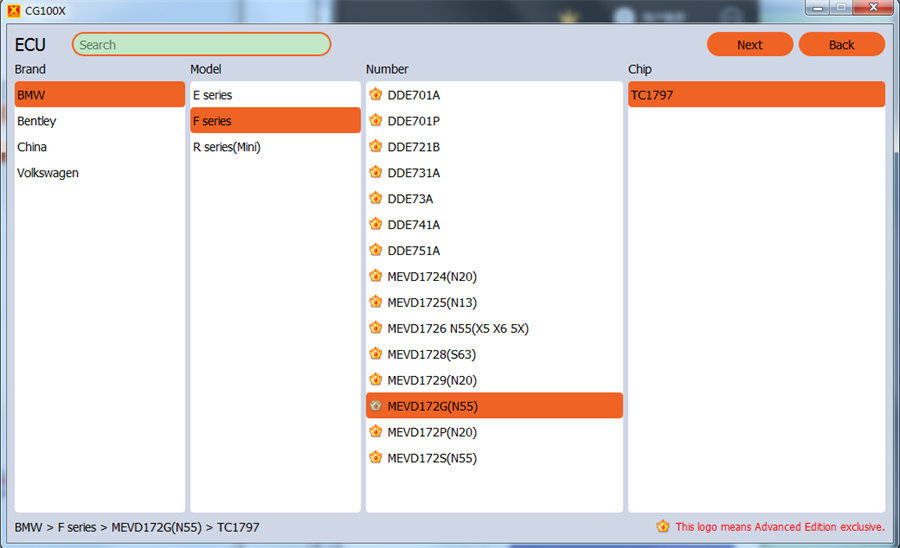

ECU Repair Operation:
Enter“ECU” function, select car brand, model, number and chip, double-click the chip you selected or click “Next”, and you can see the 35X-CAN Adapter required and wiring diagram. Then perform read eeprom, write eeprom, read flash and write flash.

BCM Operation:

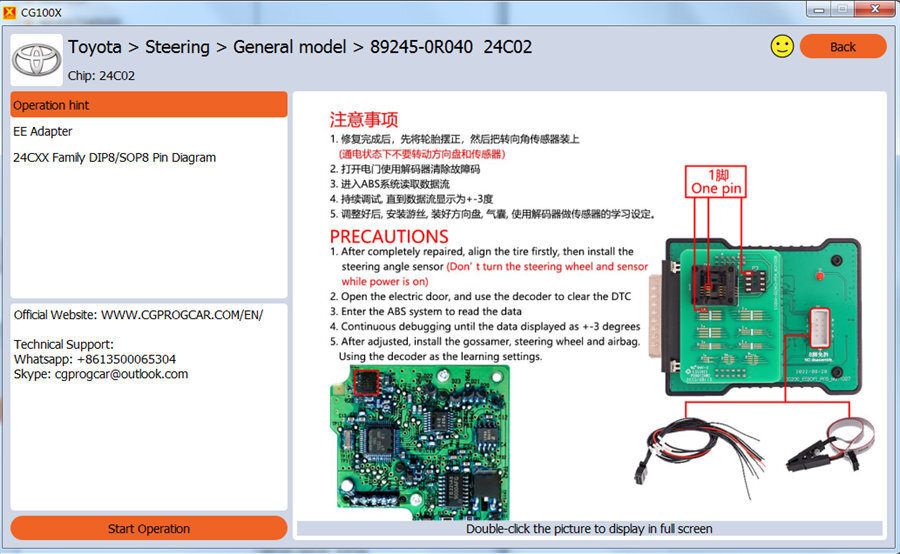

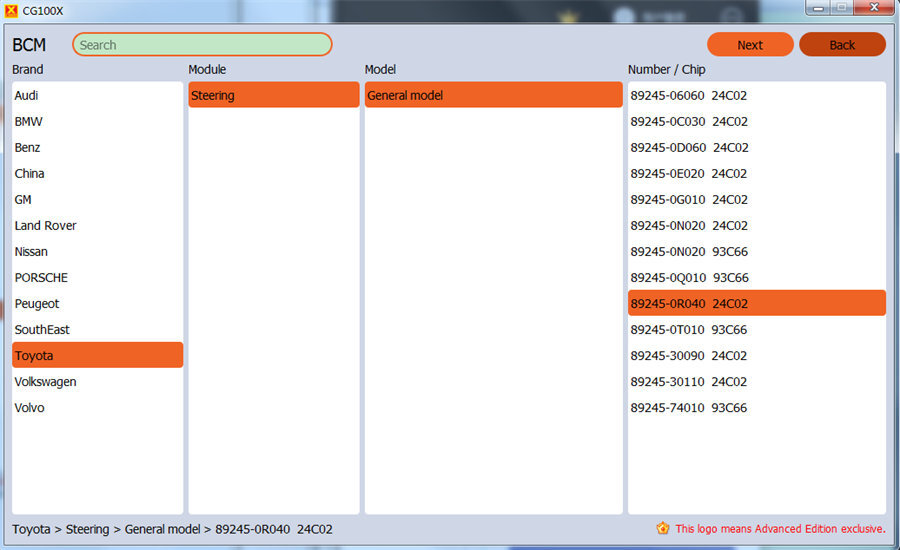

Enter“BCM”function, select car brand, module, model, and number/ chip, double-click the number/chip you selected or click “Next”, and you can check the precautions, Pro adaptation line required and wiring diagram. Then click “Start Operation” to do step by step.

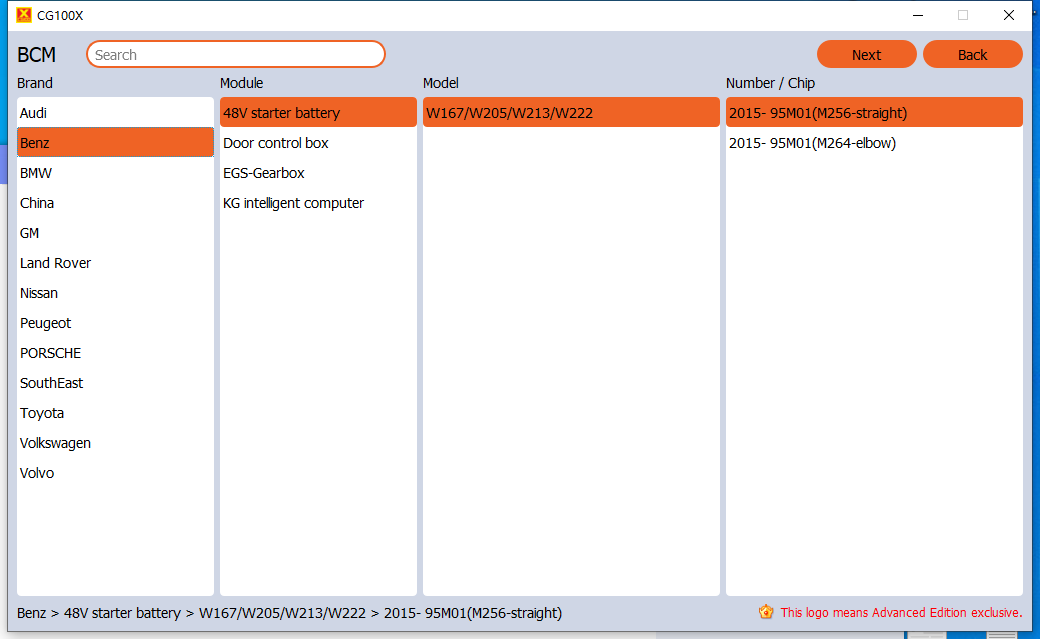

4. CG100X Support Mercedes Benz 48V Battery Auto Repair

5. Accessory Clone Replacement
Solve the pain points of the repair shop, a single device can replace accessories, data cloning, analysis and repair, one-click operation without asking for help.

6.Various Chip Data Reading and Writing
It covers more than 90% of car chips, and supports more than 1800 models read, modify, write, erase, partition and save, still can also analyze data with the browser that comes with the software.

Operation:
Enter“Programmer”function, select manufacturer, series and chip, double-click the chip you selected or click “Next”, and then you can see the pin diagram, and perform the function you want such as read data, write data, erase, etc.

Which EEPROM are supported by CGDI CG100X Programmer?

24 series, 25 series, 35 series, 93 series, 95 series, X50 series, S29 series, RH series, CAT10 series, CR series

Fujitsu
MB90 series, MB91 series, MB96 series

Microchip
PIC18F series

Texas Instruments (TI)
TMS series
NXP (NXP)
S32K1 series
Motorola/Freescale
9S08 series, 9S12 series, HC908 series, HC912 series, MAC series, MPC56 series
Atmel
ATMEGA series
Renesas
H8SX series, M32R series, R5F10D series, RH850 series, V850 series
Infineon
TC series, XC series
Saiyi Law (ST)
SPC series, ST10F series, STM32F series, STM8 series
Cypress/Spansion Semiconductor (Cypress/Spansion)
S6J series

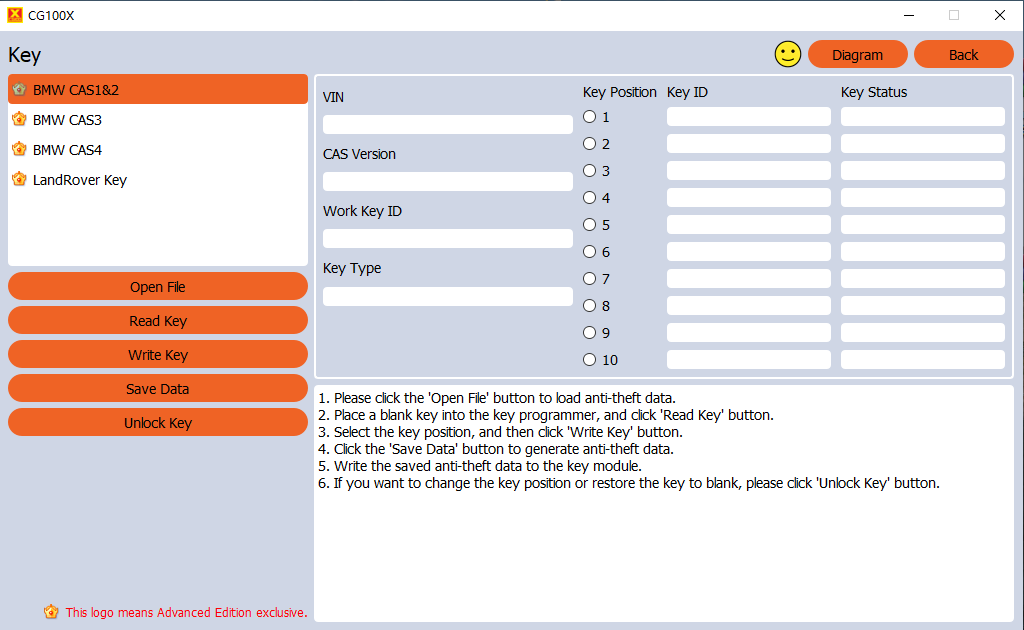

6. Key Function
CG100X programmer supports car key matching for BMW CAS series and Land Rover models, automatically displays key ID and usage status, and assists locksmiths to complete key matching work.

Operation:

Enter “Key” function, select BMW CAS series or LandRover key, and follow the on-screen instruction to do.

CGDI CG100X Programmer Features:

1. Top ten accessories, functional classification

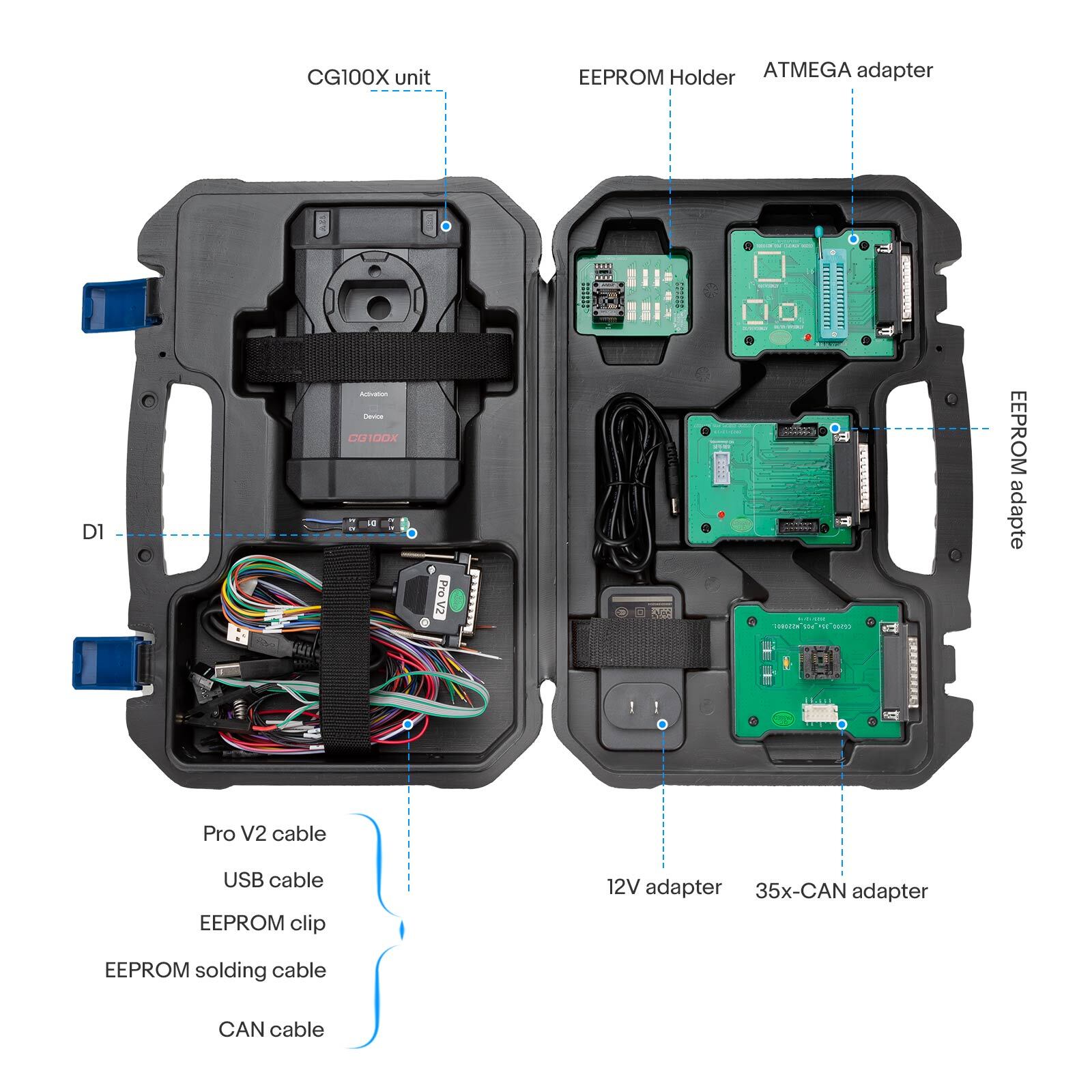

In addition to the main unit, it comes with 10 kinds of accessories, and the functions do not overlap; the DB25 connection method is used, which is more stable and safe; the wire number is clearly marked to avoid welding errors.

2. Reading and writing speed up, status monitoring
Compared with conventional programmers on the market, CG100X has an overall speedup of more than 120% for chip reading and writing, and some chips can reach 200%. The operation is monitored in real time to protect data and chips. For large-capacity eight-pin chips, the speed of reading and writing is increased by more than 500%, shortening the operation time, so that customers no longer have to wait, and truly achieve twice the result with half the effort.

3. Eight pins without dismantling, pin detection
Supports eight-pin chips without dismantling, avoiding the risk of back and forth soldering. Strong drive capability, free from communication interference. Provide pin detection, red means poor contact, green means good contact, visually display the pin status. It is more compatible with Honda instruments without dismantling, and provides wiring diagrams to avoid motor damage caused by disassembling the pointer. More disassembly-free
wiring diagrams are continuously added.

4. Intelligent algorithm, real-time upgrade
Automatic analysis of instrument kilometers, the error does not exceed 32Km, some hybrid models support modification of HEV+EV, engineering vehicles can modify working hours, and more than 50% of trucks provide fuel consumption modification.

Airbag Computer Reset Provides Two Solutions: Fault Clearing and Data Overwriting.
Fault clearing:
The original data is stored in the chip, and the fault code is clear, such as collision fault or air curtain fault. If you choose this repair method, only the relevant fault data in the chip will be cleared, and other data areas will not be
affected.

Data Coverage: When we are not sure how many jobs we have received and the data is not the most original, we can choose this repair method. After replacing all the data in the chip, a fault code may be reported due to the different configuration of the vehicle, and we need to reprogram and match. Focus on the development of R7F7 instrument, D70F instrument, SPC instrument and new airbag computer, so that 100% of the eight-pin chip can be disassembled, and is committed to covering 99% of the models and modules in the market.

5. Hardware upgrade, data loss prevention
Although CG100X and CG100 are different in one word, the equipment is completely different. CG100X adopts the industry’s ideal architecture design and is equipped with the world’s most advanced MCU. It is known as a fighter among single-chip computers, and its operation is more stable and safer. The advantages in hardware come from market demand. We attach great importance to customer feedback and suggestions. CG100X will support new modules and new chips more easily.

Adopting DB25 communication interface, compact design, stronger driving ability, OBD mode can be upgraded later, and supports CAN, LIN, K and other automotive communication protocols.

6. Easy access, automatic search
● Open the software without plugging in the device, which is convenient for viewing the vehicle model and functions;
● The car model search automatically matches special characters such as spaces and bars, regardless of case;
● The general programmer search mask directly displays the chip;
● In the list interface, click to enter and press Enter to enter;
● Support picture scaling, display file open/save path.

How to Do CGDI CG100X Programmer Register and Activate:

Step 1: Download and install the newest CG100X software
CG100X Software Free Download: https://mega.nz/folder/3CIXXDJC#jJ4CdJ9T-eEYhkBYi6Z65A
Follow the on-screen prompts to install software easily.

Step 2: Connect device
Connect CG100X to computer via the USB cable, and also connect with 12V 2A power supply

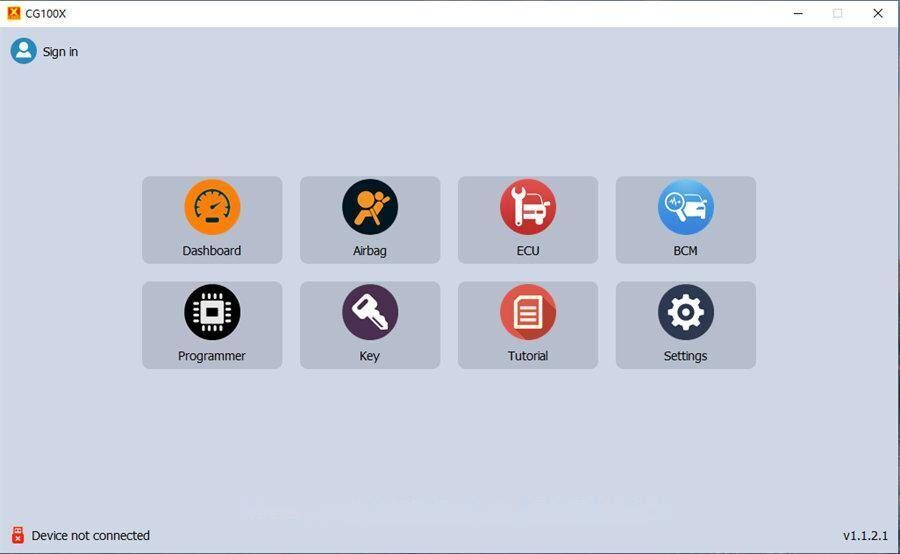

Open CG100X software, and you will receive the activation prompt “The device is not activated, cannot be used. Now activating the device will get 1 year free software upgrade and technicial support service. Do you want to continue?”Click OK to continue.

Step 3: Register CG100X account
“Before activation, please log in to your account and bind your device.”

If you have an account already from CGDI MB & CGDI BMW & CG PRO 9S12 & CG100, click OK and log in directly.
If you do not have an account, go to register an account. Click OK and choose “No account? Create one!”.

1. Recommend you to type these information (user name, password, name, phone number, and email address) on a text file and save it, copy them and paste into cg100X software when create account.
2. Recommend you to use simple user name and password, it is easy to remember in the future.
3. After filling all the information, click the “Submit” button. And the account is created successfully.
4. Copy your user name and password and log in. Then tool will be activated successfully.
5. If you cannot receive code by phone number or email address , please change the server connection area one by one and try again.

Step 4: Activate CGDI CG100X
After you create account successfully, then sign in with the available account.
After sign in successfully, click OK and click “Activate the Device Now”at the top of the page

Then you will get the message “Bind your device to your account, then activate. Please confirm to continue.”
Click OK

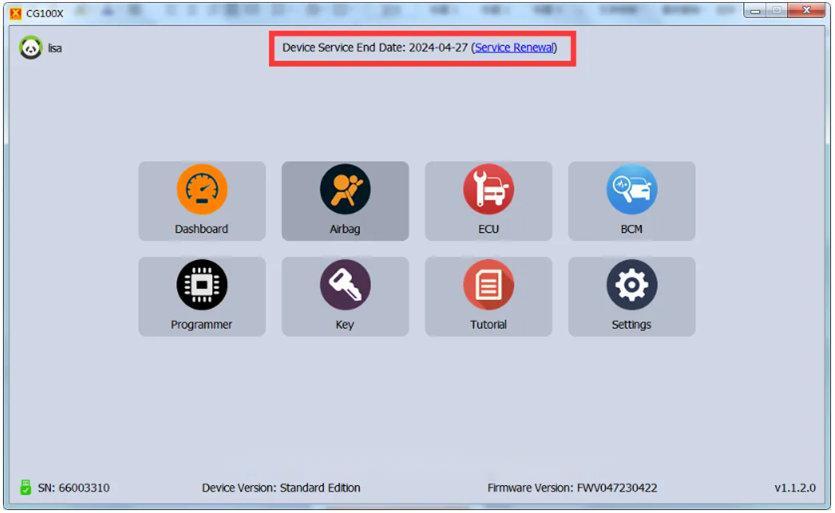

Now the activation is successful, and you can see the subscription time (device service end date).

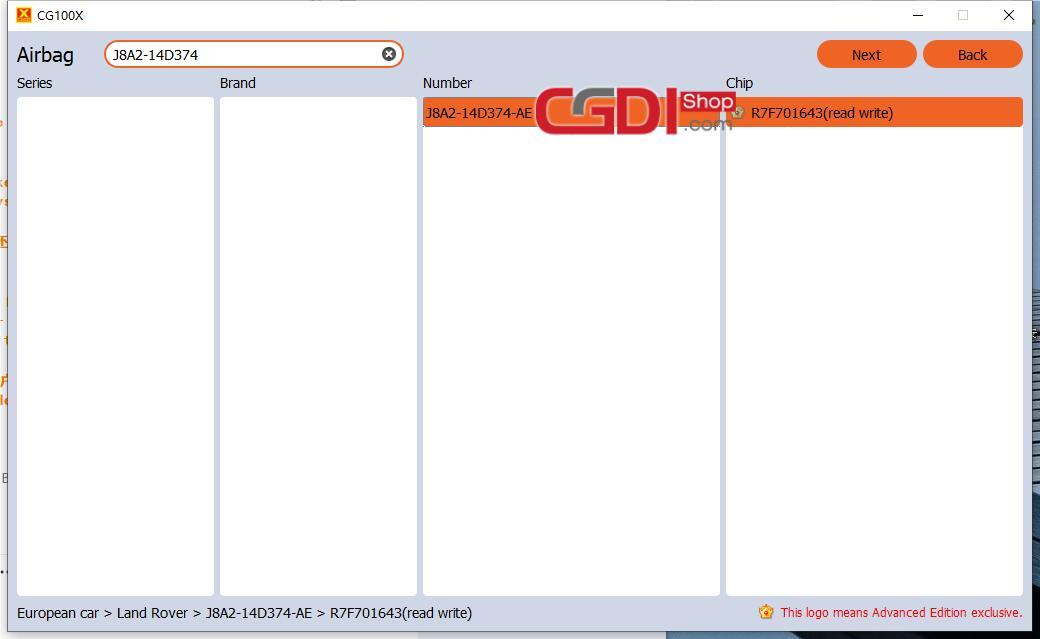

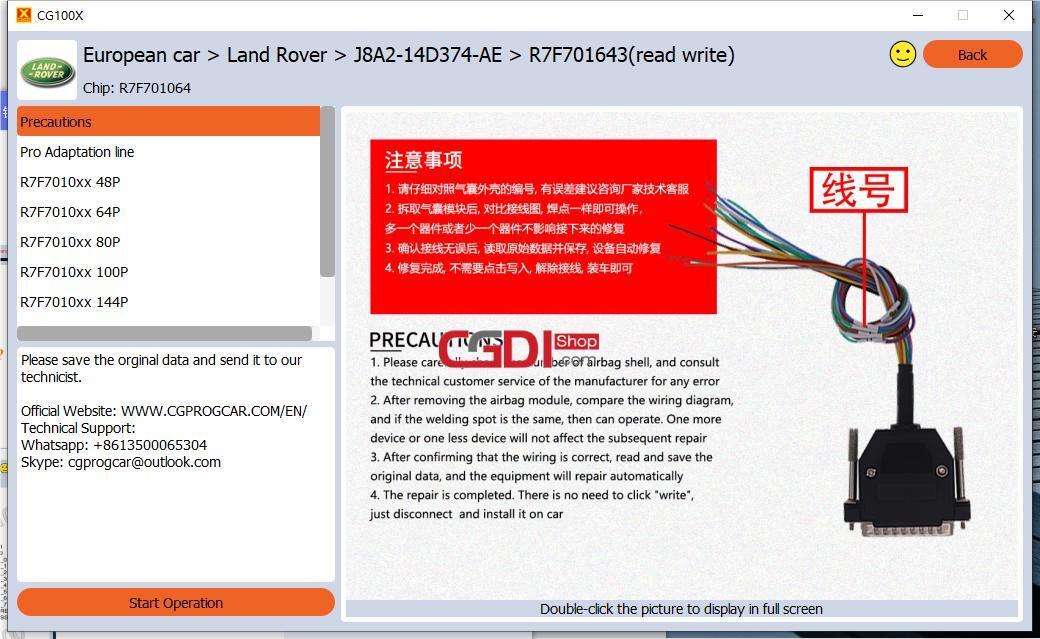

CG100X Works on 2018 Land Range Velar – J8A2 – 14D374 – AE Bosch 0285013879 Airbag:

CGDI CG100X Programmer Latest Update Information:

CG100X V1.8.6.0 (2025.06.03):
1. Added 22 models to dashboard.
2. Added 5 models to read-write.
Add Toyota Granvia 2023- S6J3001LSJ
Toyota CROWN 2023- S6J3001LSJ
Ford Escort 2021- R7F701408

CG100X V1.8.5.0 (2025.05.28):
1. Added 1 chip to Programmer.
2. Added 25 models to dashboard.
3. Added 1 models to read-write.
The following chips are added for Programmer.
9S12ZVCA192
The following models are added for dashboard.
Toyota Super bully 2019- S6J3001 CAN
Toyota AVALONlion 2019- S6J3001 CAN
Toyota AVALON 2018- S6J3001 CAN
Toyota AVANZA 2023- S6J3001 CAN
Toyota CAMRY 2018- S6J3001 CAN
Toyota CHR/IZOA(Yize) 2018- S6J3001 CAN
Toyota COROLLA 2018- S6J3001 CAN
Toyota Corolla Cross 2021- S6J3001 CAN
Toyota CROWNLUFANG 2018- S6J3001 CAN
Toyota Granace 2019- S6J3001 CAN
Toyota Granvia S6J3001 CAN
Toyota Harrier 2016- S6J3001 CAN
Toyota HIACE 2019- S6J3001 CAN
Toyota Highlander 2018- S6J3001 CAN
Toyota Levin 2019- S6J3001 CAN
Toyota Levin 2019- S6J3001 CAN
Toyota RAIZE 2023- S6J3001 CAN
Toyota RAV4 Rongfang 2019- S6J3001 CAN
Toyota Sienna 2019- S6J3001 CAN
Toyota TACOMA 2018- S6J3001 CAN
Toyota Venza 2019- S6J3001 CAN
Toyota VIOS 2023- S6J3001 CAN
Toyota WILDLANER 2019- S6J3001 CAN
Toyota YARiS S6J3001 CAN
Toyota Yaris 2019- S6J3001 CAN
The following models are added for dashboard read-write.
Land Rover L8B2-10C784-AJ 9S12ZVCA19V(0N25N)(read write)

CG100X V1.8.4.0 (2025.05.18):
1. Added 4 models to dashboard.
2. Added 7 models to airbag.
3. Added 3 models to Body repair.
4. Added 10 models to read-write.

CG100X V1.8.3.0 (2025.05.07):
Adds support for decrypting and repairing Toyota airbags covering 158 models with R7F701644/R7F701684 chips.

CG100X V1.8.2.0 (2025.04.30):

1. Added 17 models to dashboard.
2. Added 5 models to read-write.

CG100X V1.8.1.0 (2025.04.21):
1. Added 19 models to dashboard.
2. Added 3 models to airbag.
3. Added 6 models to read-write.

CG100X V1.8.0.2 (2025.04.12):

The following models are added for dashboard.
AIMA A05 24C02
Benz A class(W177) 2020- R7F701403(HU6)(encrypted)
Benz B class(W243) 2020- R7F701403(HU6)(encrypted)
Benz EQA(H243) 2020- R7F701403(HU6)(encrypted)
Benz EQB(X243) 2020- R7F701403(HU6)(encrypted)
Benz CLA(C118) 2020- R7F701403(HU6)(encrypted)
Benz CLA(H247) 2020- R7F701403(HU6)(encrypted)
Benz GLS(W167) 2020- R7F701403(HU6)(encrypted)
Benz E class(W238) 2020- R7F701403(HU6)(encrypted)
Benz GLB(X247) 2020- R7F701403(HU6)(encrypted)
Benz CLS(W257) 2020- R7F701403(HU6)(encrypted)
Benz AMG GT X290 2020- R7F701403(HU6)(encrypted)
Benz R class(R232) 2022- R7F701403(HU6)(encrypted)
Honda XR-V 2023- S6J300Y
Dayun ZiXieChe MB96F696R
Volkswagen 4 anti-theft Johnso D70F34xx-Removal of capacitor way 2015-2020 D70F3423+95320 (D2-Adapter)
DongFeng RuiChi S513 R5F10DSLL
DongFeng Tianjin 212 24C04
DongFeng 704Tractor 95160
DongFeng T5 R5F10DLxxx
SouthEast V5 Lingzhi 2016- 9S12XHY128
Toyota Land Cruiser L300 93C66
Guangtong auto Gree Titanium 2022- 24C16
Suzuki Suzuki DK-HJ150-S 93C66
etc

CG100X V1.7.9.0 (2025.03.31):
1. The instrument mileage function adds 16 vehicle models;
2. The airbag repair function adds 3 vehicle models;
3. The read-write function adds 7 vehicle models.

CG100X V1.7.8.0 (2025.03.25):
1. Added 22 models to dashboard.
2. Added 2 models to airbag.
3. Added 3 models to read-write.
Honda Motor PCX160 2022- 24C04
Toyota LAND CRUISER 200 2023- 24C16
Toyota RAV4 Rongfang 2024- R7F701401

CG100X V1.7.1.0 (2025.01.20):

V1.7.1.0
1. Added 27 models to dashboard.
2. Added 5 models to airbag.
3. Added 5 models to read-write.

The following models are added for dashboard.
BAIC RUIsheng wangpaiM7 2023- 24C16(Blue board)
BAIC Kari Road F7 2023- 24C16
Benz A-class(W247) 2019- R7F701403(encrypted)
Benz B-class(W247) 2019- R7F701403(encrypted)
Benz CLA(W247) 2019- R7F701403(encrypted)
Benz GLA(W247) 2019- R7F701403(encrypted)
Benz GLB(W247) 2019- R7F701403(encrypted)
Benz GLE(W167) 2019- R7F701403(encrypted)
Benz E-class(W213) 2020- R7F701403(encrypted)
Benz CLS(W213) 2020- R7F701403(encrypted)

V1.7.0.0
1. Added 43 models to dashboard.
2. Added 2 models to airbag.
3. Added 11 models to read-write.
Volkswagen MQB R7F7014xx-Removal of capacitor way R7F701421(Only 5D Meters)
Toyota BZ4/BX4 R7F701441
Toyota Platinum 4X R7F701441
Toyota frontlander R7F701441
Toyota COROLLA R7F701441
Toyota Levin R7F701441

V1.6.4.0
(2024.11.26)
1. Added 20 models to dashboard.
2. Added 16 models to airbag.
3. Added 4 models to read-write.
Adds
Volkswagen MQB R7F7014xx-Removal of capacitor way R7F701404 (Only 5D Meters)
Volkswagen MQB R7F7014xx-Removal of capacitor way R7F701401 (Only 5D Meters)

V1.6.0.0
(2024.10.16)
1. Volkswagen MQB adds 2 new R7F7014xx mileage repair models.
2. Added 28 models to dashboard.
3. Added 1 models to read-write.

Volkswagen MQB-R7F7014xx supports the following models.
Volkswagen MQB R7F7014xx-Removal of capacitor way R7F701404 (Only 5C Meters)
Volkswagen MQB R7F7014xx-Removal of capacitor way R7F701406 (Only 5C Meters)

CGDI CG100X Programmer Package List:

1pc x CG100 Hardware
1pc x EEPROM Holder
2pcs x EEPROM Adapter
1pc x 35X-CAN Adapter
1pc x 12V Power Adapter
1pc x USB Cable
1pc x CAN Cable
1pc x EEPROM Soldering Cable
1pc x EEPROM Clip
1pc x PRO V2 Cable
1pc x D70F34xx/D70F35xx Adapter
1pc x CG100X D1 Adapter
1pc x CG100X PRO V2 Harness

CheShiTech.com— China OBD2 Tool, Automotive Diagnostic Tools, Car Key Programmer, OBD2 ECU chip tuning tool Center.

Contact information:

Website: https://www.cheshitech.com
Email: chinaobd2store@gmail.com
Skype: sales-obd2store@outlook.com
Whatapp/Wechat: +86-19870637508/+86-13691674080
https://api.whatsapp.com/send?phone=8619870637508
https://api.whatsapp.com/send?phone=8613691674080
