Launch x 431 ECU & TCU Programmer Standalone Cloning Device Launch X-431 ECU & TCU Programmer Standalone PC Version for 2D Menu ECU Data Reading/Writing Supports Checksum Correction, IMMO Off

描述

Launch x 431 ECU & TCU Programmer Standalone Cloning Device can supports Data Processing, anti-theft shutdown and file verification and read various vehicle brand ECUs info. Launch X-431 ECU & TCU Programmer Standalone PC Version for 2D Menu ECU Data Reading/Writing Supports Checksum Correction, IMMO Off. CheShiTech.com 2024 Launch X431 ECU & TCU Programmer With engine data validation function Support 1 years update online Adds immo off function for MEDC17 ECUs.

---

Launch x 431 ECU & TCU Programmer Standalone Cloning Device Launch X-431 ECU & TCU Programmer Standalone PC Version for 2D Menu ECU Data Reading/Writing Supports Checksum Correction, IMMO Off

CheShiTech.com 2024 Launch X431 ECU & TCU Programmer With engine data validation function Support 1 years update online Adds immo off function for MEDC17 ECUs

The X-431 ECU & TCU Programmer supports ECUs data reading & writing quickly, including reading the chip ID and backing up the EEPROM data, backing up the FLASH data and restoring EEPROM/FLASH data.

There are two methods to read various vehicle brand ECUs info. The X-431 ECU & TCU Programmer also supports Data Processing, anti-theft shutdown and file verification.
Launch x 431 ECU & TCU Programmer Standalone Cloning Device Features:

1. ECUs Data Reading & Writing quickly.

· Support two methods to read various vehicle brand ECUs info.

· Support Read the chip ID and Back up the EEPROM data.

· Support Back up the FLASH data and Restore EEPROM/FLASH data.

· Adds immo off function for MEDC17 ECUs

· Supports checksum correction

· Supports VAG MEDC17 ECU Clone,
VAG Simos 8.5-8.6 Clone,
Porsche Simos 8.5 clone,
Porsche SDI-6-7-8 Clone.

2. Support Data Processing, anti-theft shutdown and file verification.

3. 1 Year Free Update, $299 per year later. Must renew license after it expires, otherwise it cannot calculate data online.

4. Supports 2014- FBS4 Engine ECU cloing
Supports 2014- FBS4 DSM virgin and write IMMO
Supports 2014- FBS4 FDCT VGS NAG3 cloning, VGS4 NAG2 virgin and write IMMO

5. Current adapter accessories as below:

· X-PROG3 Adapter Cable 1 (DQ200XX)

· X-PROG3 Adapter Cable 2 (VL381)

· X-PROG3 Adapter Cable 3 (DQ380)

· X-PROG3 Adapter Cable 4 (DQ250)

· X-PROG3 Adapter Cable 5 (DL501)

· X-PROG3 Adapter Cable 6 (DL382)

· X-PROG3 Adapter Cable 7 (VGS-NAG3)

· X-PROG3 Adapter Cable 8 (VGS2-FDCT/VGS-FDCT)

· X-PROG3 Adapter Cable 9 (VGS3-NAG2)

· X-PROG3 Adapter Cable 10 (8HP_V1(BMW/LR)/8HP_V2/8HP_V3)

· X-PROG3 Adapter Cable 11 (MPS6)

· X-PROG3 Adapter Cable 12 (DPS6)

· X-PROG3 Adapter Cable Main Line (ML)

Download Launch ECU Programmer Software:

https://en.cnlaunch.com/products-detail/i-243.html

Drop down and click “Download”

Software language: English, German, Japanese, Russian, French, Portuguese, Korean, Italian, Arabic, Traditional Chinese

Select the corresponding language setup to install.

ECU Programmer Standalone vs. X-prog3 + X431 Tablet

1. VW Audi Porsche clone function is in data processing section
2. The connection is more convenient
3. Data reading and writing speed is faster and more stable (3x times faster)
4. Data processing and transfer on PC are more convenient
5. Adds immo off function
6. Standalone version cannot do key programming.

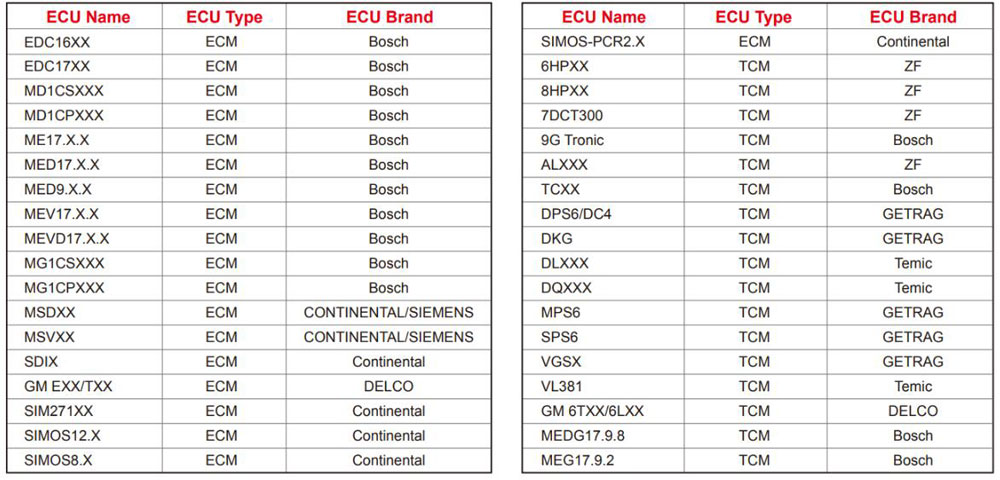

Launch x 431 ECU & TCU Programmer Standalone Cloning Device Supported ECU List:

How to use Launch ECU TCU Programmer PC Software?

Connect the ECU Programmer to the computer using a cable, run PC software.

The serial number will be automatically recognized from the ECU programmer. The activation code needs to be obtained from the envelope of the ECU programmer.

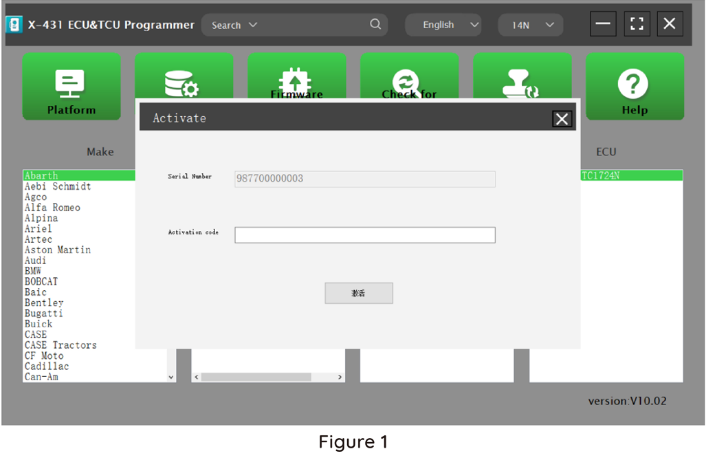

Click [Activation] (only once, no need to activate it again later), as shown in Figure 1

physical connection example



Read and Write ECU

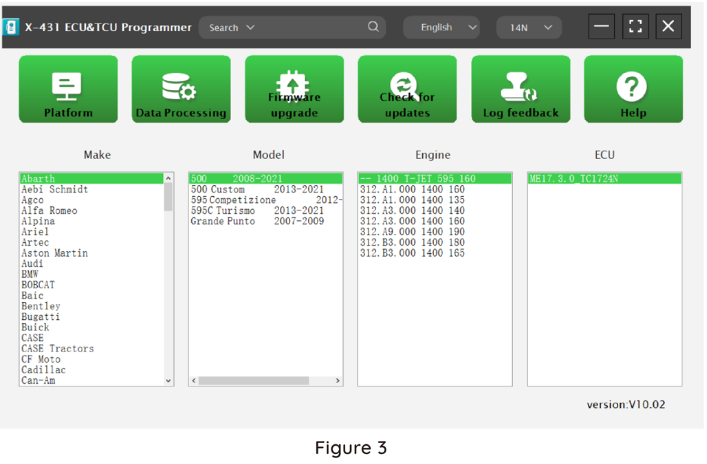

1). Method 1: Obtain the desired ECU type through brand>model>engine>ECU in turn, as shown in Figure 3.

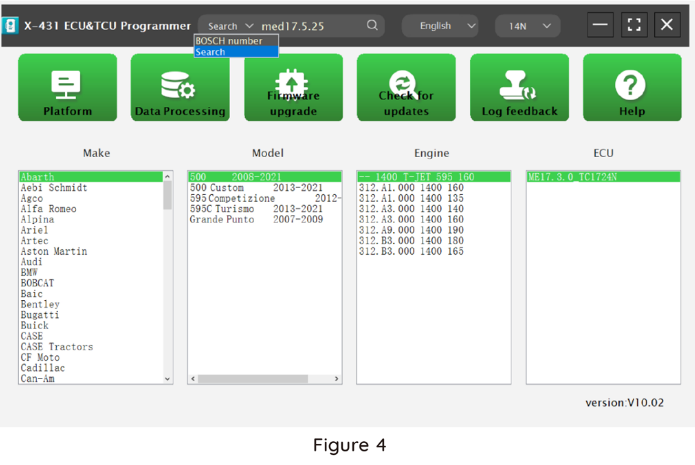

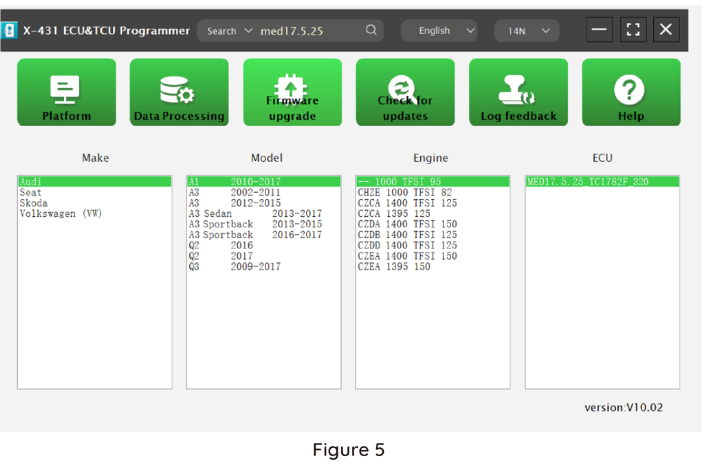

2) Method 2: Query the desired ECU by entering a value in the search box. The search categories include brand, Bosch number and ECU type. For example, search for the MED17.5.25 engine by ECU type, as shown in Figure 4.

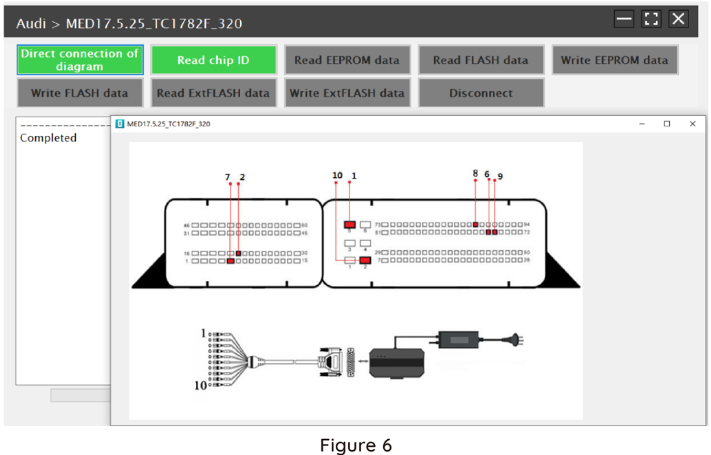

Click [Direct Connection Diagram] to obtain the ECU connection diagram, as shown in Figure 6.

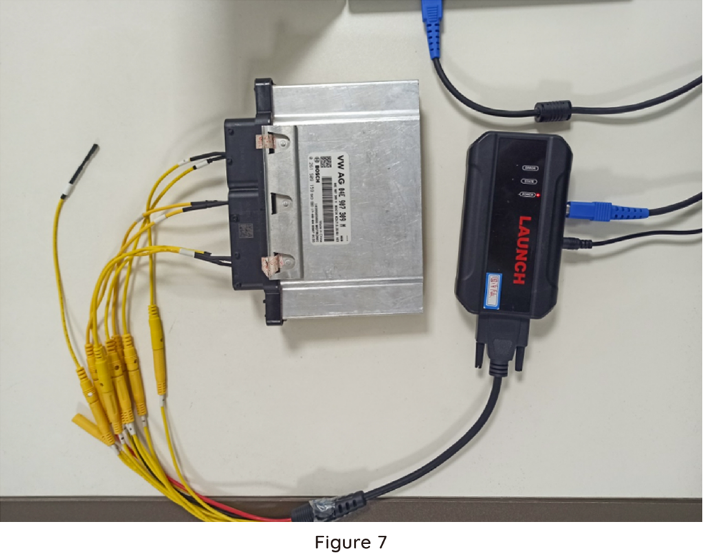

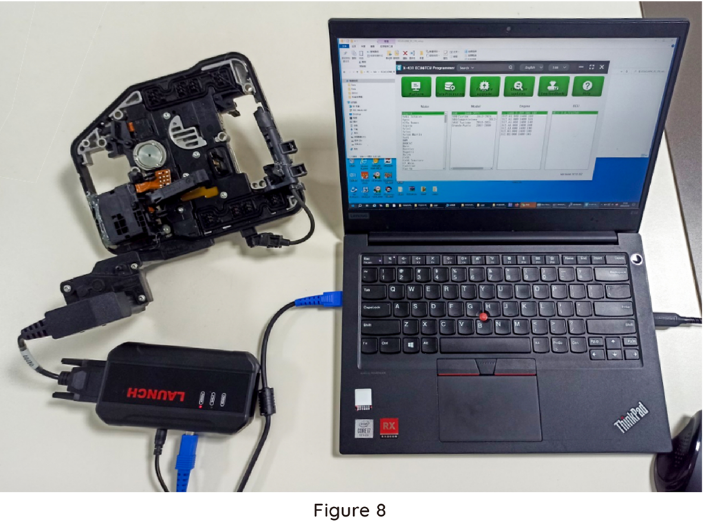

Connection: Connect the ECU and ECU Programmer according to the information provided in the connection diagram. The physical connection diagram of MED17.5.25 (using the BENCH mode line) is shown in Figure 6, and the physical connection diagram using the gearbox adapter is shown in Figure 7 and 8.

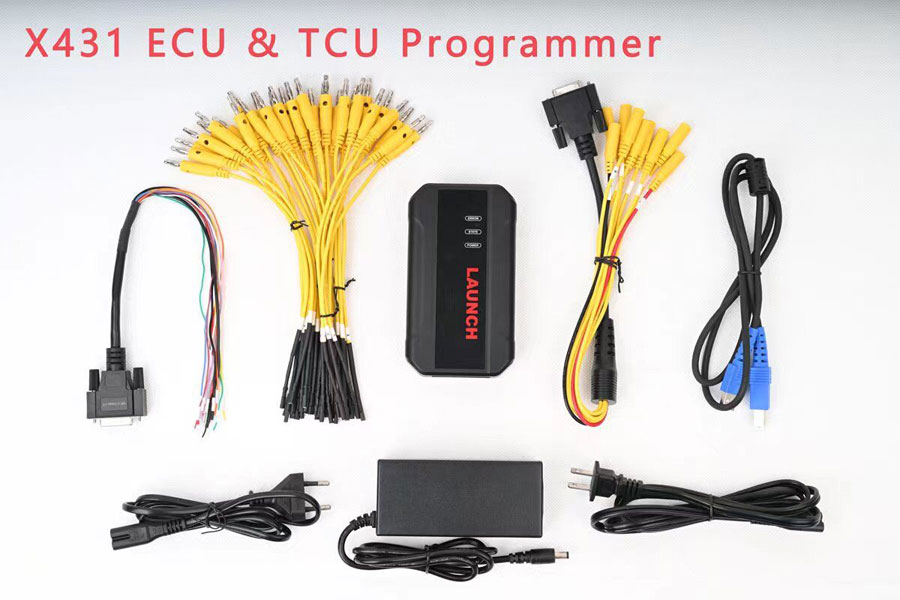

Package List:
1pc x LAUCH X431 ECU Programmer host
1pc x jumper
1pc x MCU cable
1pc x EU adapter
1pc x US adapter
1pc x power supply cable
1pc x USB cable
Optional gearbox adapters (purchase alone)



Recent Update:
Jan. 13th, 2025
V10.40

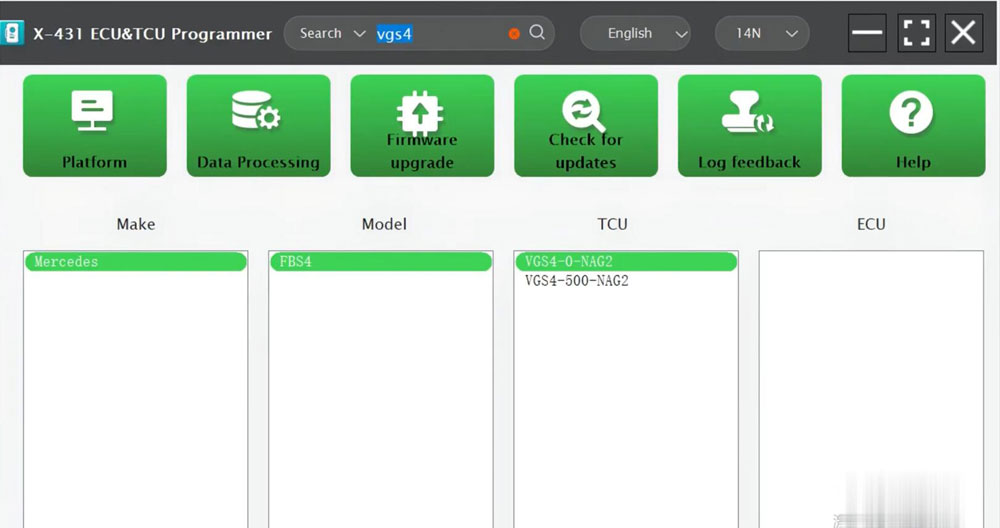

1. Added read and write, personalization, clearing function for BOOT mode Benz transmission TCU VGS4-0-NAG2, VGS4-500-NAG2.
2. Added BENCH mode Cadillac, Chevrolet transmission ECU T87A read and write function.
3. Added read and write function for BENCH mode Great Wall transmission ECU 7DCT450.
4. Added read and write function for BENCH mode Great Wall, Geely engine ECU MG1US008/MG1UA008.
5. Optimized BMW E83 data read issue.
6. Optimize the expired device usage status so that when the device is expired, the functions released before the expiration can still be used. New updates are restricted to download when the free subscription has expired

Oct. 30th, 2023
Adds Engine data validation function (Oct. 30th, 2023)
