Allsun EM415PRO Automotive Circuit Tester Allsun EM415PRO Automotive Electrical Open Short Finder DC 6~42 Volts with Bendable Receiver Probe Checking for short circuit,Loating open circuit,Wire identification, Wire traceing etc

描述

Allsun EM415PRO Automotive Circuit Tester designed to identify and trace wires or cables without damaging the insulation. Allsun EM415PRO Automotive Electrical Open Short Finder DC 6~42 Volts with Bendable Receiver Probe Checking for short circuit,Loating open circuit,Wire identification, Wire traceing etc. CheShiTech.com Allsun EM415PRO Short Detector Allsun EM415PRO Automotive Circuit Breaker Tester for DC 6-42V, Car Electrical Diagnostic Tool with Flexible Probe, Wire Break Locator and Short Finder.

Allsun EM415PRO Automotive Circuit Tester Allsun EM415PRO Automotive Electrical Open Short Finder DC 6~42 Volts with Bendable Receiver Probe Checking for short circuit,Loating open circuit,Wire identification, Wire traceing etc

CheShiTech.com Allsun EM415PRO Short Detector Allsun EM415PRO Automotive Circuit Breaker Tester for DC 6-42V, Car Electrical Diagnostic Tool with Flexible Probe, Wire Break Locator and Short Finder

EM415PRO Automotive Short Circuit Finder Tool Application:  Checking for short circuit,Loating open circuit,Wire identification, Wire traceing,etc.

Allsun EM415PRO Automotive Short And Open Finder Description:

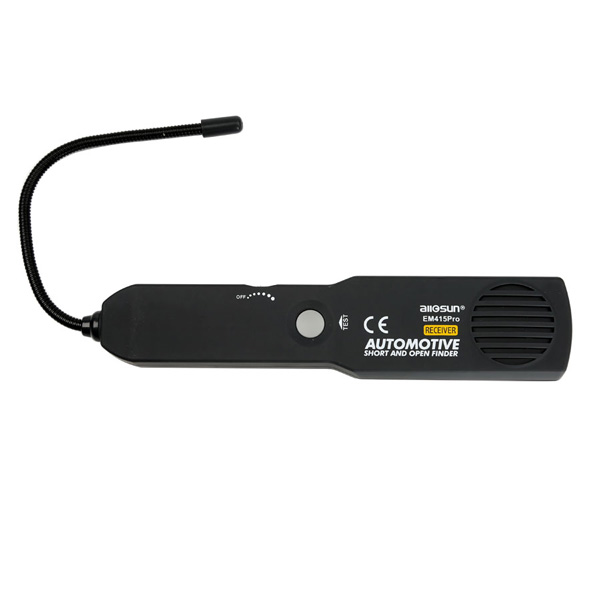

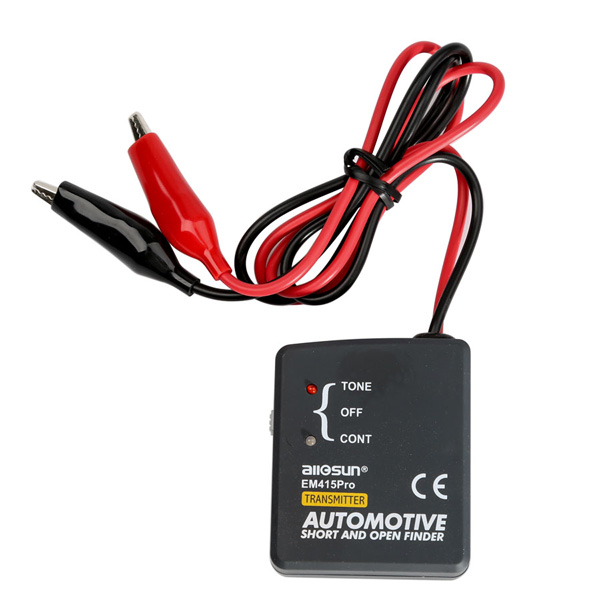

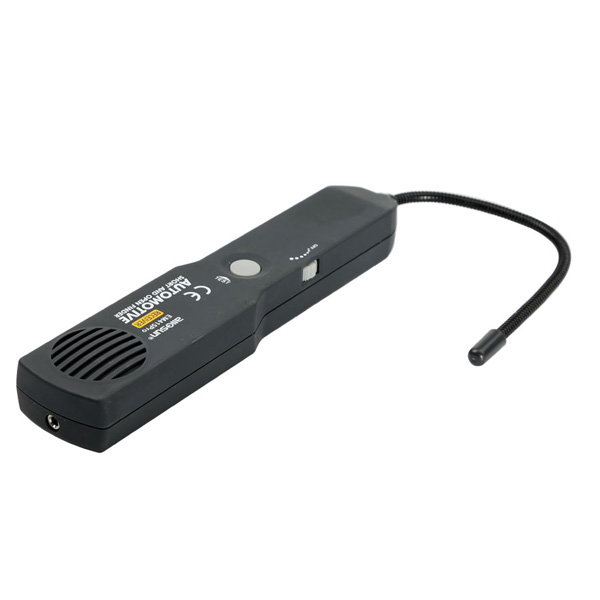

This instrument is designed to identify and trace wires or cables without damaging the insulation. You can also use it in checking short circuit and loacting open circuit and so on. There are a Sender and a Receiver included in the instrument.

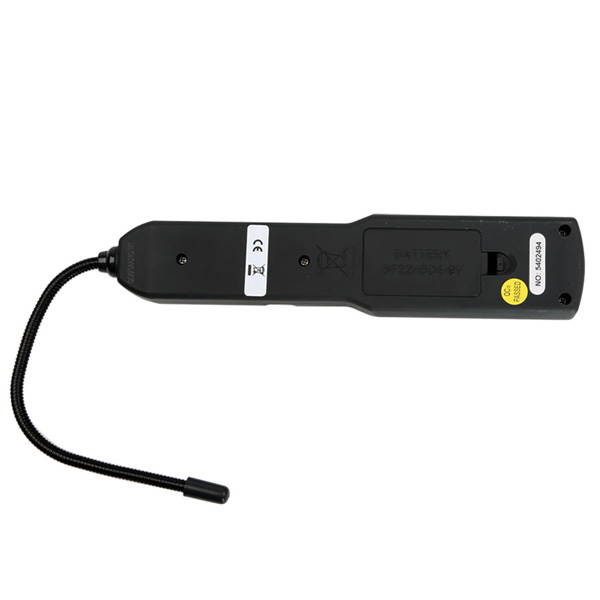

The cable wire tracker needs to install 2 X 6F22,9V batteries, one is for the receiver, the other is for the sender which is not included for safety transportation.

EM415PRO Automotive Circuit Tester Function:

Tracing of wires is made possible even inside bundles, conduits, behind panels, under carpets, upholstery, etc
Easy to use: simply connect the transmitter in series with the circuit or wire under test, (i.e.: in place of a blown fuse, across a connector, in series with an open wire, a light bulb socket, etc.), and scanning the circuit/wire with the tracers flexible probe to find the trouble spot
42 V Ready: for use in the new generation of vehicles with mixed or single 42 Volt systems
Operates on DC voltages from 6 to 42 volts
Internally protected against power surges and overloads
7″ flexible probe allows reaching wires in congested places
Transmitter and Receiver LEDs show open or short circuit conditions
Adjustable sensitivity for all tracing situations
No wire piercing required, non-contact technology!

How to use Allsun EM415PRO Best Automotive Wire Tracer probe?

The probe of the Receiver is built of coiled steel and may be bent as needed, in order to reach wires in ongested or difficult areas. Depending on the circuit characteristic and sensitivity settings, the probe will pick up the signal from the wire in a range of positions. However, for the best possible range the Receiver’s probe tip (black cap) should be positioned perpendicular (at 90o) to the wire being traced and either above or below it.

Caution

1.Only for us on DC voltage,don’t connect to circuit exceedomh 42 volts DC under any circumstances
2.Do not use on AC voltage
3.Do not use on any circuit directly or indirectly connected to AC lines or any other AC power source
4.Do not use with any component or circuits of the ignition system
5.Before using this device,check the vehicle’s electrical wiring and disconnected any part or system sensitive to
voltage and current pulses such as air bags,electronic control modules,etc
6.After you finish checking vehicle,make sure you have correctly restored all the connections which you disconnected
7.Always follow the instructions and procedures indicated in the vehicle’s service manual before attempting to disconnect any part of subsystem of theelectical circuit

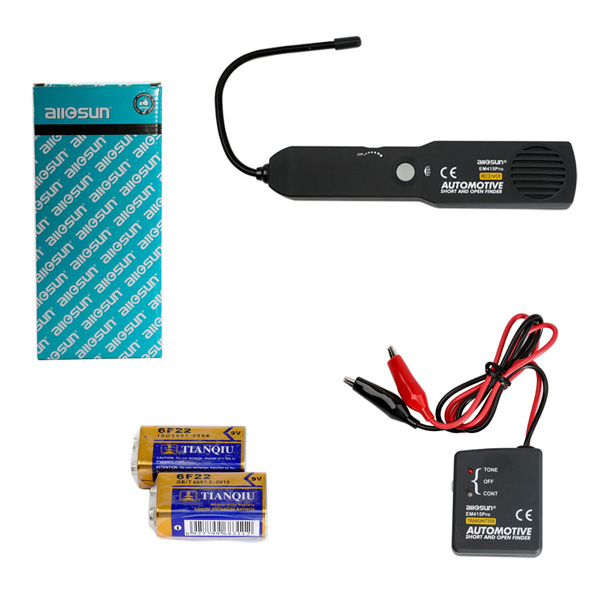

EM415PRO Automotive Short Circuit Finder Tool Package:

1 x Automotive Short and Open Finder Sender
1 x Automotive Short and Open Finder Reciever

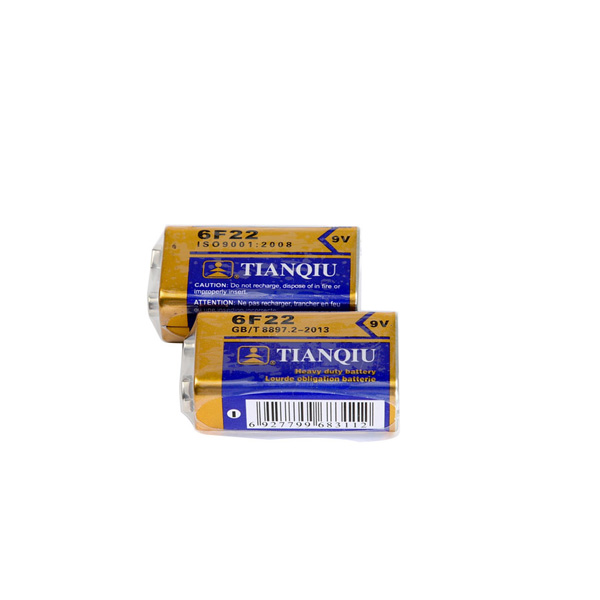

2 x 9V,6F22 Battery

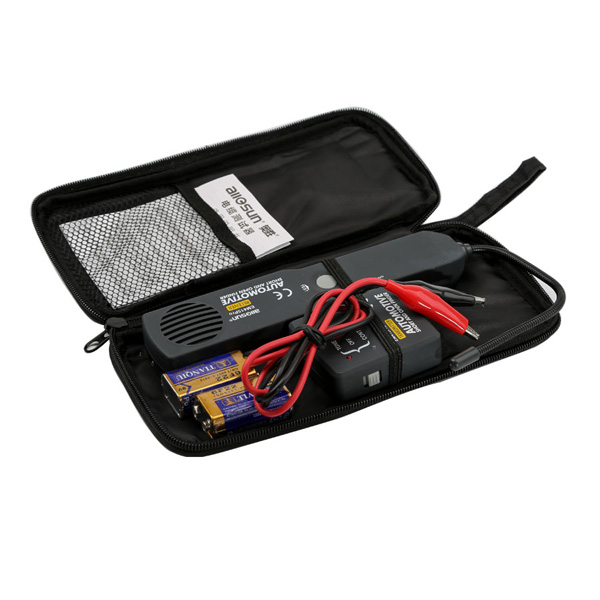

1 x Carrying Pouch
1 x English Allsun EM415PRO Automotive Short And Open Finder User Manual
