AUTOOL BT270 Leakage Current Test Clamp BT270 AC DC Low Current Camp Meter LCD Display Support Automatic AC/DC Recognition with 99 Data 0mA~60A AC/DC
$79.99
AUTOOL BT270 Leakage Current Test Clamp can perform leakage current measurements, including DC leakage measurement, AC leakage measurement, ground leakage measurement, and main line current measurement. BT270 AC DC Low Current Camp Meter LCD Display Support Automatic AC/DC Recognition with 99 Data 0mA~60A AC/DC. CheShiTech.com AUTOOL BT270 Digital leakage current tester (clamp meter) BT270 Handheld Current Measure Clamp With LCD Display Screen & One Button Zeroing And Data Lock and Storage Functions.
- 描述
- 其他信息
- 用户评价 (2)
描述
AUTOOL BT270 Leakage Current Test Clamp can perform leakage current measurements, including DC leakage measurement, AC leakage measurement, ground leakage measurement, and main line current measurement. BT270 AC DC Low Current Camp Meter LCD Display Support Automatic AC/DC Recognition with 99 Data 0mA~60A AC/DC. CheShiTech.com AUTOOL BT270 Digital leakage current tester (clamp meter) BT270 Handheld Current Measure Clamp With LCD Display Screen & One Button Zeroing And Data Lock and Storage Functions.
AUTOOL BT270 Leakage Current Test Clamp BT270 AC DC Low Current Camp Meter LCD Display Support Automatic AC/DC Recognition with 99 Data 0mA~60A AC/DC
CheShiTech.com AUTOOL BT270 Digital leakage current tester (clamp meter) BT270 Handheld Current Measure Clamp With LCD Display Screen & One Button Zeroing And Data Lock and Storage Functions
AUTOOL BT270 handheld digital current clamp employs state-of-the-art digital integration technology, offering exceptional features such as automatic detection of AC/DC without the need for manual mode switching and one-touch zeroing without the hassle of manual knob adjustments. It also excels in non-contact measurements,compact design, high precision, robust interference resistance, fully automated range switching,rapid operation, and a commitment to safety and reliability.
AUTOOL BT270 no-stripping current tester is a precision-crafted instrument tailored for the precise measurement of automotive dark and leakage currents. It excels in quickly detecting automotive leakage currents, measuring power consumption currents, and accurately gauging motor startup currents and generator charging currents. This versatile tool is invaluable for swiftly pinpointing issues like wire breakages, electrical escapes, and improper grounding in the automotive maintenance and power maintenance industries. It enjoys wide-ranging applications in automotive repair and electrical maintenance sectors, making it an indispensable asset for professionals in these fields.
AUTOOL BT270 Clamp On Amp Meter Features

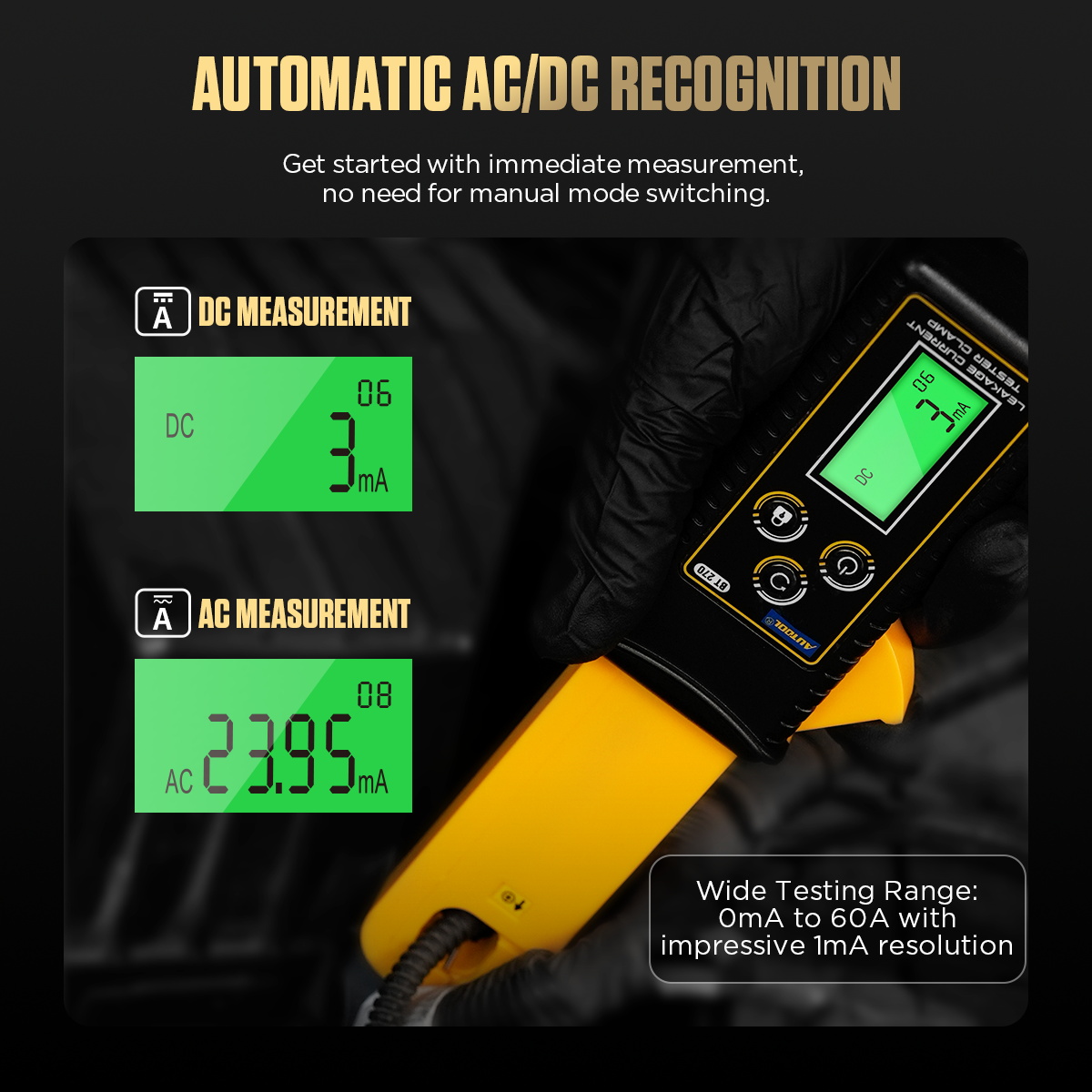

- Automatic AC/DC Recognition: The system automatically recognizes AC/DC, supporting measurements from 0mA to 60A with up to 1mA resolution, no manual mode switching needed.

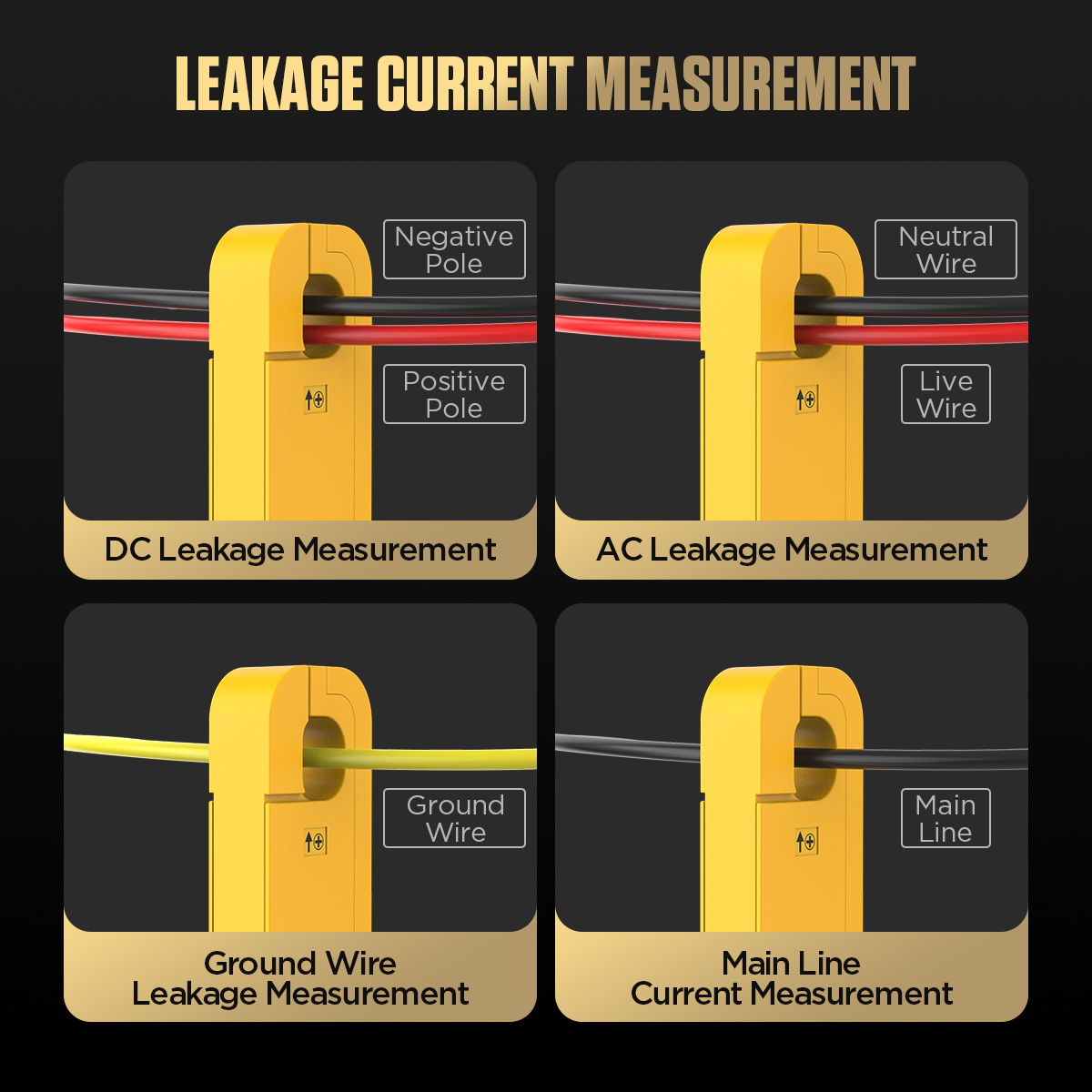

- Leakage Current Measurement: The system performs leakage current measurements, including DC leakage current, AC leakage current, ground leakage current, and main line current measurements.

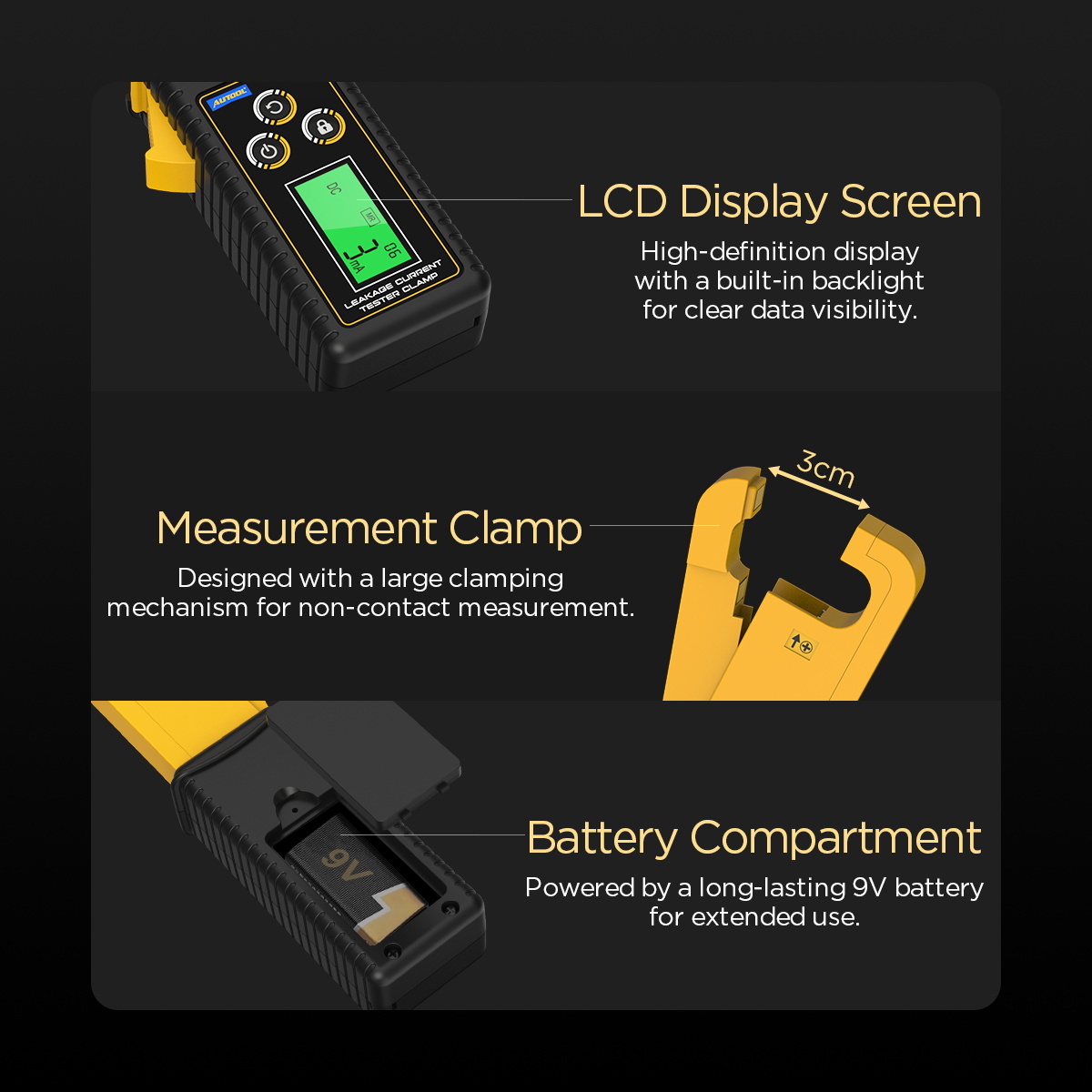

- LCD Display: A high definition display with built-in backlighting makes data clearly visible.
- Measuring Clamp: Designed with a large clamp for non-contact measurements.
- Battery Pack: Powered by a long-lasting 9V battery for extended use.

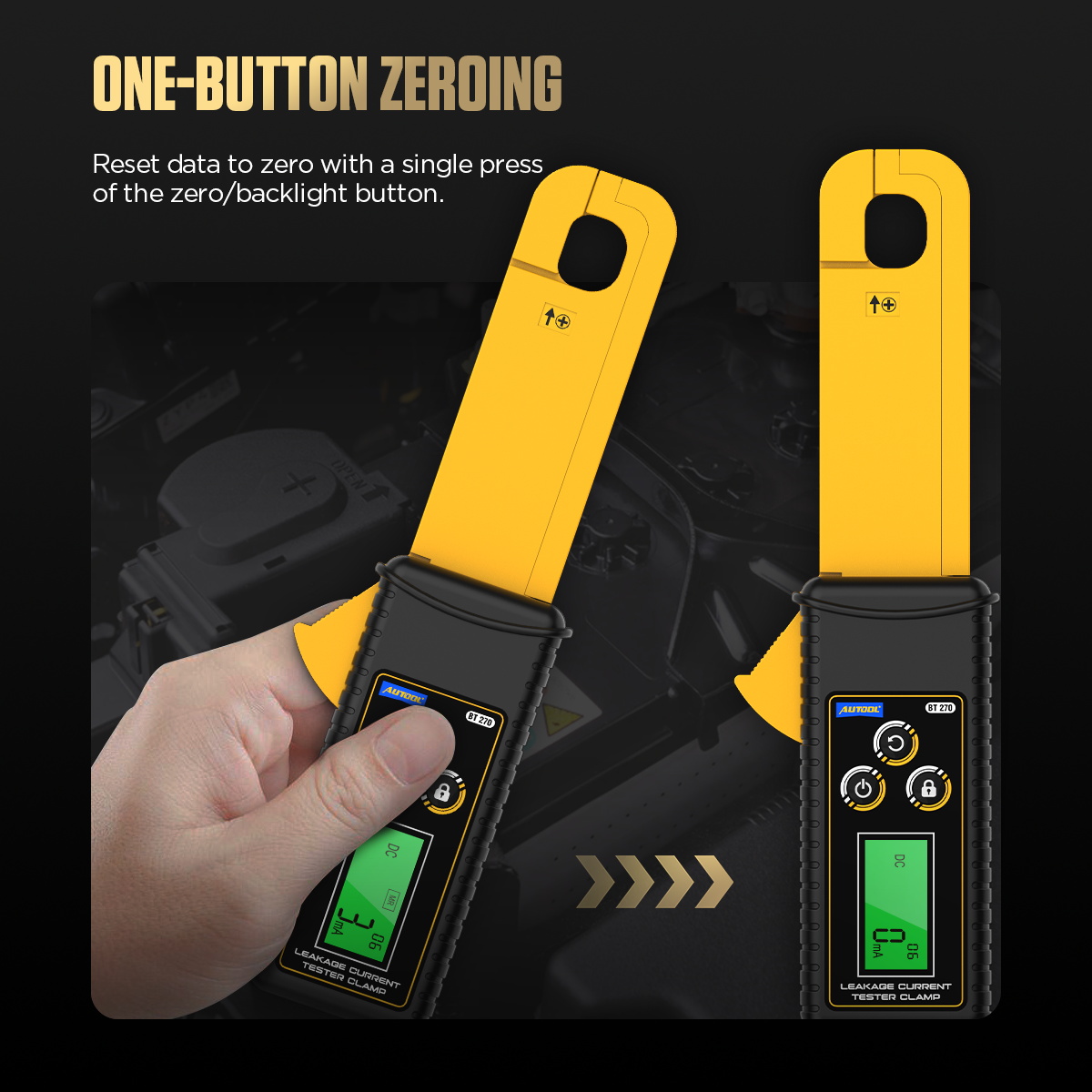

- One-Touch Zero: Simply press the Zero/Backlight button to zero the data.

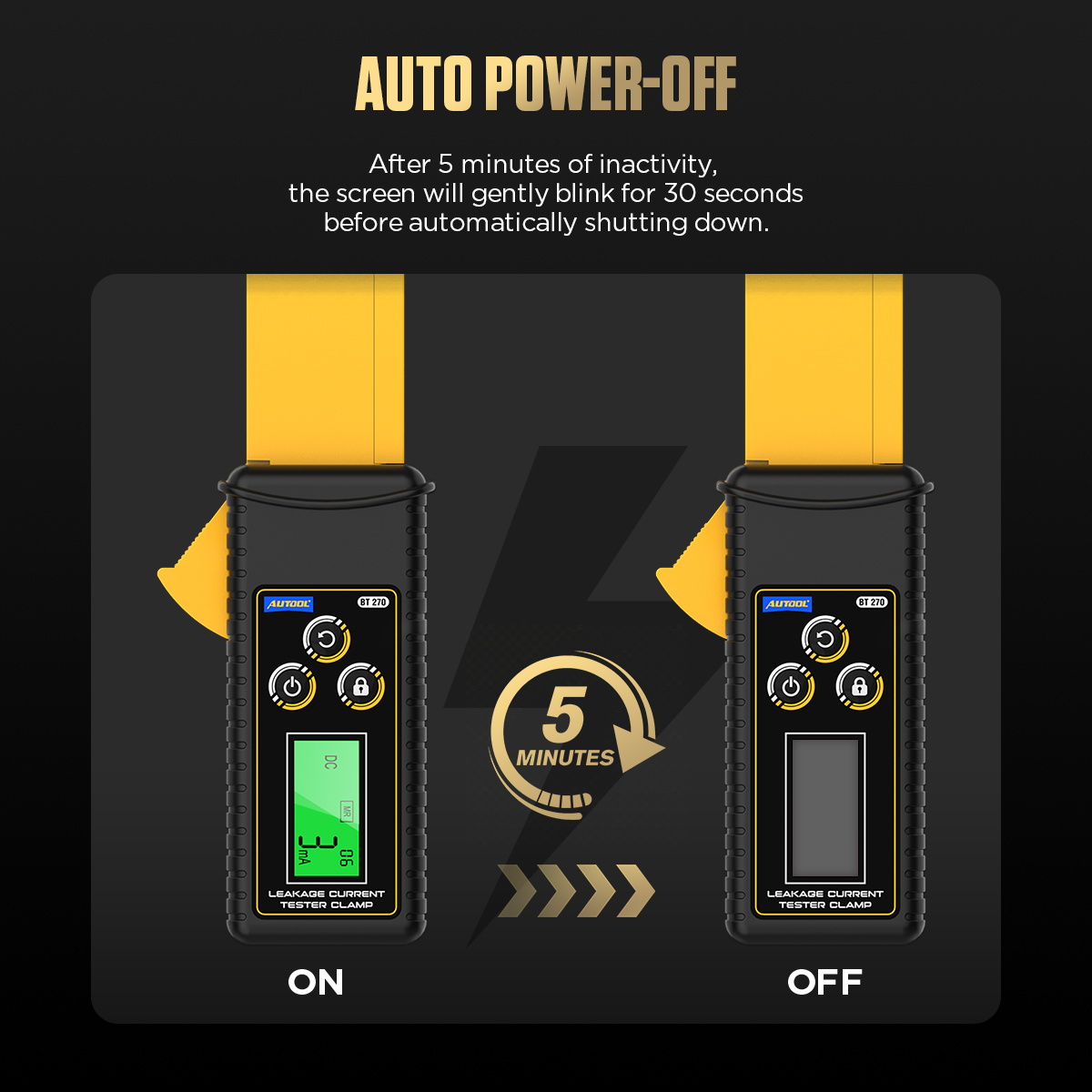

- Automatic Shutdown: After 5 minutes of standstill, the screen will gently flash for 30 seconds and then automatically shut down.

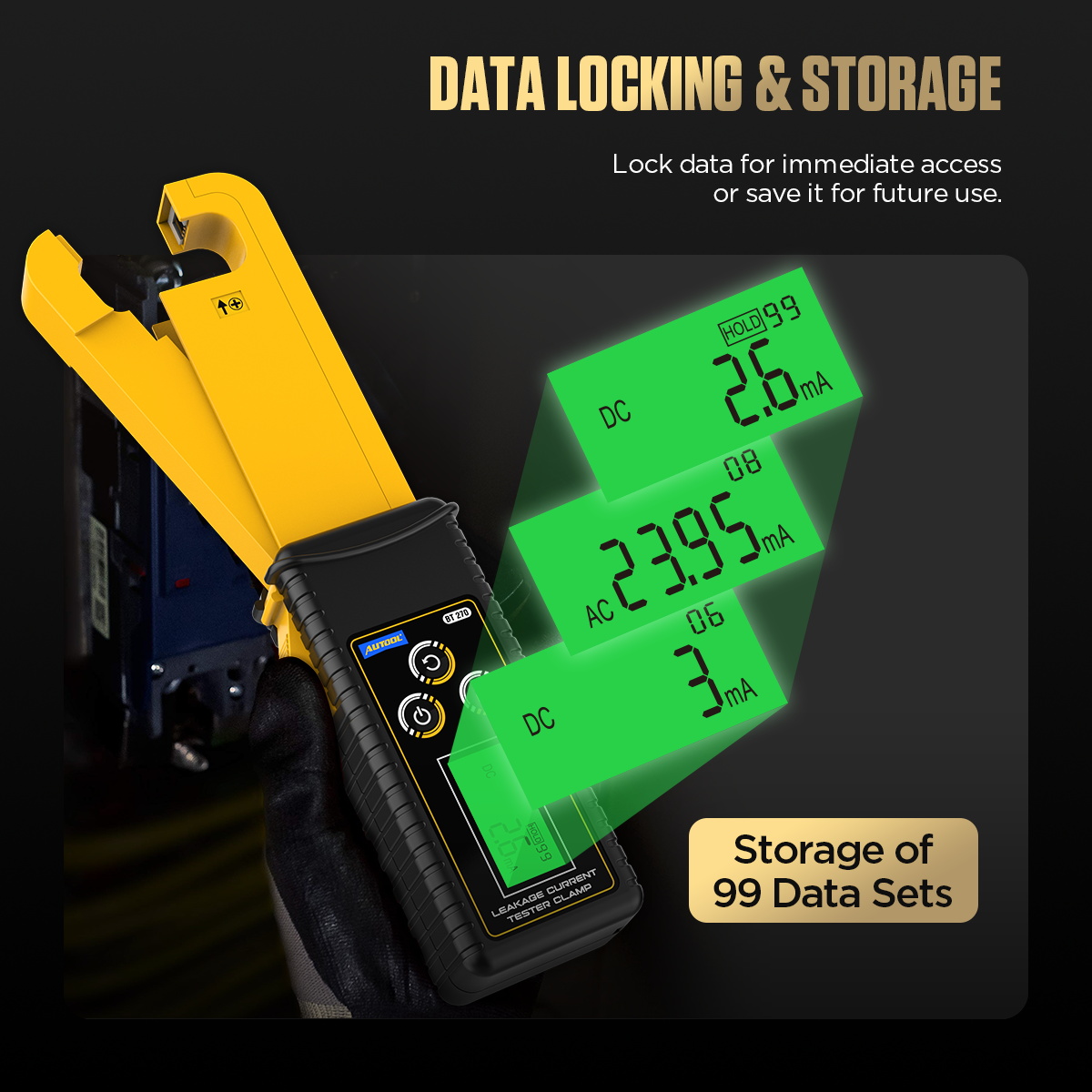

- Data Lock and Storage: Lock data for immediate visitors and save data for future use.
- 3-year Warranty: AUTOOL offers a 3-year warranty with free replacement parts for non-human-induced damages and lifetime maintenance. Contact us for assistance; we respond within 24 hours.
Note: When measuring AC current, the clamp meter automatically resets to zero. If the “0L” symbol is displayed, it indicates the measured current exceeds the device’s range.
1. Press the power button to turn on the clamp meter.
2. Upon startup, the clamp meter enters DC current measurement mode.
3. Press the zeroing/backlight button to reset the data, then clamp the jaws around the wire to measure.

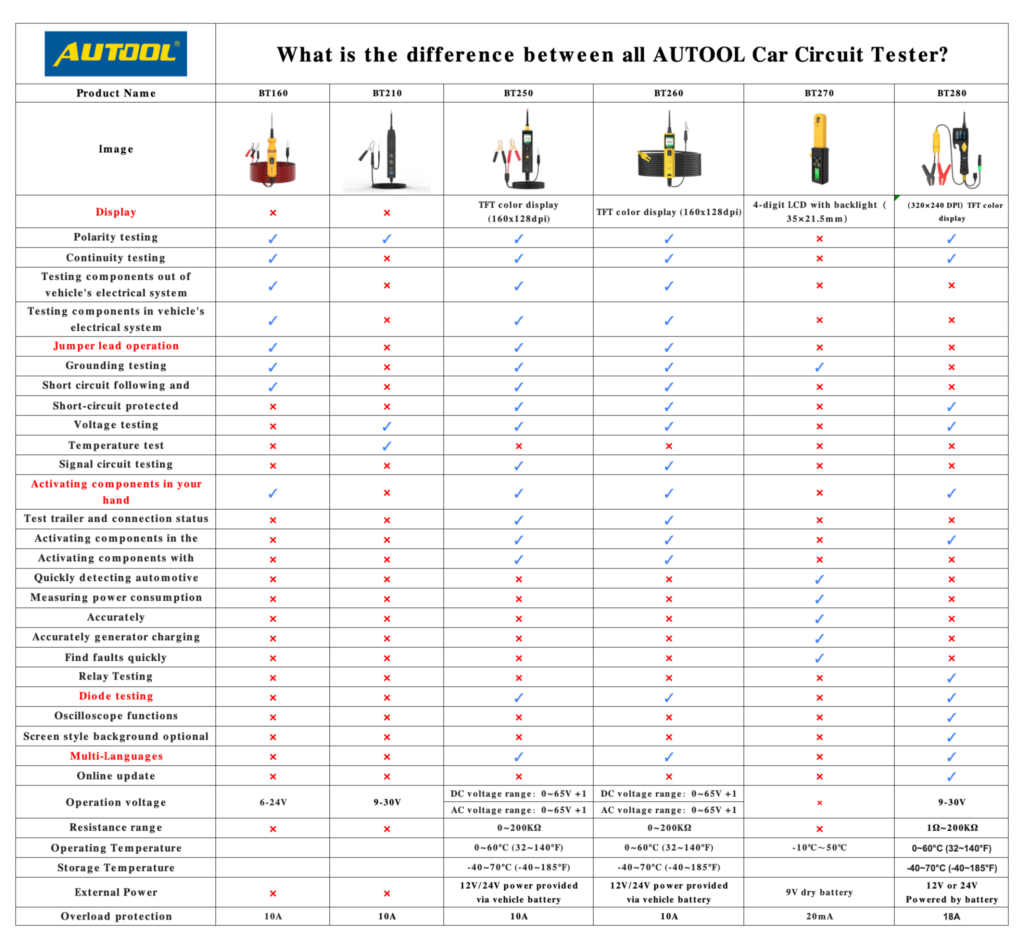

What Is The Difference Between AUTOOL Car Circuit Tester?

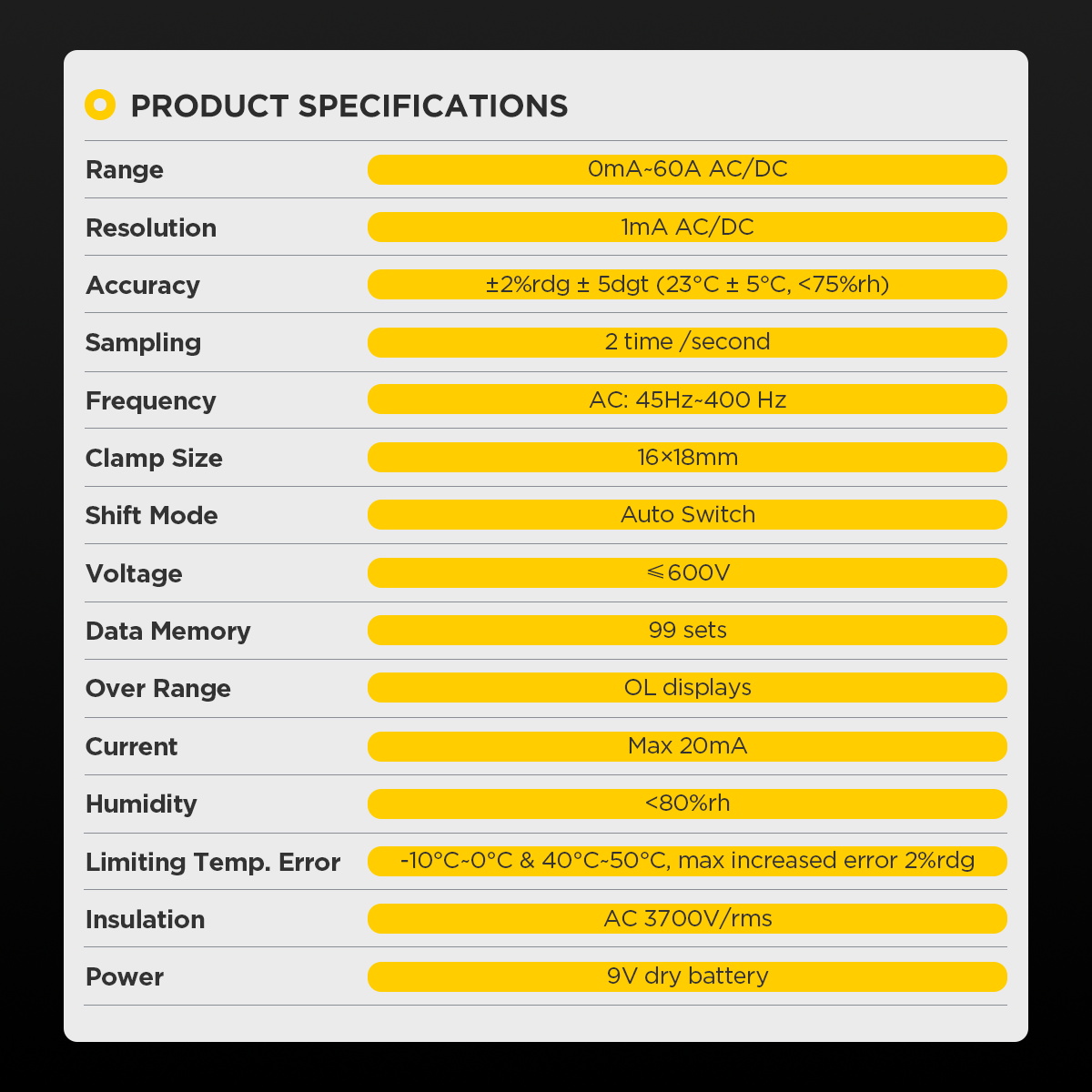

- No-Stripping Current Tester Specifications:
- Power: 9V Dry Battery
- Range: 0mA-60A AC/DC
- Resolution: 1mA AC/DC
- Accuracy: ±2%rdg± 5dgt (23°C± 5°C，<75%rh)
- Sampling: 2 time /second
- Frequency: AC: 45Hz-400 Hz
- Clamp Size: 16x18mm
- Shift Mode: Auto Switch
- Voltage: ≤600V
- Data Memory: 99 sets
- Over Range: OL displays
- Current: Max 20mA
- Humidity: <80%rh
- Limiting Temp. Error: -10°C-0°C & 40°C-50°C, max increased error 2%rdg
- Insulation: AC 3700V/rms

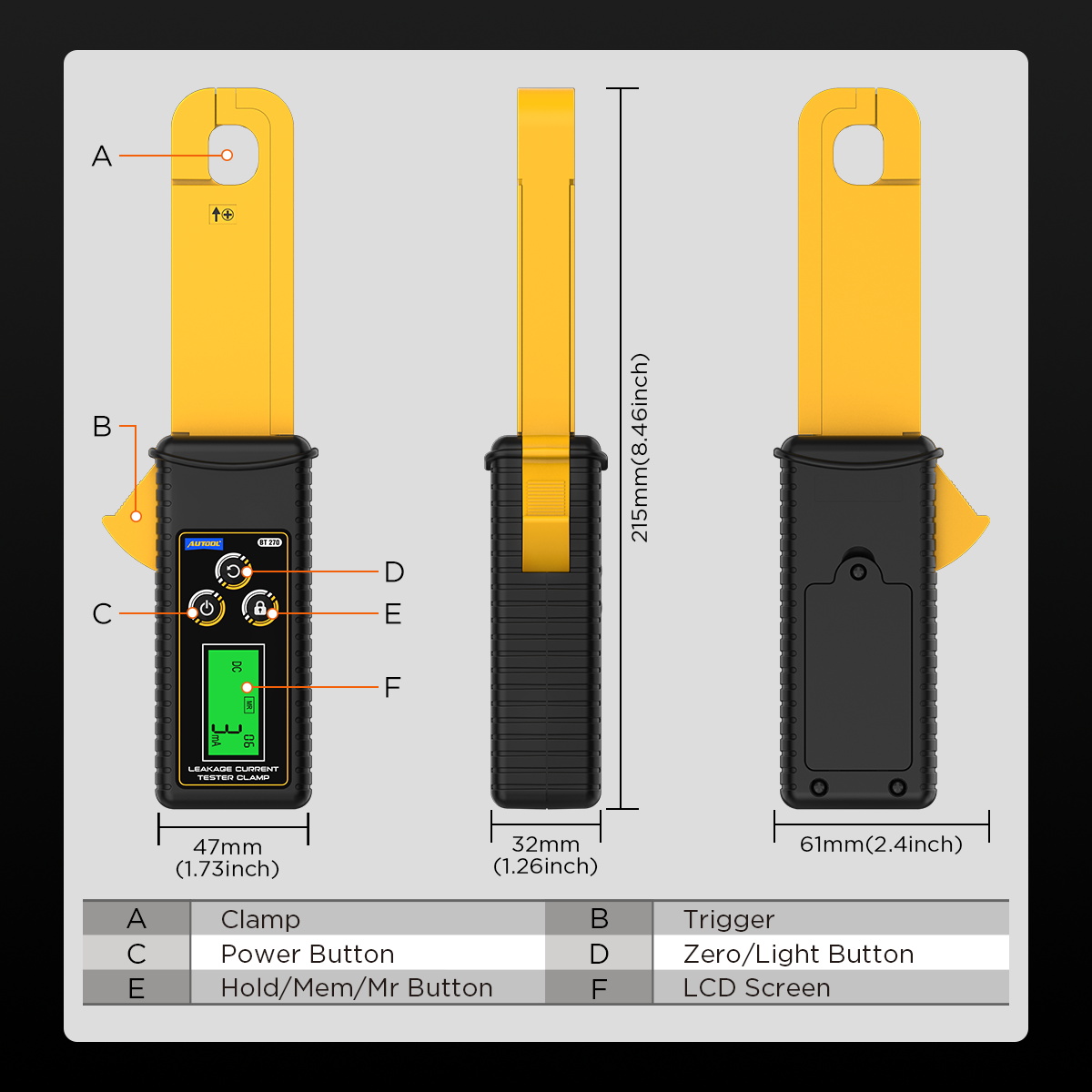

- Dimension: 2.4 x 1.26 x 8.46″
- Weight: 0.7 lbs

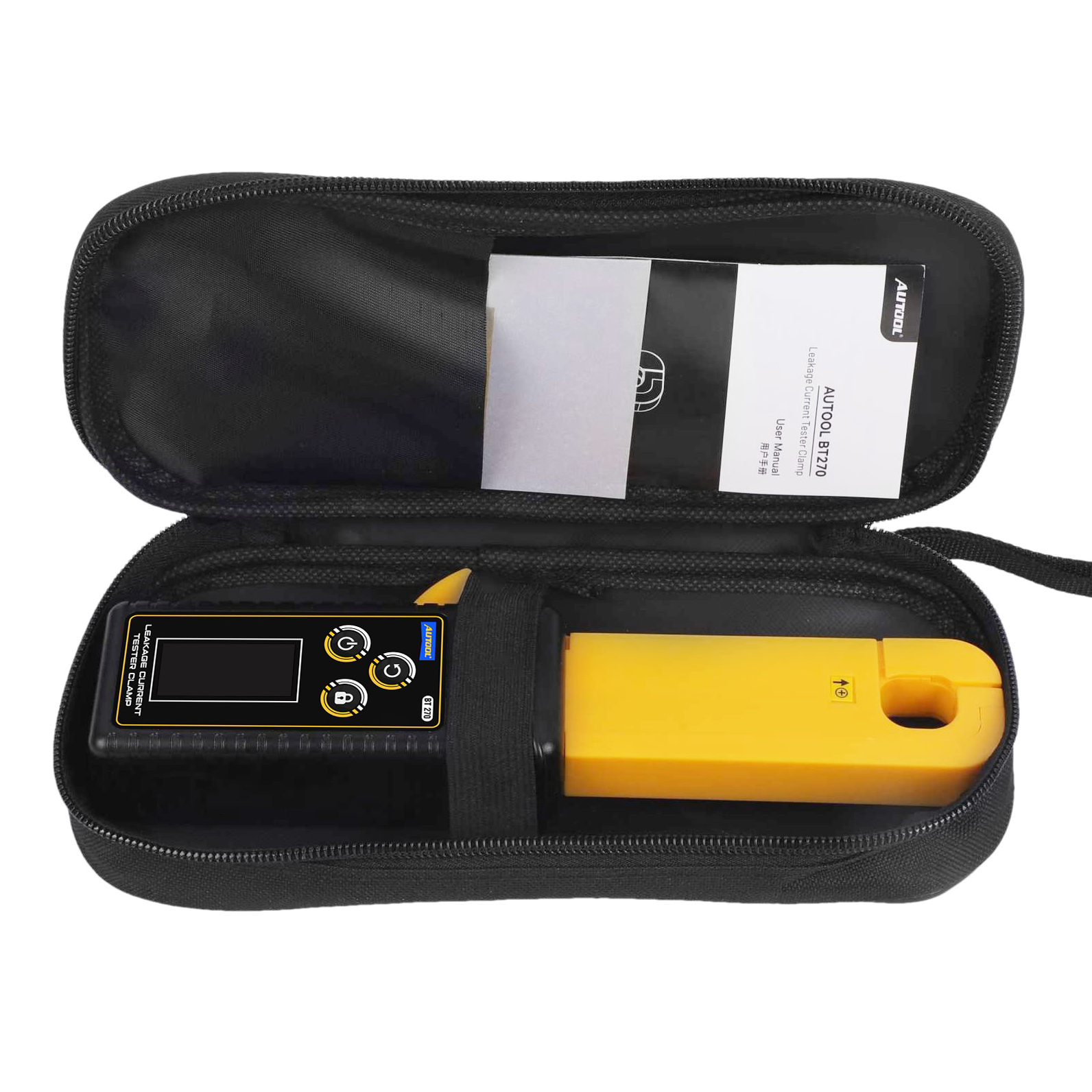

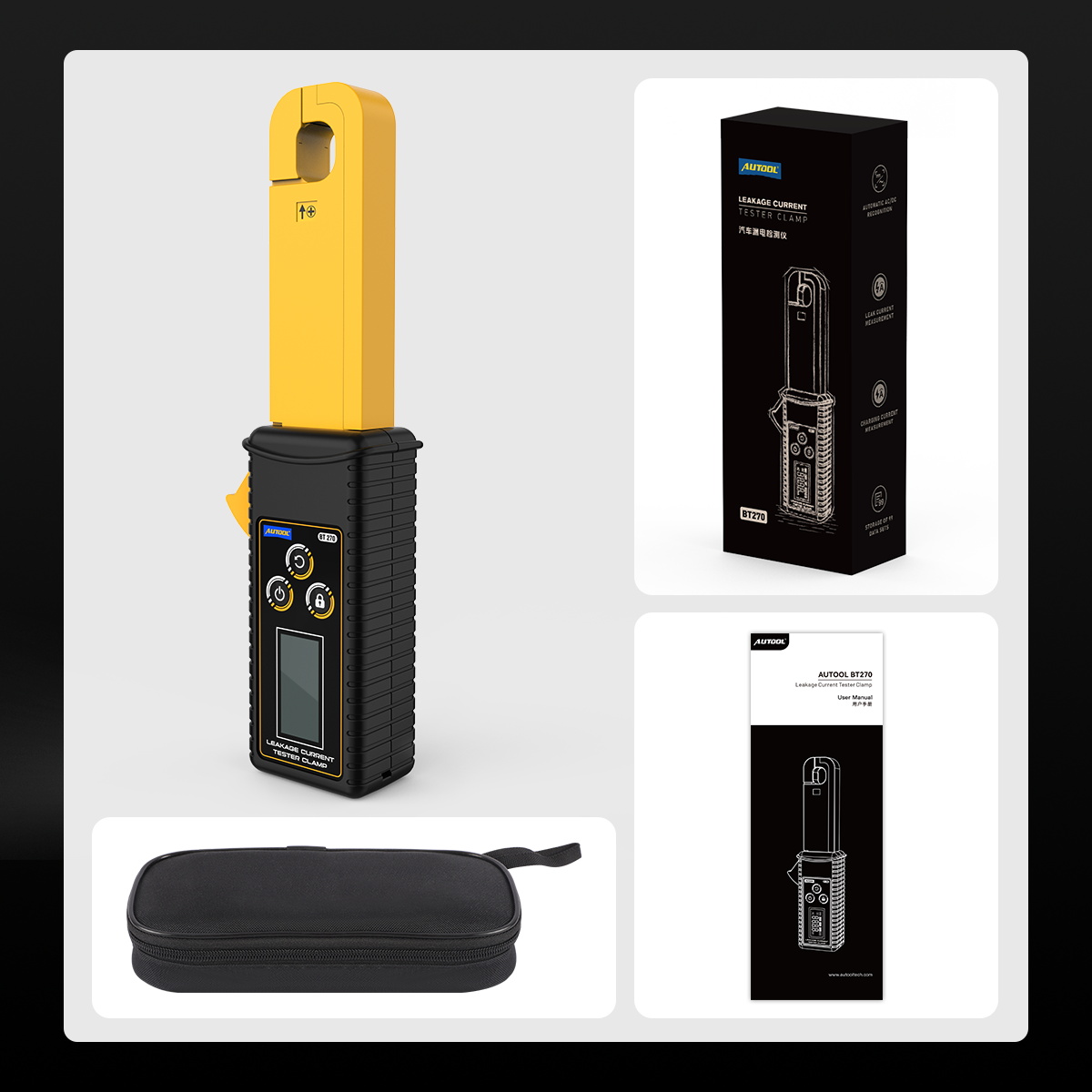

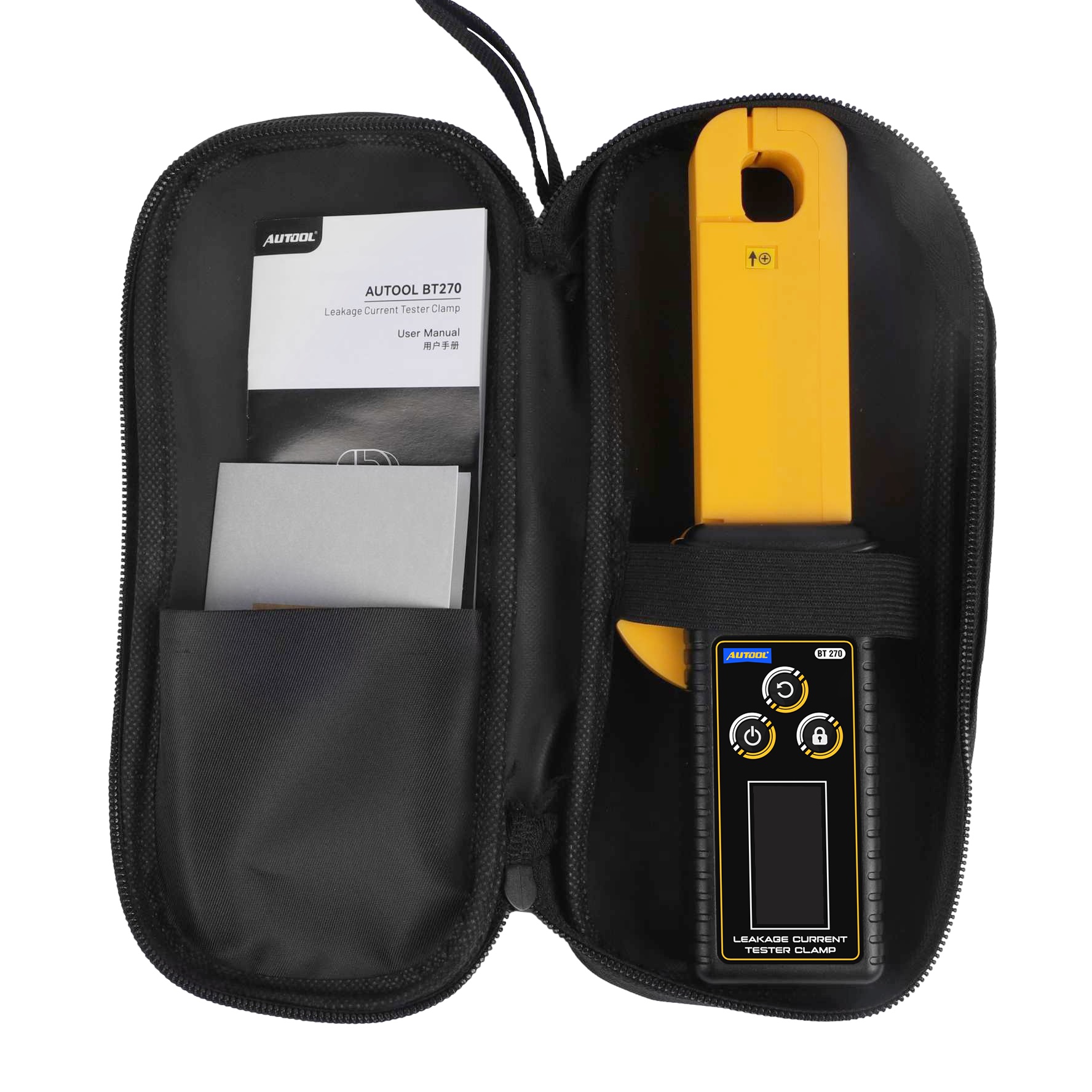

Digital Current Meter Package Includes:
- 1 x BT270 Current Clamp
- 1 x User Manual
- 1 x Storage Bag
- 1 x Packing Box
