Easypro EZP2023+ USB High Speed Programmer EZP2023+ High-speed USB SPI Programmer With EZP2023+5/8/10/12 Adapters with Software & Driver Support

描述

Easypro EZP2023+ USB High Speed Programmer is a high-performance, ultra-fast tool for programming SPI Flash and EEPROM chips. EZP2023+ High-speed USB SPI Programmer With EZP2023+5/8/12 Adapters with Software & Driver Support. CheShiTech.com EZP2023+ Programmer EZP2023+ USB SPI BIOS EEPROM Programmer Support PC Software and Programmer Firmware Upgrade.

---

Easypro EZP2023+ USB High Speed Programmer EZP2023+ High-speed USB SPI Programmer With EZP2023+5/8/10/12 Adapters with Software & Driver Support

CheShiTech.com EZP2023+ Programmer EZP2023+ USB SPI BIOS EEPROM Programmer Support PC Software and Programmer Firmware Upgrade

Note: CheShiTech.com Easypro EZP2023+ Have 4 Types Sell: Easypro EZP2023+ Standard Configuration, Easypro EZP2023+ With 5 Adapter， Easypro EZP2023+ With 8 Adapters And Easypro EZP2023+ With 12 Adapters.

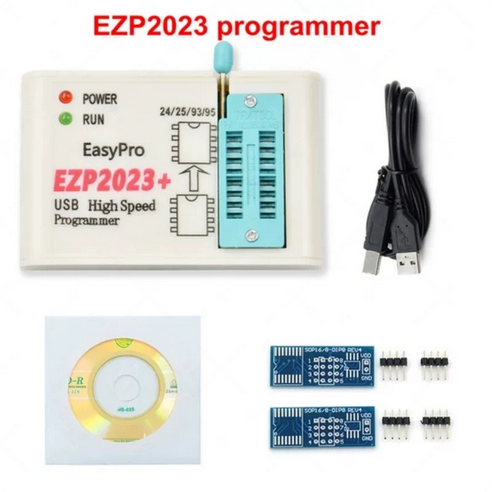

Easypro EZP2023+ Standard Configuration:

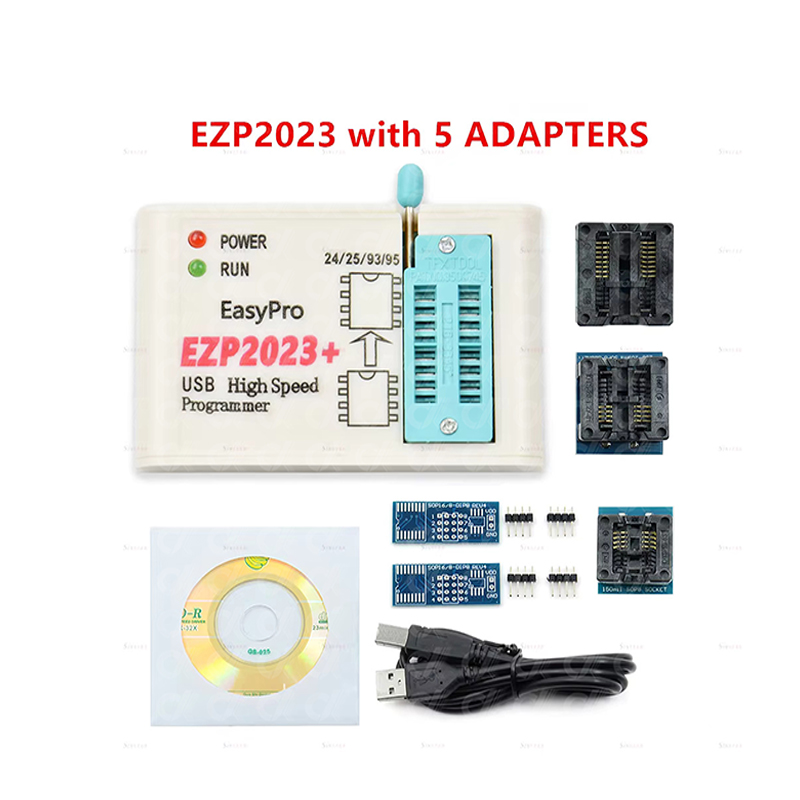

Easypro EZP2023+ With 5 Adapters:

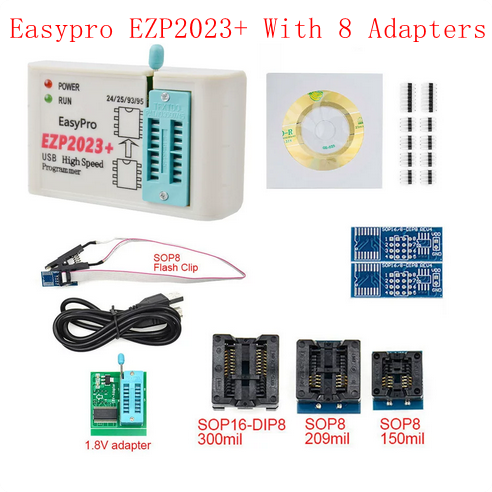

Easypro EZP2023+ With 8 Adapters:

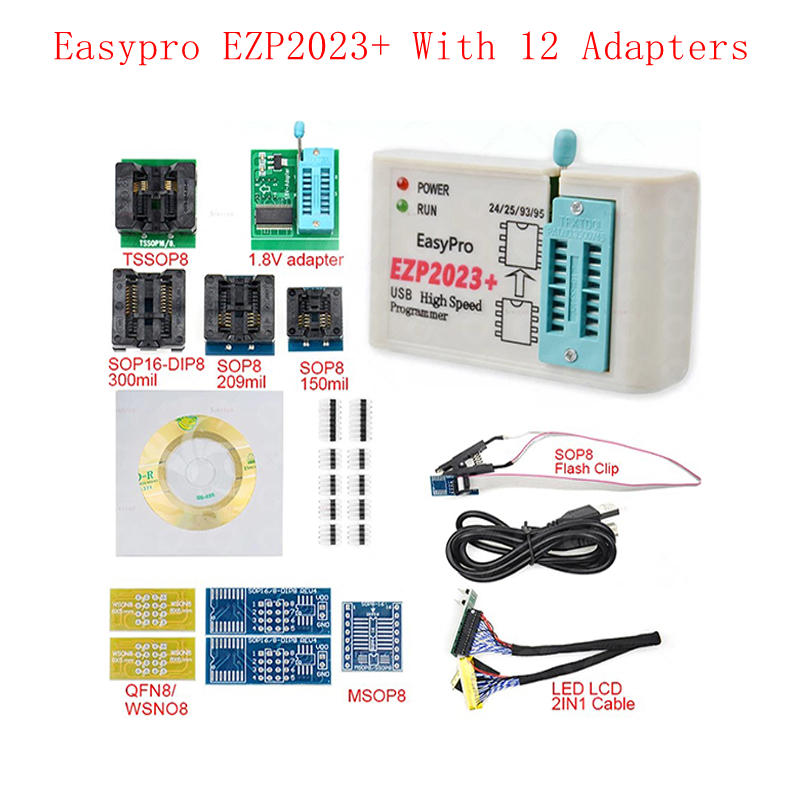

Easypro EZP2023+ With 12 Adapters:

The EZP2023+ USB SPI Programmer is a high-performance, ultra-fast tool for programming SPI Flash and EEPROM chips. With its intelligent automation, USB 2.0 high-speed interface, and broad chip compatibility, the EZP2023+ is ideal for BIOS repair, EEPROM duplication, and factory production environments.

EZP2023+ USB SPI EEPROM Flash BIOS Programmer User Manual:
https://ikey.co/file/0_1149_ezp2023-user-manual

How To Use The EZP2023+ USB SPI EEPROM Flash BIOS Programmer:
https://ikey.co/file/0_1150_how-to-use-the-ezp2023

EZP2023+ USB Programmer Support List:
https://ikey.co/file/0_1157_ezp2023-support-list

Operating System Compatibility

The EZP2023+ software supports the following Windows versions:

Windows XP (SP2 and SP3)

Windows 7 (32-bit and 64-bit)

Windows 8 and 8.1

Windows 10 (fully tested and stable)

Note: Currently, the software does not support macOS or Linux systems.

EZP2023+ Driver Installation for Windows 10 (Installation Guide)

To install the EZP2023+ driver on Windows 10:

Connect the programmer to your PC via USB.

Run the driver setup file from the downloaded folder.

Follow the on-screen instructions to complete the installation.

After installation, launch the EZP2023+ application — the tool should now auto-detect connected chips.

If Windows displays a warning, allow the installation to proceed. Drivers are signed and safe for use with most systems.



High-Speed Performance & Auto Functions

Featuring a USB 2.0 interface with 12 Mbps data transfer, the EZP2023+ programmer can read EN25T80 chips in 3 seconds and write in just 9 seconds. Compared to traditional tools, this delivers exceptional speed and efficiency, making it one of the fastest flash programmers available.

Key Auto Functions:

• ✅ Auto-recognition of 25-series chips
• ✅ Auto-voltage selection
• ✅ Auto chip placement detection

Even non-professionals can use the EZP2023+ easily, without the risk of burning out components.

Designed for Mass Production

The automatic offline copy mode is perfect for batch programming and factory use, enabling quick duplication of memory chips without requiring a computer. This feature drastically improves production speed during repetitive tasks.

Portable, Upgradable & Versatile

The compact size of the EZP2023+ makes it ideal for on-site repairs or bench work. It supports firmware upgrades and PC software updates to stay current with new chipsets and protocols.

EZP2023+ Programmer Software Overview

The EZP2023+ software download is available for Windows 10, 8, 7, and XP and supports:

• One-click BIN file read/write
• HEX editing and manual EEPROM configuration
• Auto-detect chip model
• Data comparison and verification
• Real-time chip support list updates

? You can also access the EZP2023+ manual download, Windows 10 drivers, and support list directly from our site. (Click Here)

EZP2023+ vs. CH341A Programmer – Comparison Table

Feature	EZP2023+	CH341A
Speed	12Mbps (USB 2.0)	Basic USB, slower
Auto Detection	✅ Auto model/voltage/placement	❌ Manual setup required
Supported Chips	24/25/93/95 EEPROM, 25-series Flash	Limited 24/25 support only
Offline Copy Mode	✅ Yes	❌ Not available
Software Interface	User-friendly with automation	Basic, harder for beginners
Firmware Upgradable	✅ Yes	❌ No
Driver Compatibility	Windows XP–10 (stable)	Requires patches on Windows 10
Best Use Case	BIOS, EEPROM, R&D, factory production	Basic EEPROM tasks, DIY beginners

EZP2023+ Programmer Supported Applications

• BIOS chip repair and flashing
• EEPROM backup and restoration
• SPI Flash replacement
• Motherboard, router, and TV maintenance
• Industrial mass production

Frequently Asked Questions (FAQ)

How do I download the EZP2023+ software?

You can access the latest EZP2023+ software download package, including drivers and firmware, from the Downloads section on our product page.

How do I install the EZP2023+ driver on Windows 10?

Connect the device via USB → Run the driver installer → Follow on-screen prompts. We provide a free driver for Windows 10 to ensure stability.

Where can I find the EZP2023+ manual?

The EZP2023+ user manual is available as a PDF in the support section. It includes setup, usage, and troubleshooting instructions.

What chips does EZP2023+ support?

The EZP2023+ supports 24, 25, 93, 95 EEPROMs and a wide range of SPI Flash chips, including EN25T80, W25Q series, and MXIC.

Final Thoughts

Whether you’re a professional technician or electronics hobbyist, the EZP2023+ USB SPI Programmer offers unmatched speed, reliability, and automation. It far outperforms older programmers like the CH341A, and supports mass production, BIOS recovery, and full EEPROM management — all with a user-friendly interface and stable Windows 10 compatibility.
