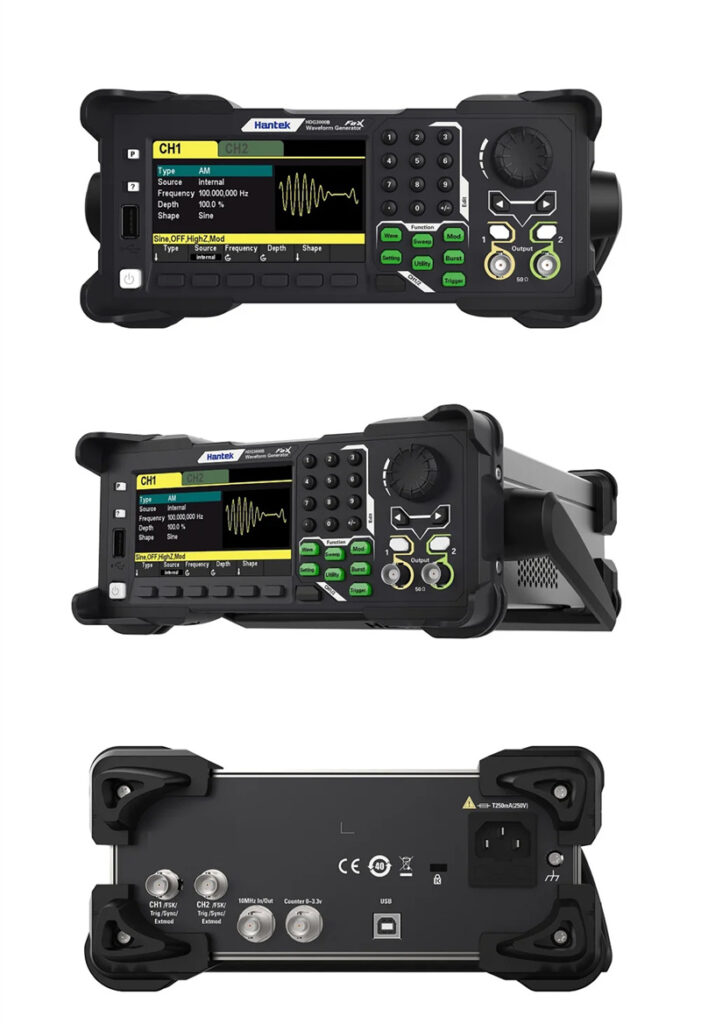

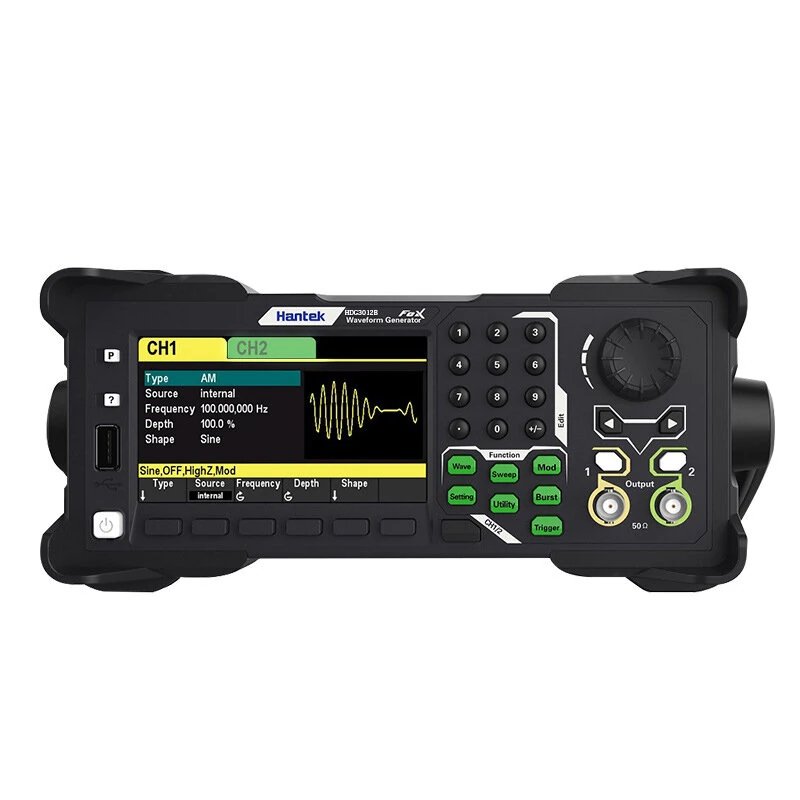

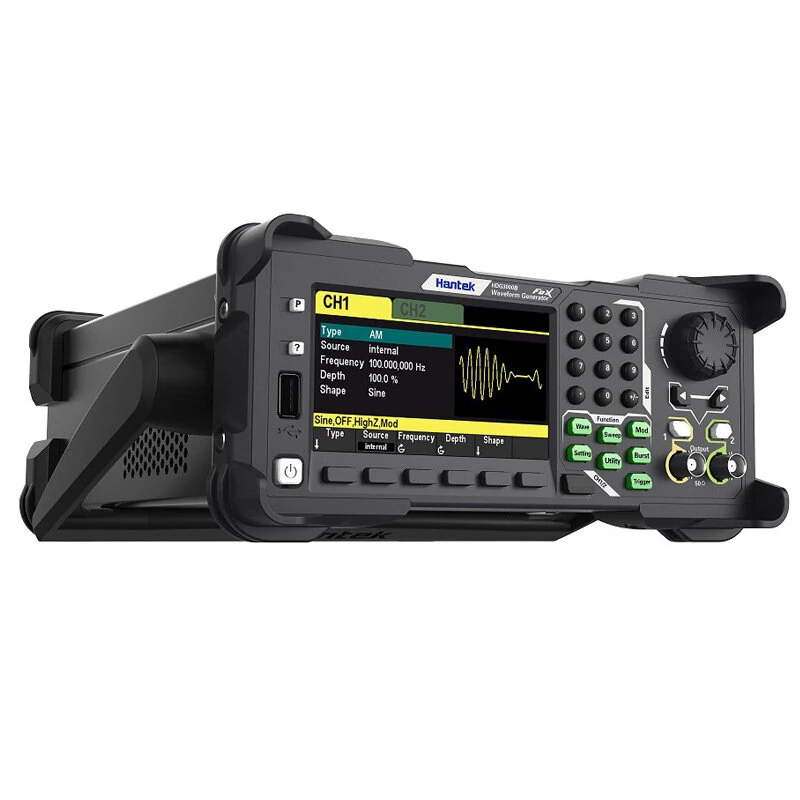

Hantek HDG3012B Arbitrary Waveform Generator 5 in 1 Hantek HDG3012B/HDG3022B/HDG3042B/HDG3062B/HDG3082B/HDG3102B Dual Channel Desktop Signal Source Signal Generator

描述

Hantek HDG3012B Arbitrary Waveform Generator with 5 functions of arbitrary waveform generator,pulse generator,80MHz frequency meter,function generator and harmonic generator. Hantek HDG3012B/HDG3022B/HDG3042B/HDG3062B/HDG3082B/HDG3102B Dual Channel Desktop Signal Source Signal Generator. CheShiTech.com Hantek HDG3012B/HDG3022B/HDG3042B/HDG3062B/HDG3082B/HDG3102B Waveform Generator UsingDDS direct digital frequency synthesis technology.

---

Hantek HDG3012B Arbitrary Waveform Generator 5 in 1 Hantek HDG3012B/HDG3022B/HDG3042B/HDG3062B/HDG3082B/HDG3102B Dual Channel Desktop Signal Source Signal Generator

CheShiTech.com 5 in 1 Hantek HDG3012B/HDG3022B/HDG3042B/HDG3062B/HDG3082B/HDG3102B Waveform Generator UsingDDS direct digital frequency synthesis technology

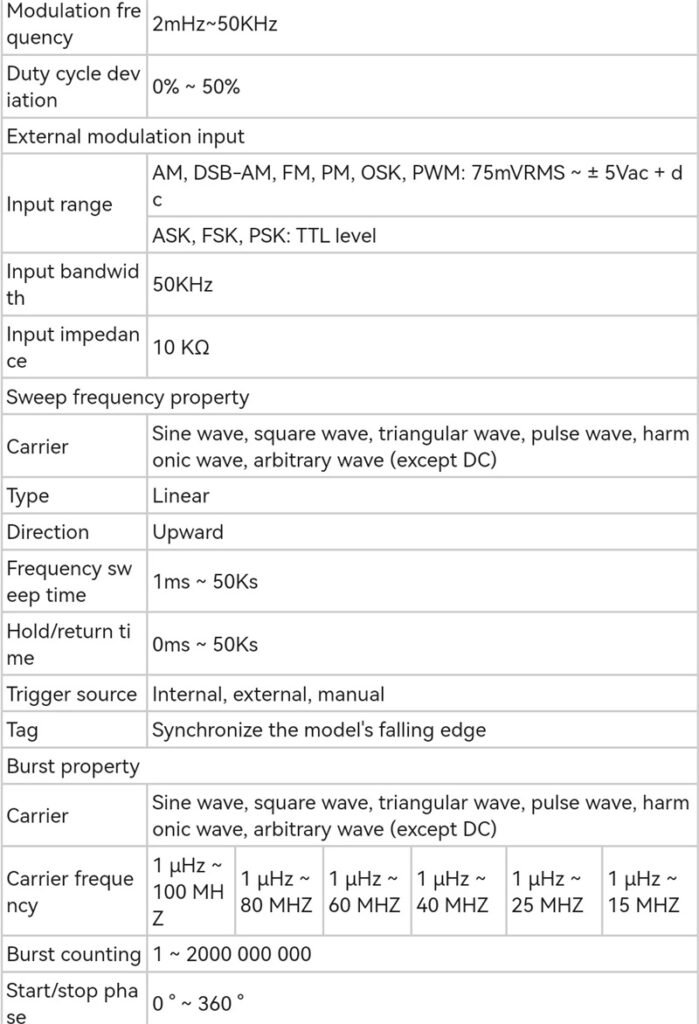

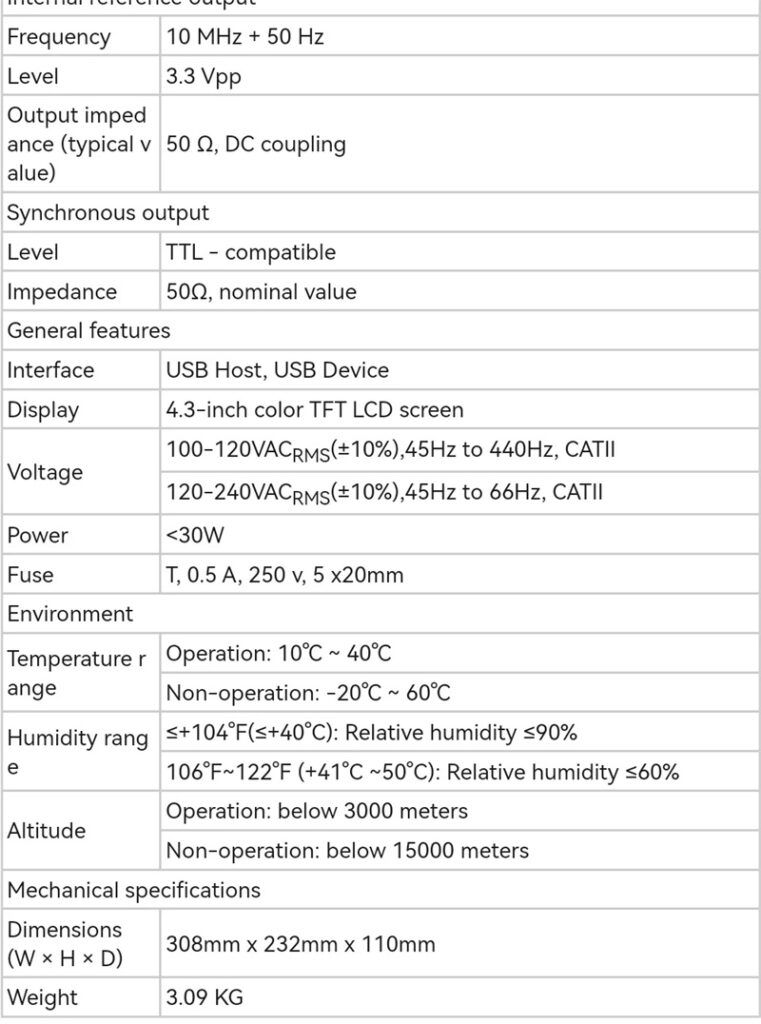

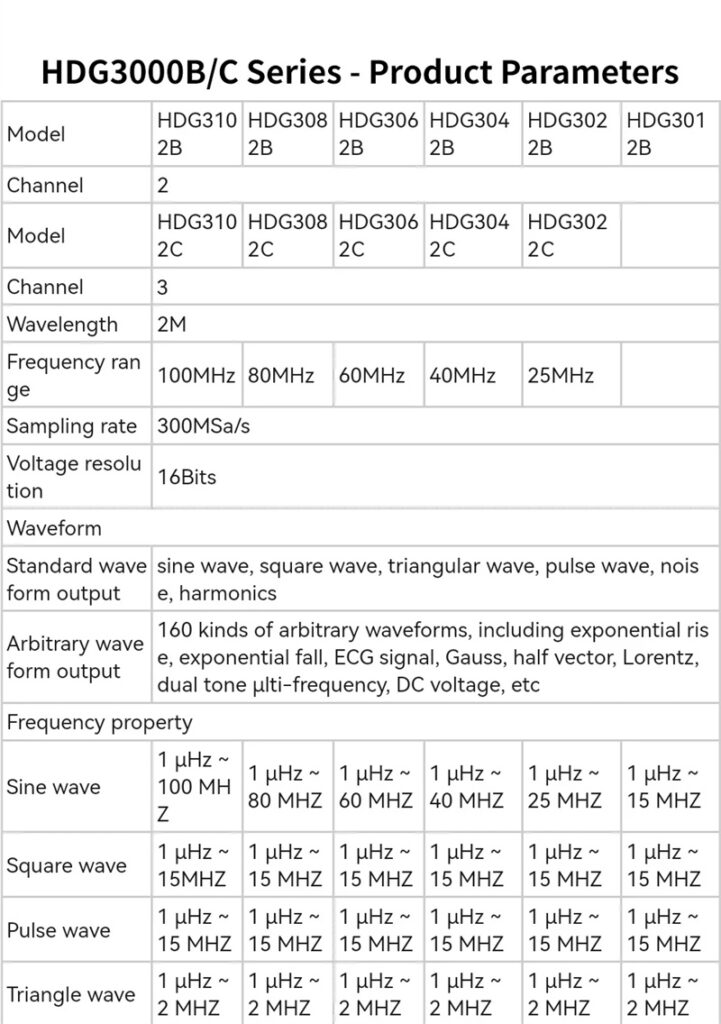

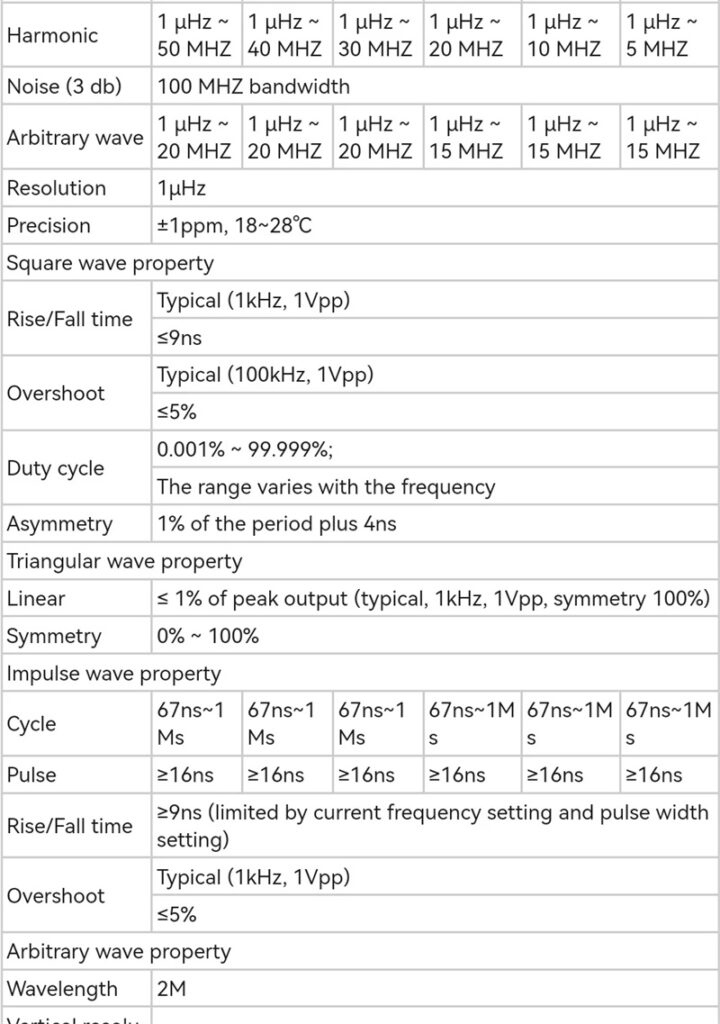

Hantek HDG3012B Arbitrary Waveform Generator Specifications:

Model: Hantek 5 in 1 Arbitrary Waveform Generator

Functions: Arbitrary Waveform Generator, Pulse Generator, Function Generator, Harmonic Generator, Frequency Meter

Sampling Rate: Up to 300MSa/s

Vertical Resolution: 16 bits

Storage Depth: Up to 2M

Frequency Resolution: 1 μHz

Amplitude Range:

High Impedance: 2mV–20Vpp

50 Ω Impedance: 1mV–10Vpp

Modulation Functions: AM, FM, PM, PWM, ASK, FSK, PSK, and more

Display: 4.3-inch Color TFT LCD

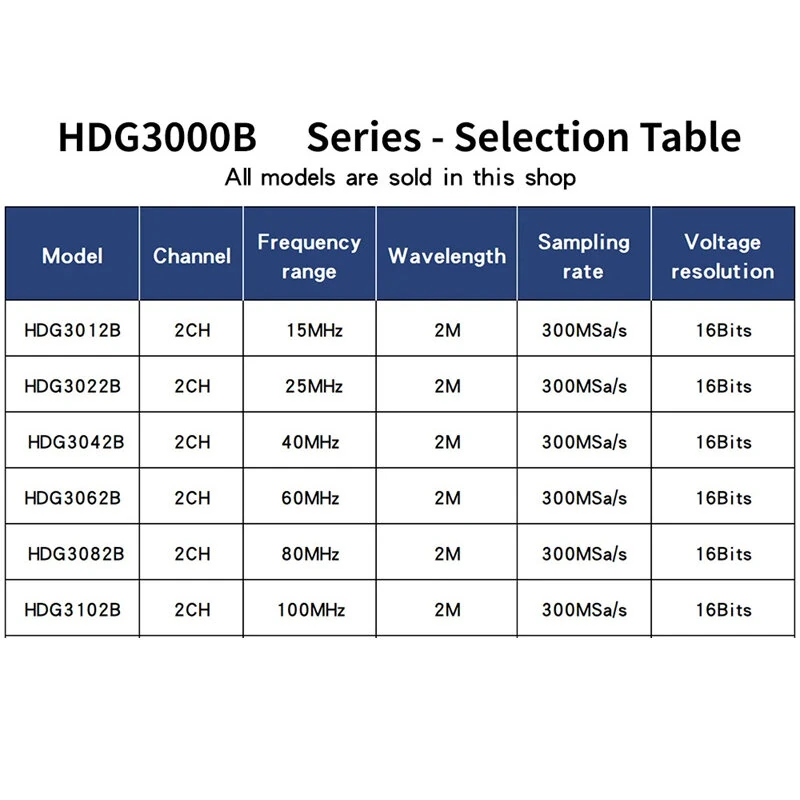

Optional Model: HDG3012B/HDG3022B/HDG3042B/HDG3062B/HDG3082B/HDG3102B

Built-In Frequency Meter: 15MHz/25MHz/40MHz/60MHz/80MHz/100MHz

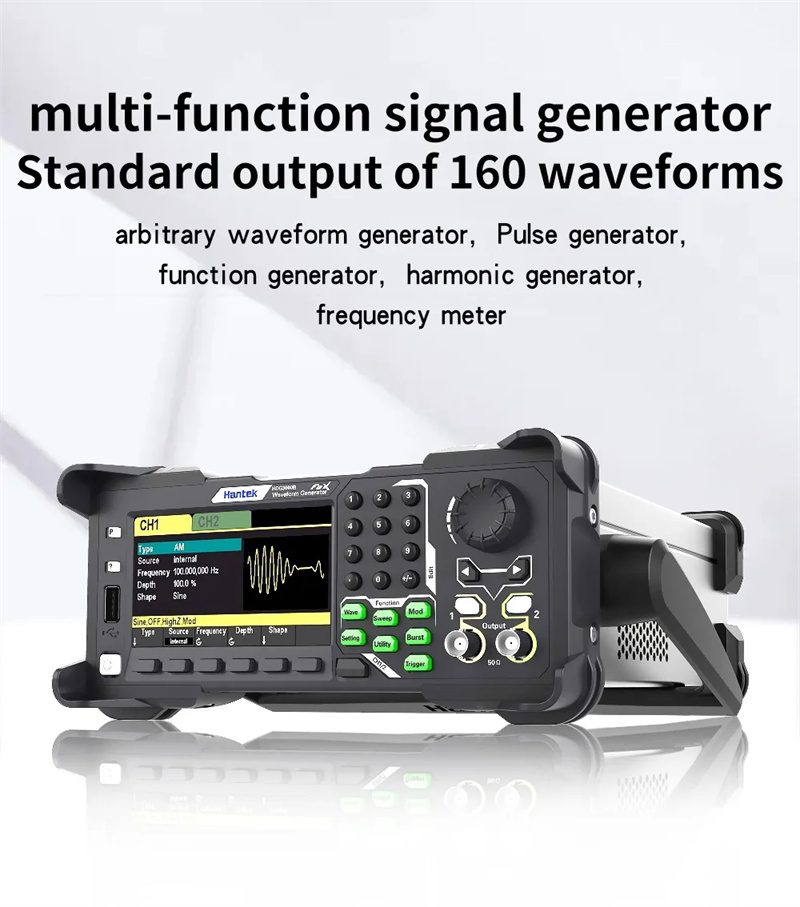

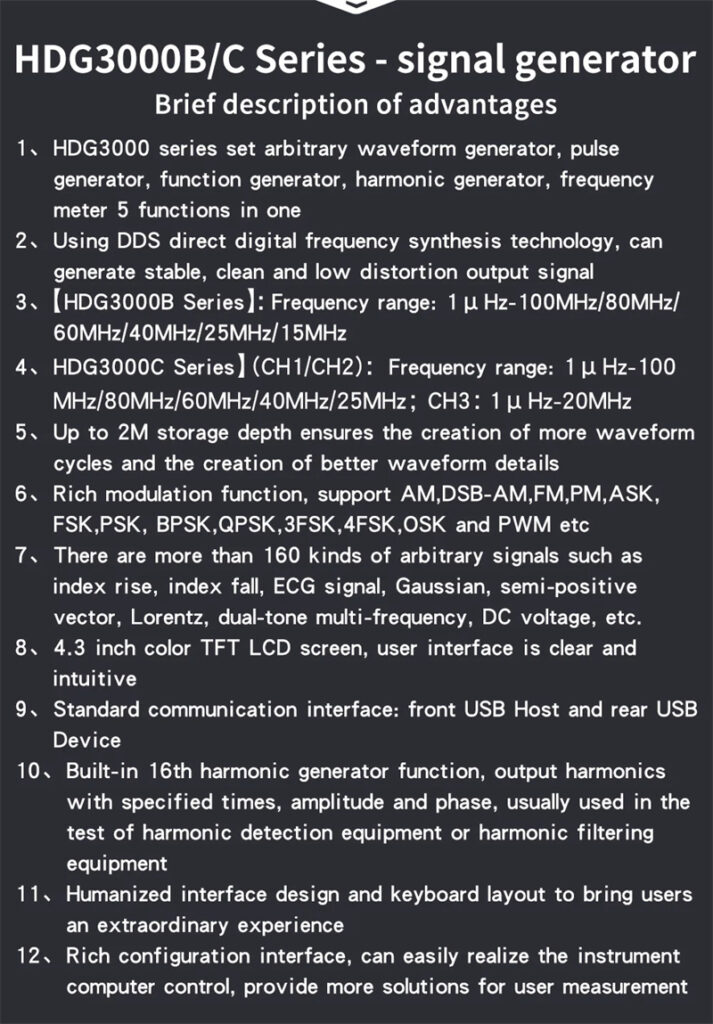

1.HDG3000B series integrates 5 functions of arbitrary waveform generator,pulse generator,80MHz frequency meter,function generator and harmonic generator.

2.UsingDDS direct digital frequency synthesis technology.

3.Up to 300MSa/s sampling rate,16bits vertical resolution to ensure the accuracy of waveform amplitude.

4.Equivalent performance dual-channel as standard,equivalent to two independent signal sources.

5.The storage depth of up to 2M ensures the creation of more waveform cycles and the creation of better waveform details.

6.4.3-inch color TFT LCD display,the user interface is clear and intuitive.

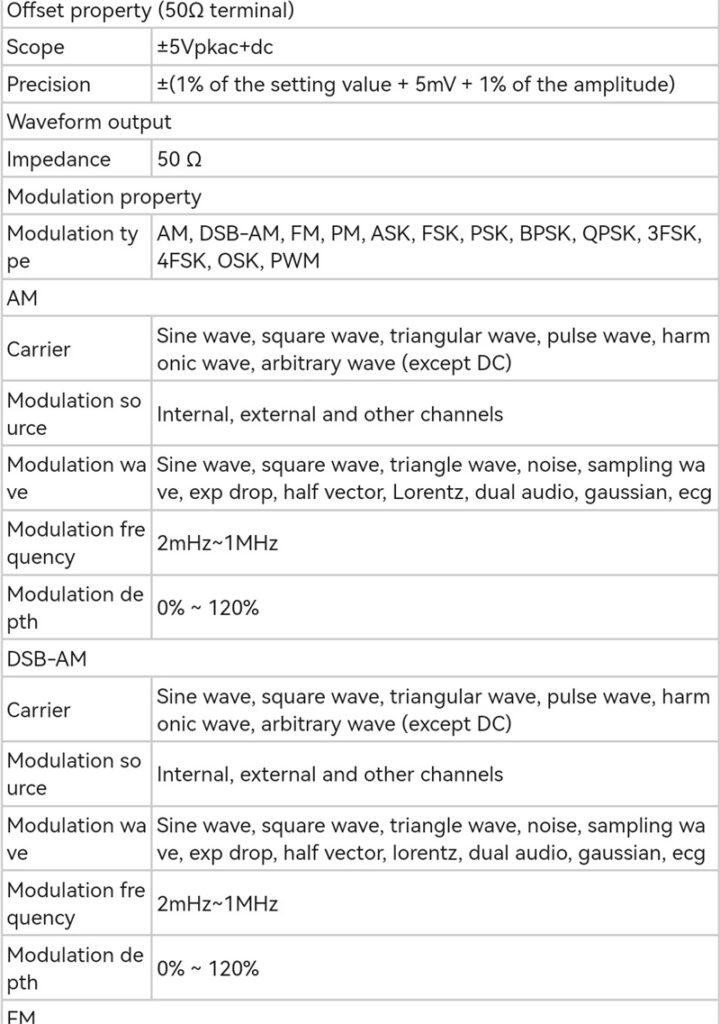

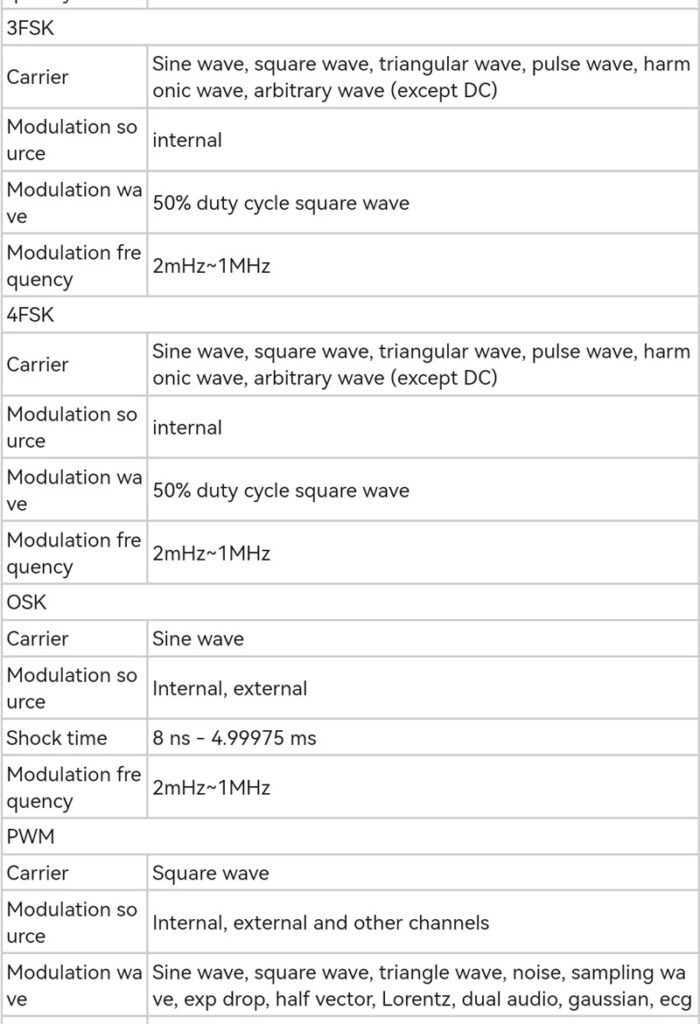

7.Rich modulation functions,support AM,DSB-AM,FM,PM,ASK,FSK,PSK,BPSK,QPSK,3FSK,4FSK,OSK and PWM,etc.

8.Exponential rise,exponential fall,ECG signal,Gaussian,Haversine,Lorentz,DTMF,DC voltage,etc.A total of more than 160 kinds of arbitrary signals.

Hantek HDG3012B Arbitrary Waveform Generator Features:

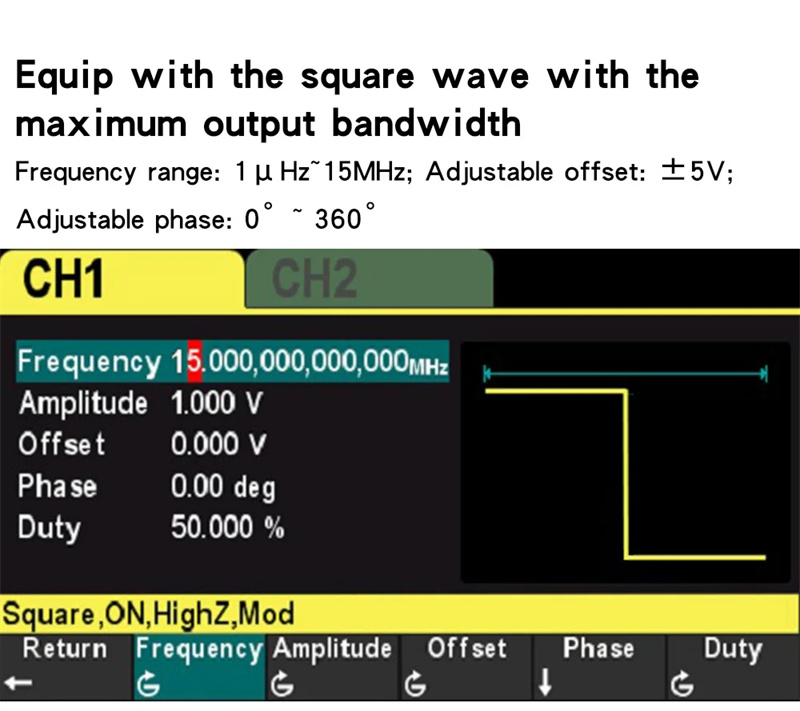

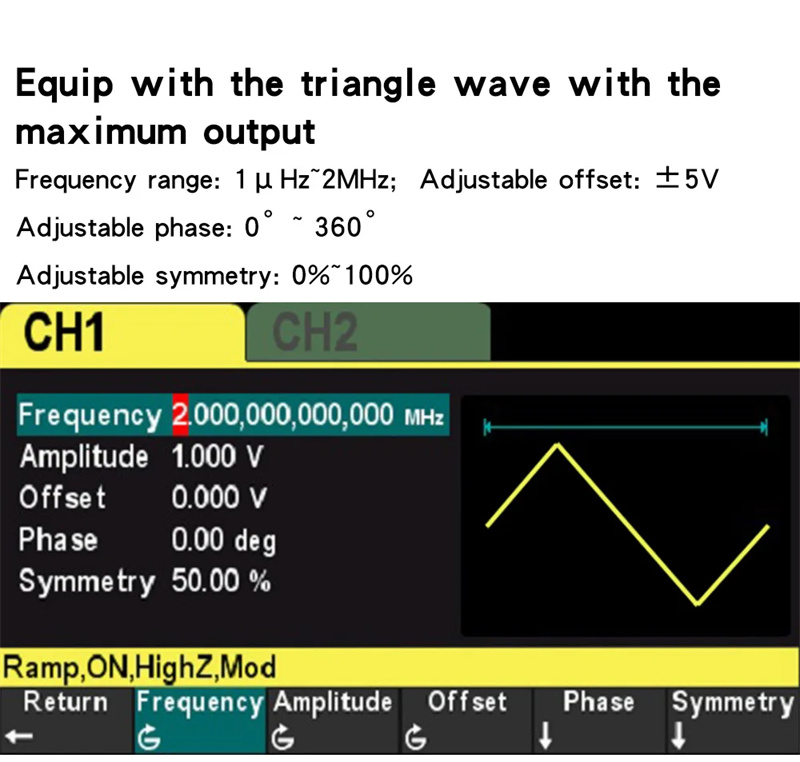

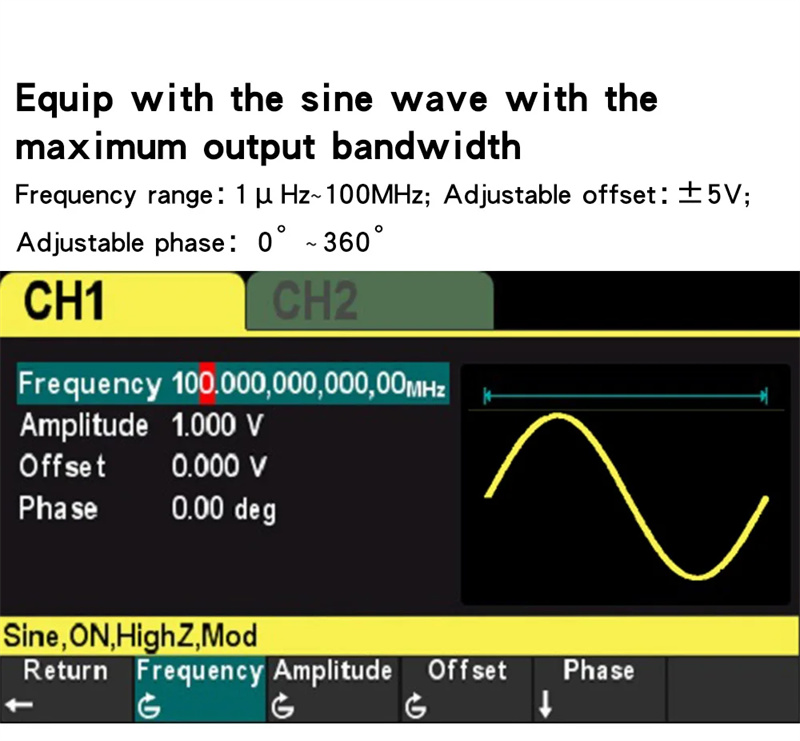

Frequency range: 1μHz ~ 100MHz/80MHz/60MHz/40MHz/25MHz/15MHz.

Up to 300MSa/s sampling rate, no distortion of analog waveforms.

16-bit vertical resolution ensures the accuracy of waveform amplitude.

Equip with dual channels with equal performance, equivalent to two independent signal sources.

The storage depth of up to 2M ensures the creation of more waveform cycles and better waveform details.

A 4.3-inch color TFT LCD screen, a clear and intuitive user interface.

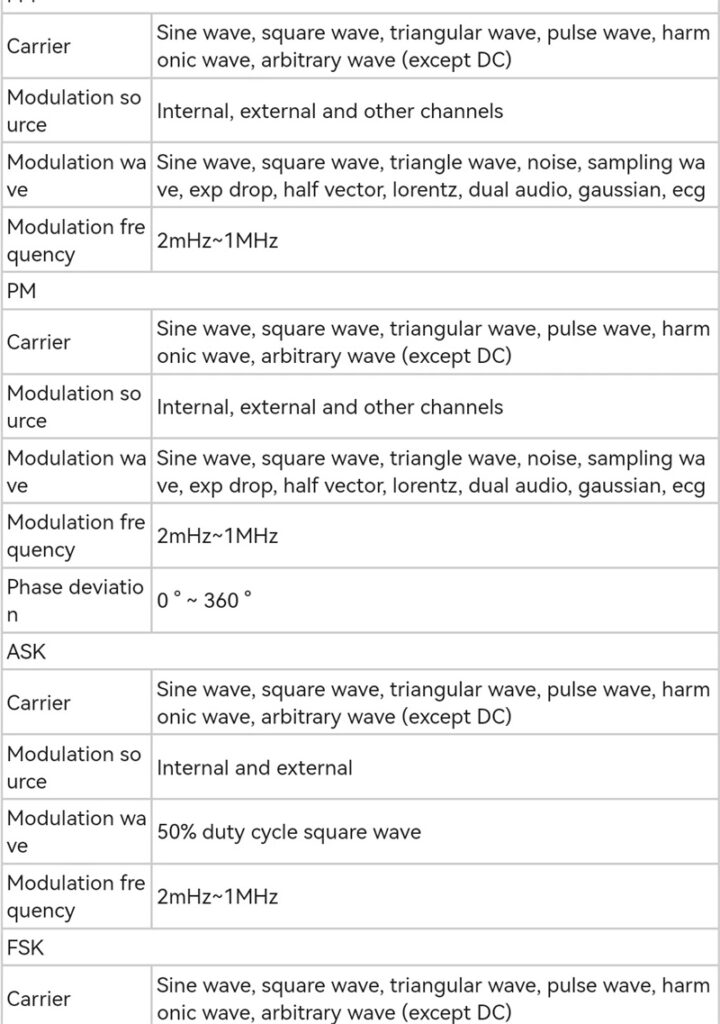

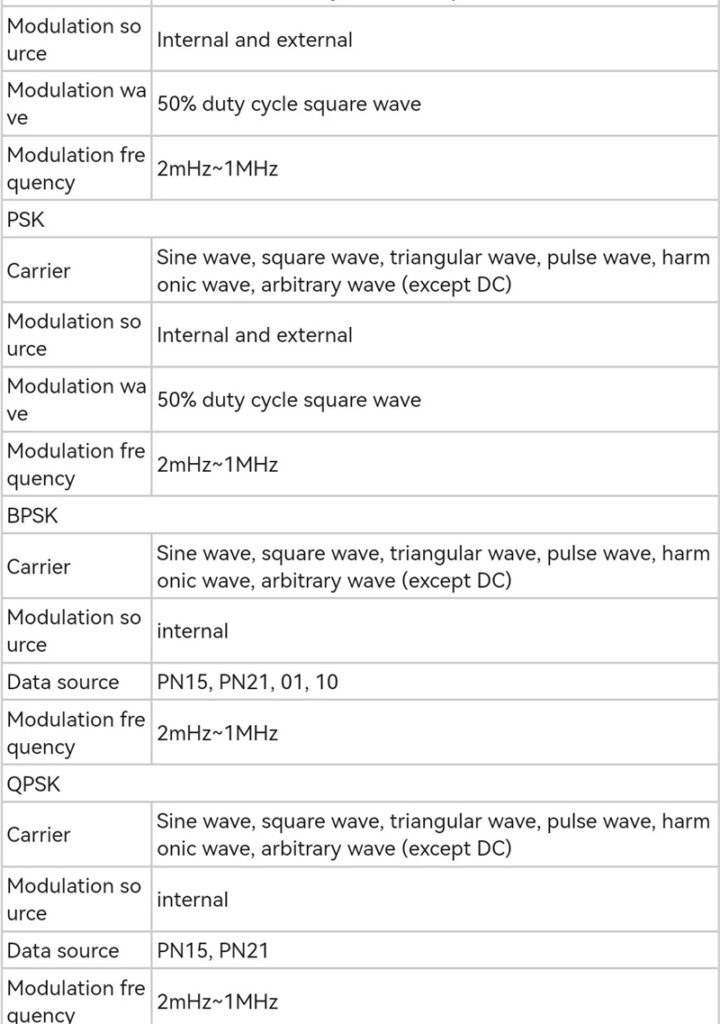

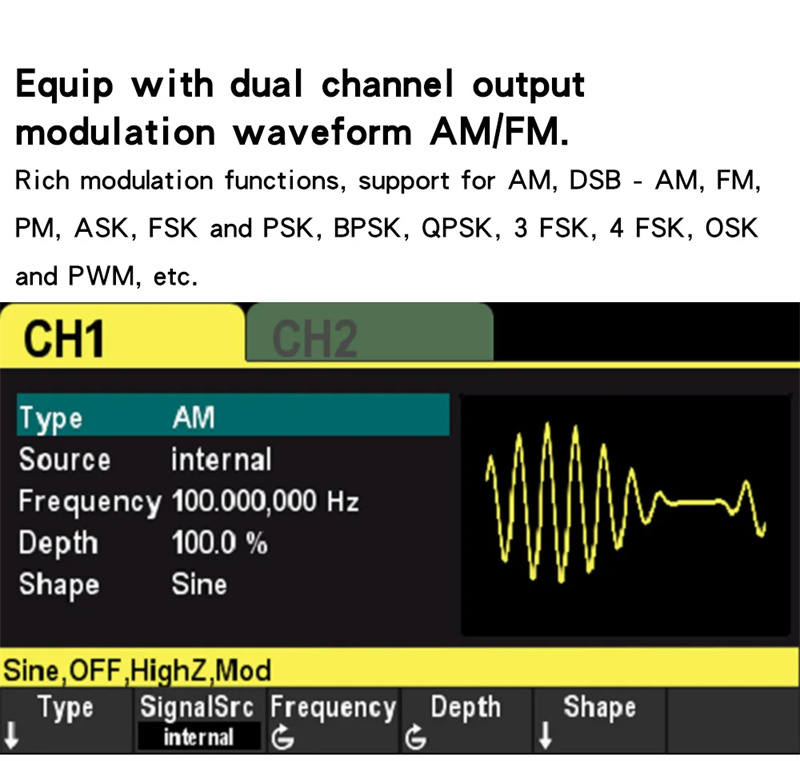

Rich modulation function, support for AM, DSB – AM, FM, PM, ASK, FSK and PSK, BPSK, QPSK, 3 FSK, 4 FSK, OSK and PWM, etc.

1μHz frequency resolution: When the impedance is high, the amplitude range is 2mV~20Vpp. When the impedance is 50Ω, the amplitude range is 1mV~10Vpp.

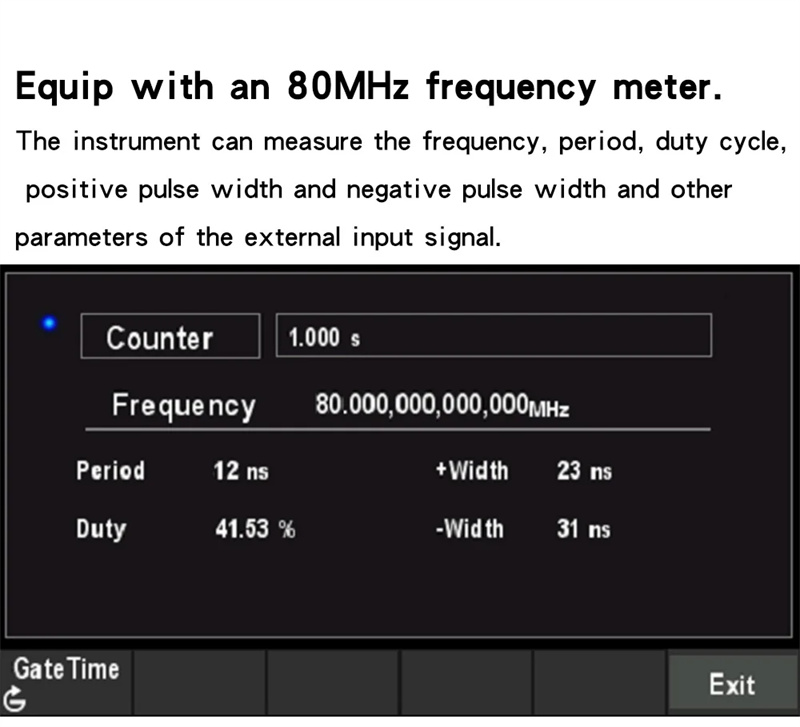

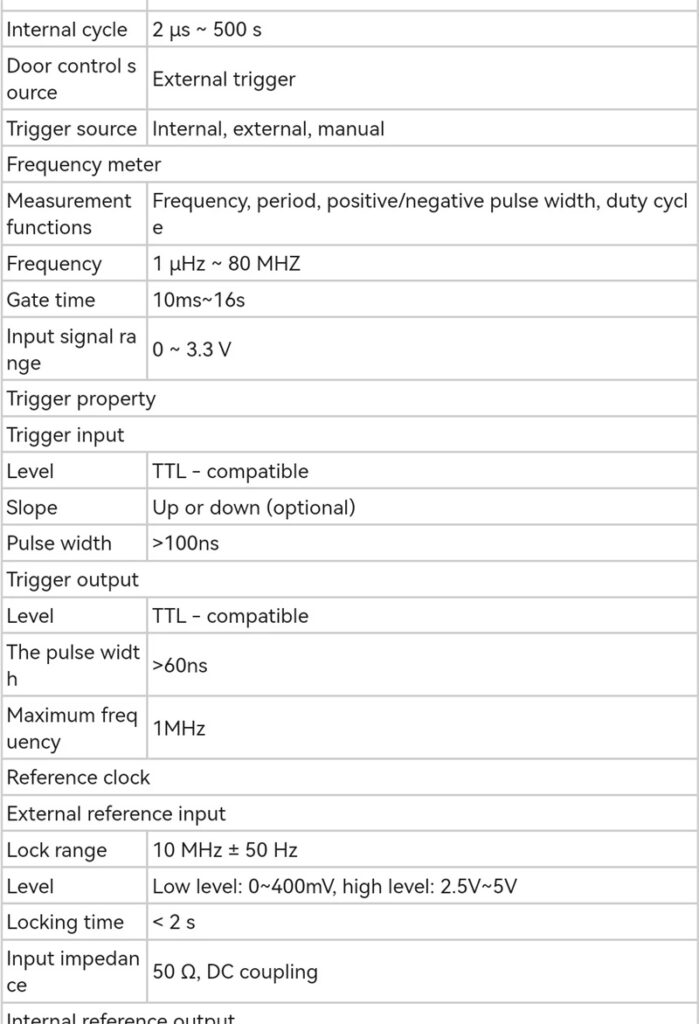

Built-in 80MHz high-resolution frequency meter.

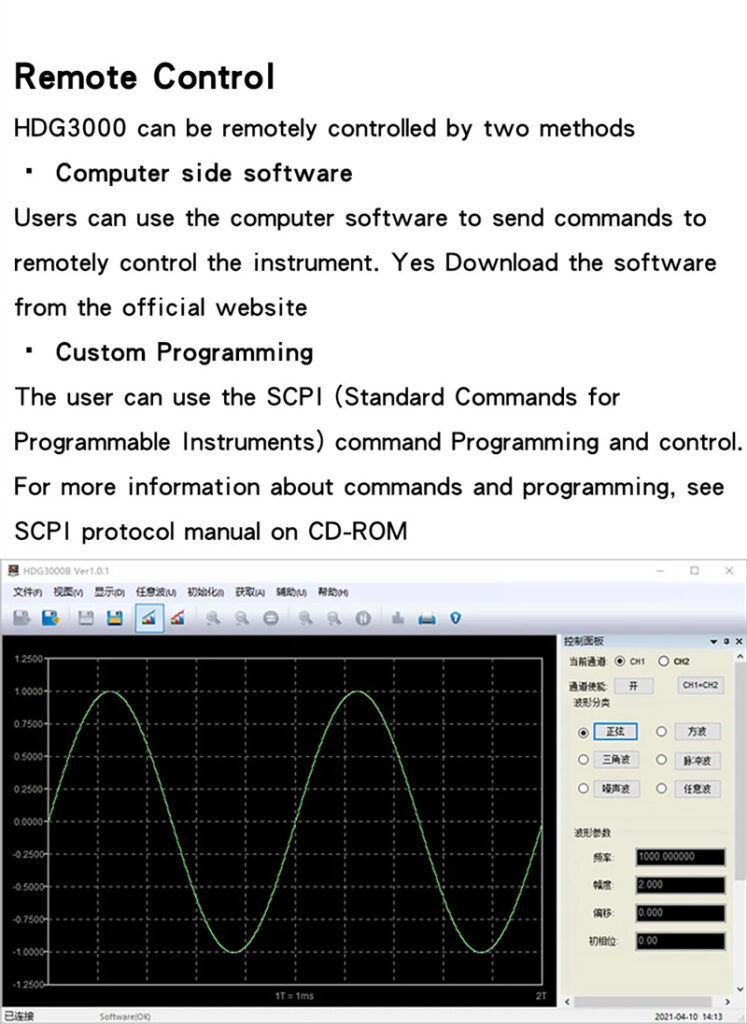

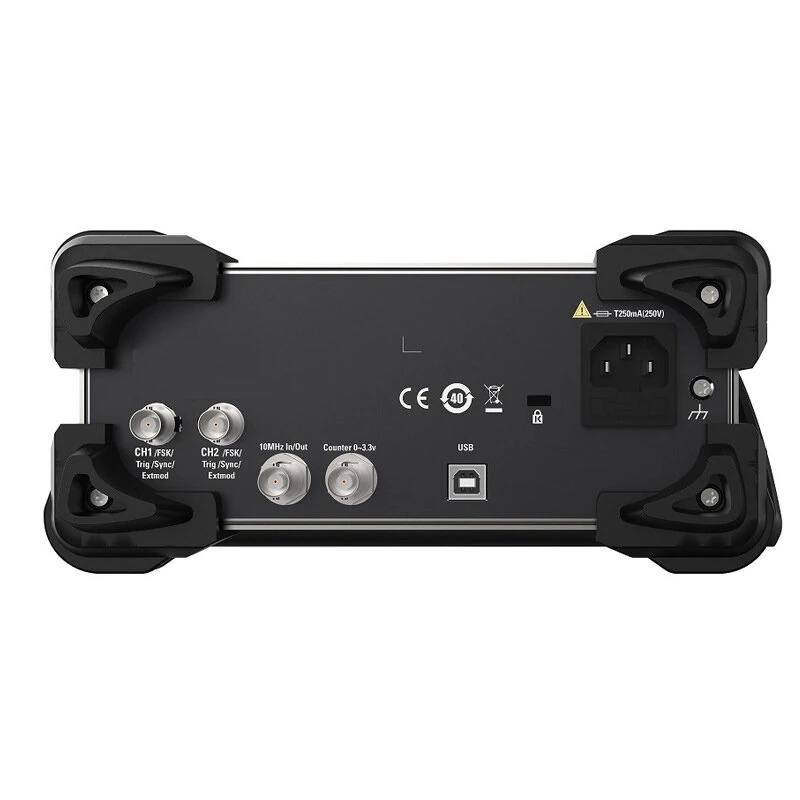

Standard communication interface: front USB 2.0 high speed (USB Host) and rear USB 2.0 full speed (USB Device).

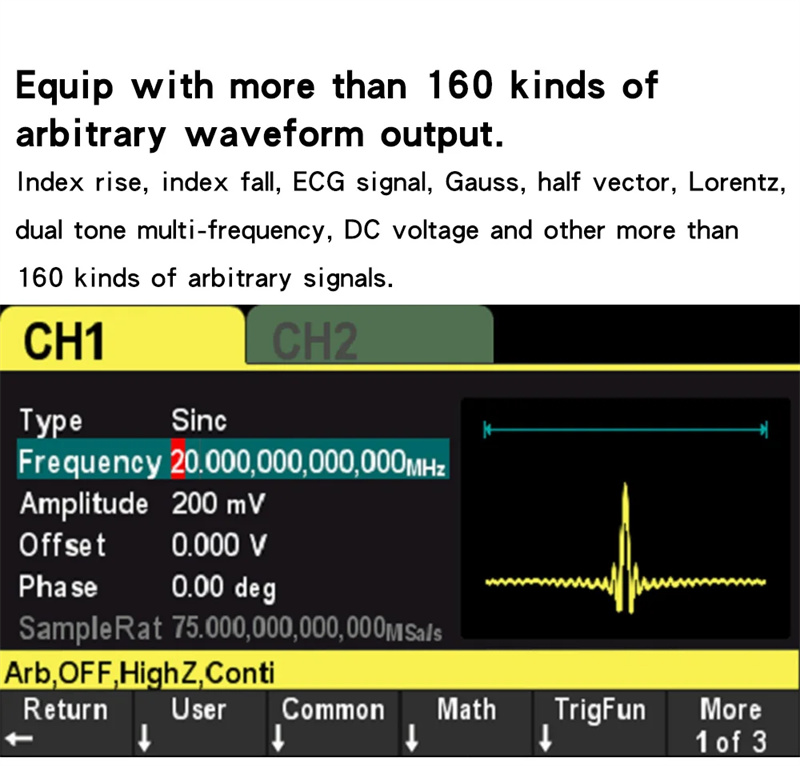

More than 160 kinds of arbitrary signals, such as exponential rise, exponential decline, ECG signal, Gaussian, semi-positive vector, Lorentz, dual-tone multi-frequency, DC voltage, etc.

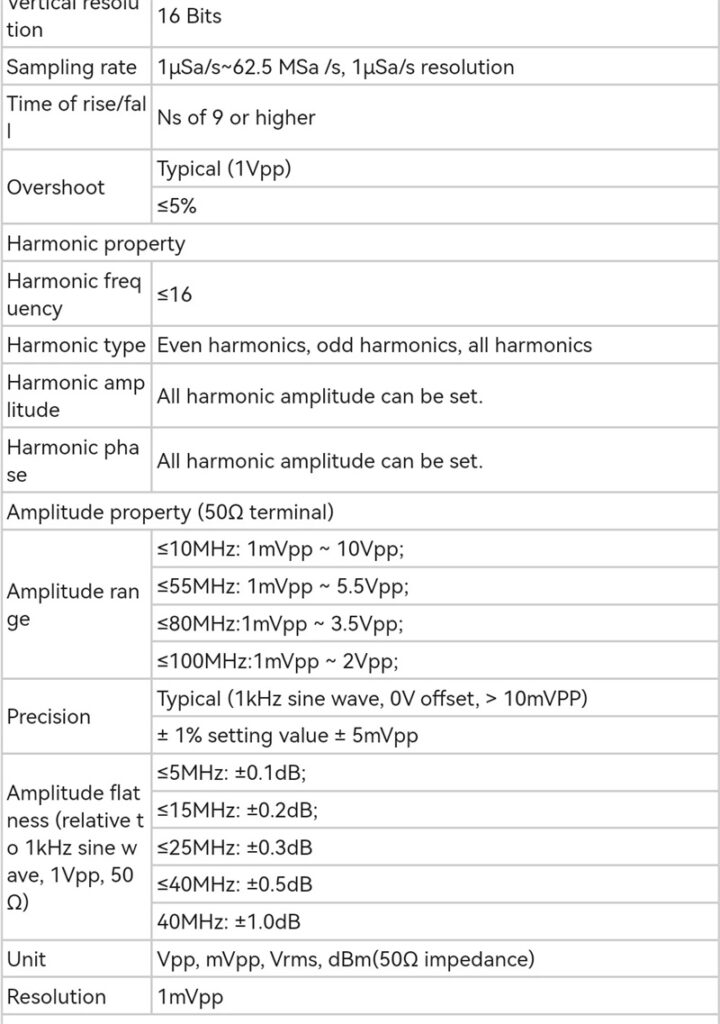

Built-in 16 harmonic generator function, output with specified frequency, amplitude and phase of harmonics, usually used in harmonic detection equipment or harmonic filter equipment test.

Hantek HDG3012B Arbitrary Waveform Generator Features:

Multi-Functional Design: Integrates five major functions including waveform generation and frequency measurement, making it a versatile tool for various applications in a compact device.

High-Resolution Output: Utilizes DDS technology for stable and low-distortion signal generation, ensuring accurate amplitude and frequency for precise measurements and experiments.

Extensive Modulation Capabilities: Supports a wide range of modulation techniques such as AM, FM, and PWM, catering to diverse testing needs and ensuring adaptability in various scenarios.

Rich Arbitrary Waveforms: More than 160 types of arbitrary waveforms available, including ECG and Gaussian signals, providing flexibility for testing and research applications.

User-Friendly Interface: Features a clear 4.3-inch color TFT LCD display with intuitive navigation, enhancing user experience and making operation straightforward for all skill levels.

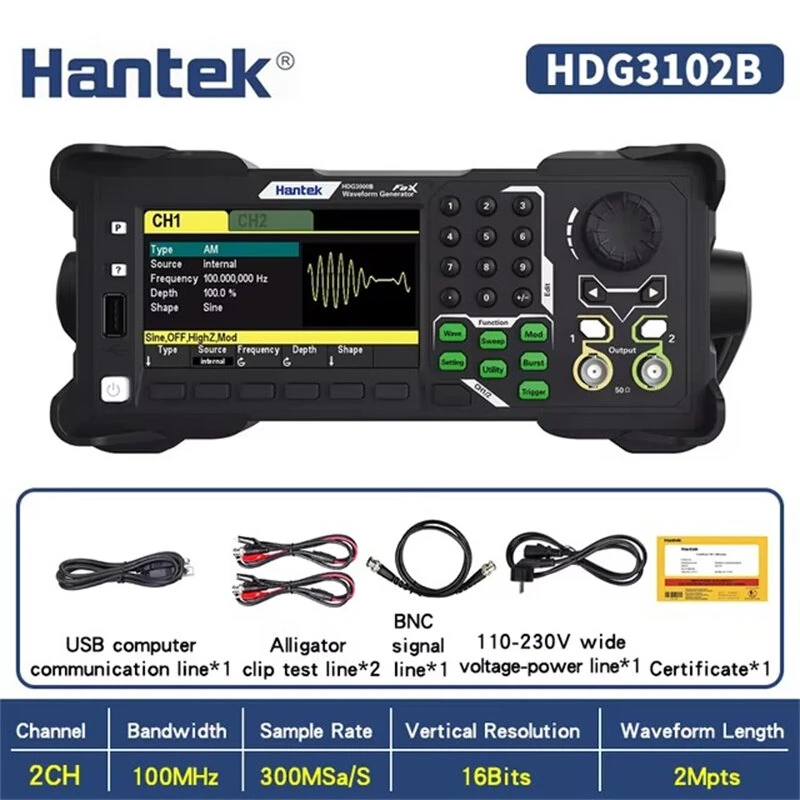

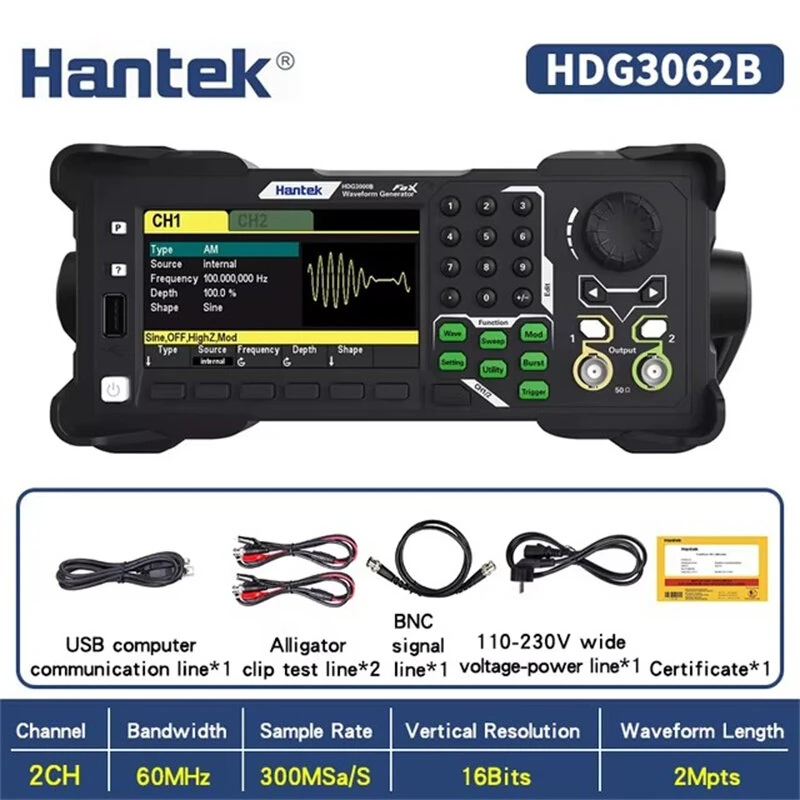

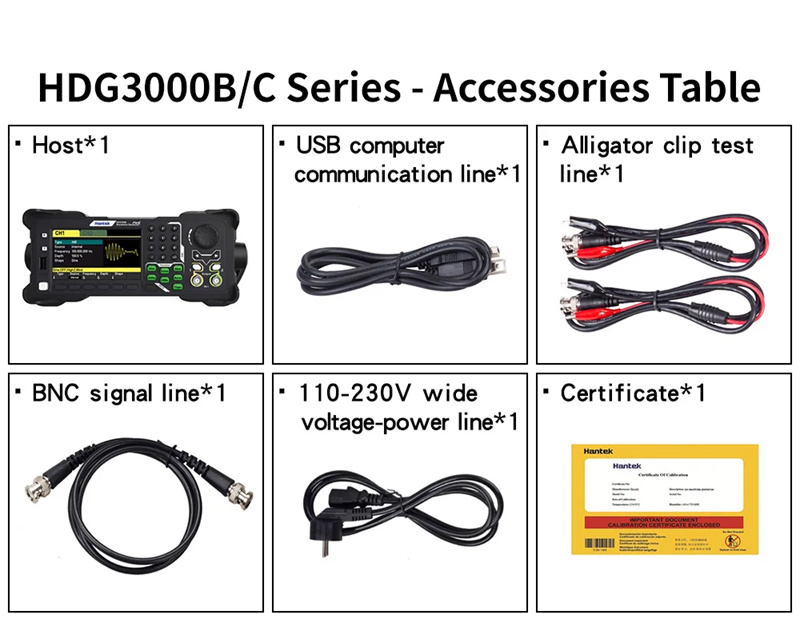

Hantek HDG3012B Arbitrary Waveform Generator Package Included:

Type A: HDG3012B

1 x Hantek 5 in 1 Arbitrary Waveform Generator

1 x Power Adapter

1 x User Manual

1 x USB Cable

1 x BNC Cable

Type B: HDG3022B

1 x Hantek 5 in 1 Arbitrary Waveform Generator

1 x Power Adapter

1 x User Manual

1 x USB Cable

1 x BNC Cable

Type C: HDG3042B

1 x Hantek 5 in 1 Arbitrary Waveform Generator

1 x Power Adapter

1 x User Manual

1 x USB Cable

1 x BNC Cable

Type D: HDG3062B

1 x Hantek 5 in 1 Arbitrary Waveform Generator

1 x Power Adapter

1 x User Manual

1 x USB Cable

1 x BNC Cable

Type E: HDG3082B

1 x Hantek 5 in 1 Arbitrary Waveform Generator

1 x Power Adapter

1 x User Manual

1 x USB Cable

1 x BNC Cable

Type F: HDG3102B

1 x Hantek 5 in 1 Arbitrary Waveform Generator

1 x Power Adapter

1 x User Manual

1 x USB Cable

1 x BNC Cable
