CAT ET III Caterpillar ET Diagnostic Adapter 3 with Wi-Fi Truck Diagnostic Tool CAT ET 3 With V2019A/V2024A Software

CAT Caterpillar ET 3 Diagnostic Adapter is the latest generation of the CAT Communication Adapter Group, replaces the CAT Comm Adapter II.

Cat ET III Adapter 3 Recommended Configurations:

PC containing a 2.0 GHz dual-core processor
3GB RAM
3GB of available hard disk drive
DVD-ROM drive
15.4-inch XGA Screen (1280×1024 compatible)
Microsoft Windows™ 7 Professional or Windows 8 Professional (Note: Windows 8 RT is not supported)
RS232 port with 16550AF UART or compatible (for use with Comm Adapter II)
USB 1.1 or 2.0 port (for use with Comm Adapter 3)
Ethernet RJ45 connector
Built-in pointing device or mouse
For security purposes, Microsoft Internet Explorer version 9 or newer is recommended.

CAT Caterpillar ET Diagnostic Adapter III Features:

Display graph and log status parameters.

Retrieve prognostic data including histograms, engine totals for fuel used and miles traveled.

View active diagnostics and clear logged diagnostics. View events where irregularities have occurred and have been logged by the ECM.

Perform calibrations to enhance the performance of the ECM.

Customize the ECM with application-specific settings.

Over 100 custom Diagnostic, Information and Service features including:

2D and 3D Histogram plotting capability (engine software support required).

Custom Status screen groups

Snapshots (Download and display snapshot data recorded by the ECM)

Configuration Aid that allows upload/download of the same configuration to multiple control modules

Customized Service Tool Options

Customized service tool name

Customized graphics for the splash screen and icons

Customized installation

Aftermarket differentiation, the tool for one customer does not work on the product of another customer.

Licensing options for customer management

Flash programming of the ECM(s)

Training demonstration allows familiarity with the tool’s primary functions without connecting to ECM(s)

Major operating systems support (Microsoft Windows 95, 98, NT 4.0, 2000, ME, & XP)

Perform customized diagnostic tests to identify harness problems, cylinder or component failures (Automatic Cylinder Cutout with cylinder-to-cylinder fueling comparison)

Wifi Cat ET III Adapter 3 Functions:

• 1. ECM Summary screen lists every control module on equipment
• 2. Being tested and giving information on these modules.
• 3. Fast hookup and real-time display of systems status. Displays, readings such as rpm, boost, pressures, temperatures, etc. for Easy troubleshooting.
• 4. Identifies faulty sensors, harness connectors, and system parameters that are out of specification. Allows customers
• 5. To help dealers identify problems without visiting machines.
• 6. Identifies intermittent sensors and wiring problems during Machine operation and keeps a record of each one. Shows when the problem occurred and how often it happened.
• 7. Added information to allow customers to assist dealers in diagnosing and repairing problems. (Troubeshooting Help is not built in with in the program, you will still need to go back to books in order to follow a repair description and steps in each Fault Code display within the program).English and metric units of measure integrated help file to easily learn the “How To” around the software.

CAT Adapter 3 Caterpillar ET Truck Diagnostic Tool Software:

1. Latest Version: 2024A

We have different Cat ET software for choice:

With 2019A/2019C Software  and  With 2023A/2024A Software

You can instll the software by yourself and contact us for activation.

2. Operate System: Windows XP/Windows7

3. Cat ET3 Software Supported Language: English, Chinese, Danish, French, German, Italian, Japanese, Portuguese, Russian, Spanishl

4. Support All Caterpillar models.

The Advantage of the 2023A/2024A Cat ET software:

CAT 2023 version software includes Caterpillar Cat factory password generator 10 digit pw, you can press the ctrl+f2 shortcut to bring it up.

Caterpillar electronic technician 2023A with WinFlash future is an updated version of the caterpillar dealer diagnostic software that can help technicians to diagnose existing and potential problems with their electronically controlled Caterpillar Engines and Machines.

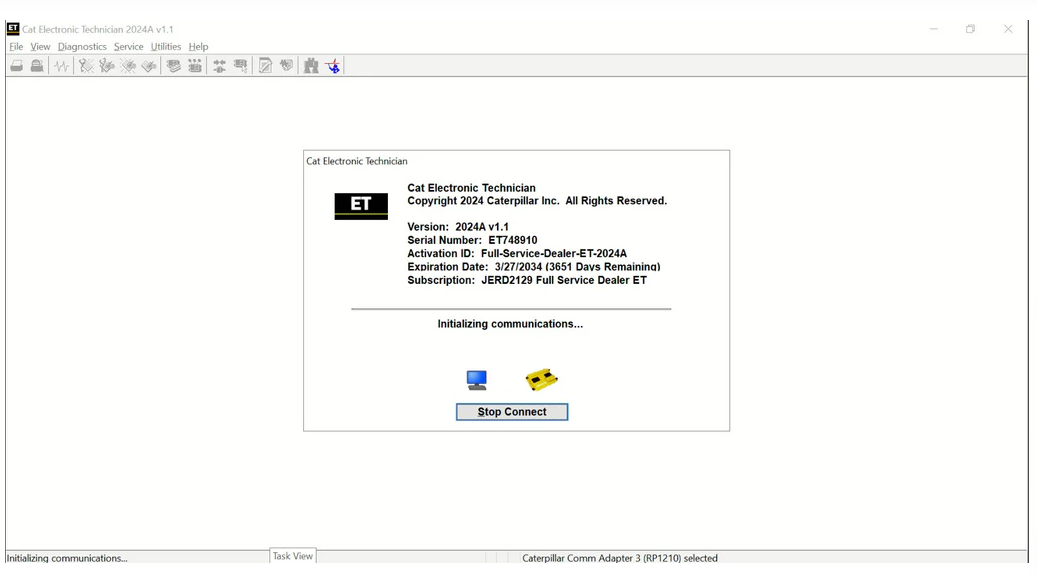

2024A Caterpillar Electronic Technician software With CAT ET 3 Cat caterpillar adapter 3 support caterpillar diagnostic till 2024.

Wifi Cat ET III Adapter 3 Communication:

1. Allows communication between service tools and engine controls using various data links such as J1939/11, DeviceNet (future release), CAT DataLink, and J1708 (ATA) vehicle networks;

2. Flash program allows adapter firmware upgrades as additional features become available;

3. Uses J1939/11, high-speed data link (part of ADEM III controls), substantially reducing flash times;



4. Automatically selects J1939/11 when flashing the engine (reduces the flash time by approximately 80%, from 14 minutes to 3 minutes).

Wifi Cat ET III Adapter 3 Installation Steps:

• 1. Install ET2015A
• 2. Disable Antivirus
• 3. Open NetworkSISID_2012
• 4. Check your MAC Adress network card Place this id 0018f3908eee
• 5. Copy files Comet.exe and CometDLL.dll, replace in this folder C: Program FilesCommon FilesOffboard Information Products2013AComet x64 Windows – C: Program Files (x86) Common FilesOffboard Information Products2013AComet
• 6. Copy files Flashsever.dll and CometDLL.dll, replace in this folder C: Program FilesCommon FilesOffboard Information Products2013AFlash x64 Windowa – C: Program Files (x86) Common FilesOffboard Information Products2013AFlash
• 7. Create the folder in C: flexlm
• 8. On hard drive C:// ( main root) create folder with folder flexlm
• 9. Setup environment variable catlmd_LICENSE_FILE to your license file path

• 10. Copy file license.dat to in C:flexlm
• 11. Run ETNote:
• • Functionalities Show all operating conditions that cause high repair costs such as: Over speeds, high temperatures, fuel consumption, and transmission shift counts. This can provide awareness to change operator.
  • “ET Trainer” is now included in ET Program. It allows Users to train and practice using  ET without a Communications adapter or Electronic Control Module (ECM).This is a free feature of  ET.
  • Engines:

Engines:
Electric Power
Electric Power Generation
Industrial
Marine Power Systems
Oil and Gas

Machines:
Articulated Trucks
Asphalt Pavers
Backhoe Loaders
Cold Planers
Compactors
Dozers
Drills
Excavators
Feller Bunchers
Forest Machines
Forwarders
Harvesters
Hydraulic Mining Shovels
Knuckleboom Loaders
Material Handlers
Motor Graders
Off-Highway Trucks

Pipelayers
Road Reclaimers
Site Prep Tractors
Skid Steer and Compact Track Loaders
Skidders
Telehandlers
Track Loaders
Underground – Hard Rock
Underground – Long wall
Underground – Room and Pillar
Utility Vehicles
Wheel Dozers
Wheel Excavators
Wheel Loaders
Wheel Tractor-Scrapers

Cat ET III Adapter 3 Package:

1pc x CAT Comm Adapter III (Real CAT et3 )
1pc x CD for installing the  Caterpillar ET 3 drivers
1pc x USB Cable ( From device to your computer)
1pc x J1939/J1708 Cable  (from device to your truck)
1pc x 6PIN Cable (for old truck)
1pc x 14PIN Cable (for new truck)
1pc x WIFI adapter （option）
