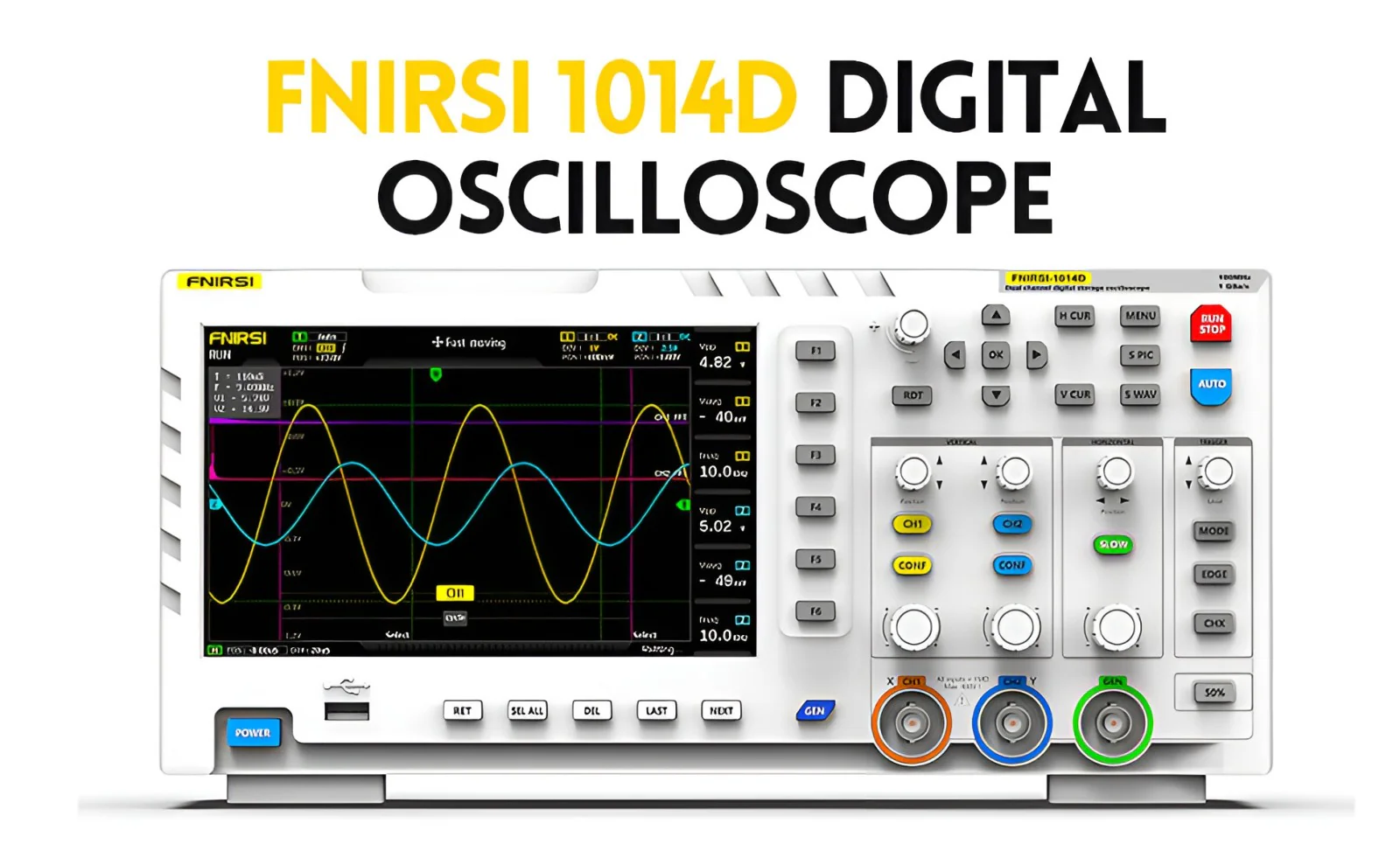

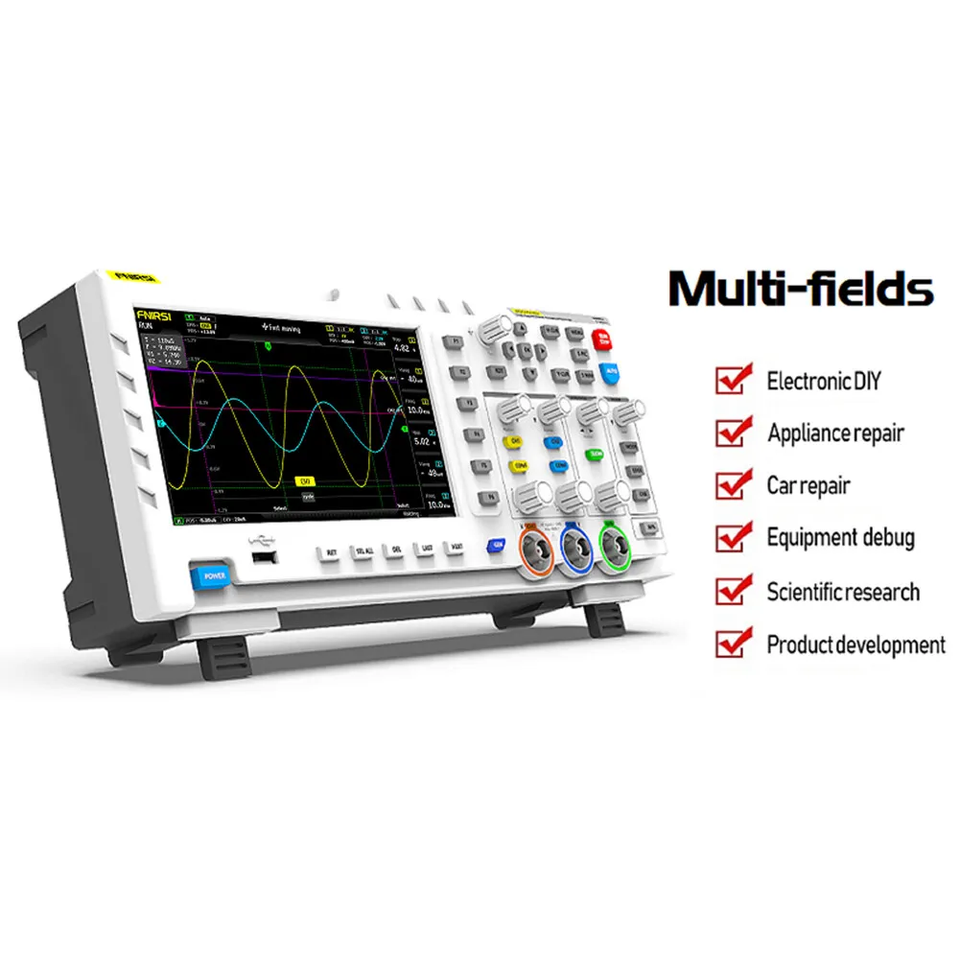

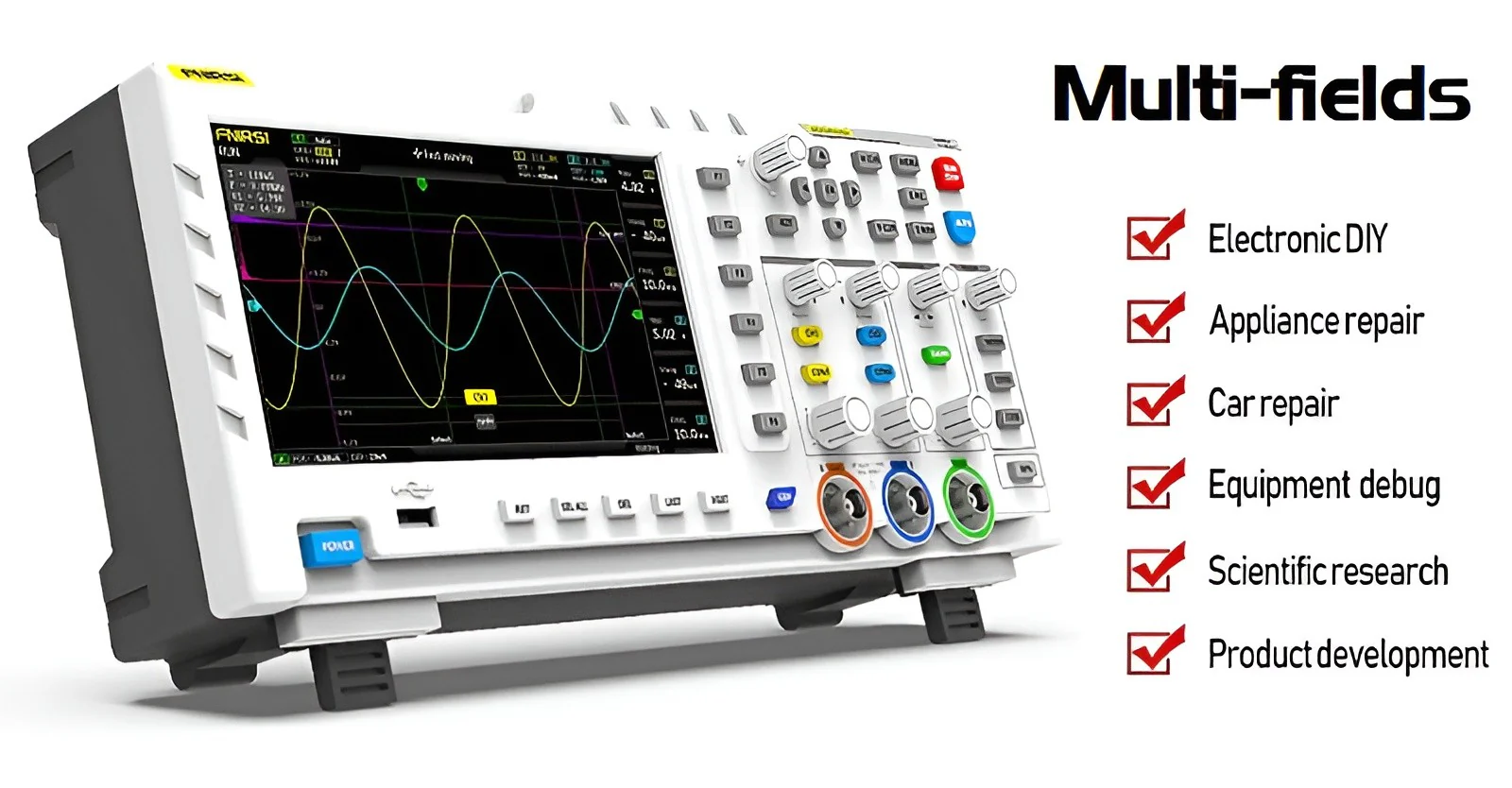

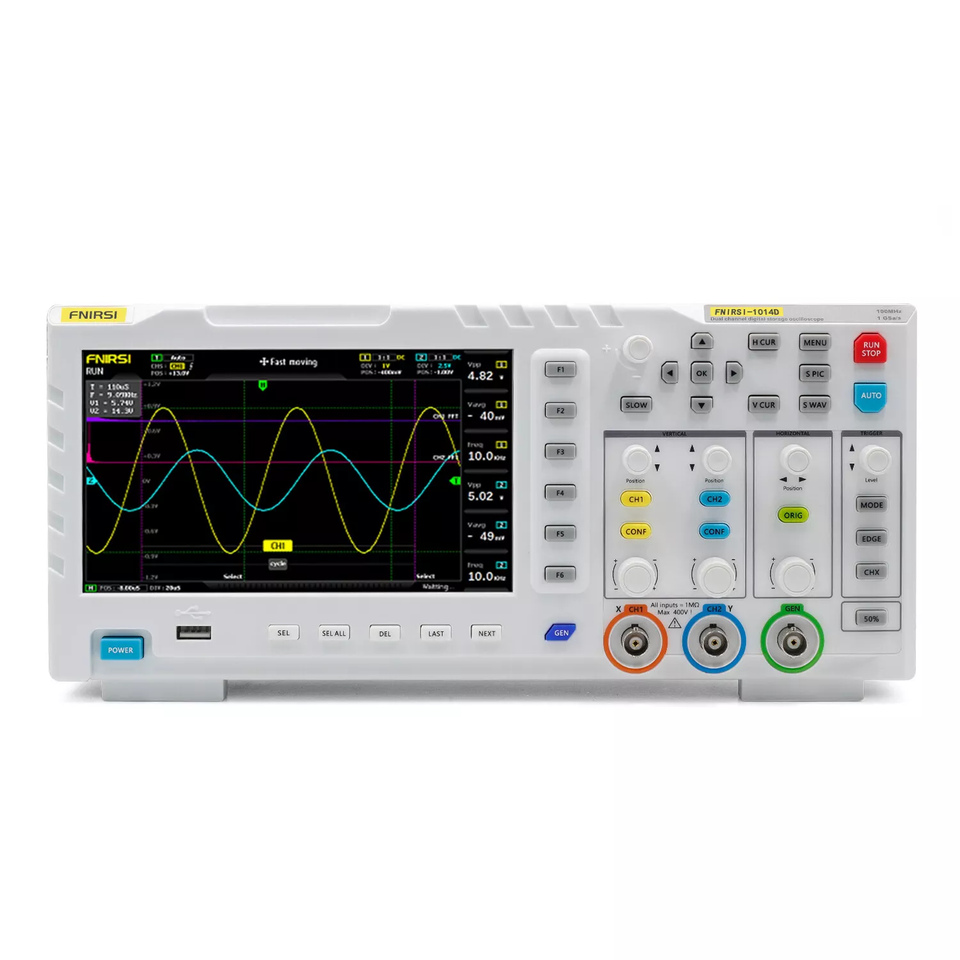

FNIRSI 1014D Digital Storage Oscilloscope 2 Channel 100MHz FNIRSI 1014D Oscilloscope 2 in 1 Digital Oscilloscope DDS Signal Generator support 14 kinds of function signals and a customizable chopping signal

描述

FNIRSI 1014D Digital Storage Oscilloscope 2 Channel 100MHz can be used freely for both periodic analog signals and aperiodic digital signals. FNIRSI 1014D Oscilloscope 2 in 1 Digital Oscilloscope DDS Signal Generator support 14 kinds of function signals and a customizable chopping signal. CheShiTech.com FNIRSI 1014D Digital Dual Channel Oscilloscope & Signal Generator 1014D FNIRSI Digital Oscilloscope Signal Generator can be triggered by single/normal/automatic.

FNIRSI 1014D Digital Storage Oscilloscope 2 Channel 100MHz FNIRSI 1014D Oscilloscope 2 in 1 Digital Oscilloscope DDS Signal Generator support 14 kinds of function signals and a customizable chopping signal

CheShiTech.com FNIRSI 1014D Digital Dual Channel Oscilloscope & Signal Generator 1014D FNIRSI Digital Oscilloscope Signal Generator can be triggered by single/normal/automatic

FNIRSI 1014D Digital Storage Oscilloscope 2 Channel 100MHz Highlights

✦ Fnirsi oscilloscope has a real-time sampling rate of up to 1GSA/S and an analog bandwidth of 100MHZ * 2. Fnirsi oscilloscope can be triggered by single/normal/automatic, it can be used freely for both periodic analog signals and aperiodic digital signals.

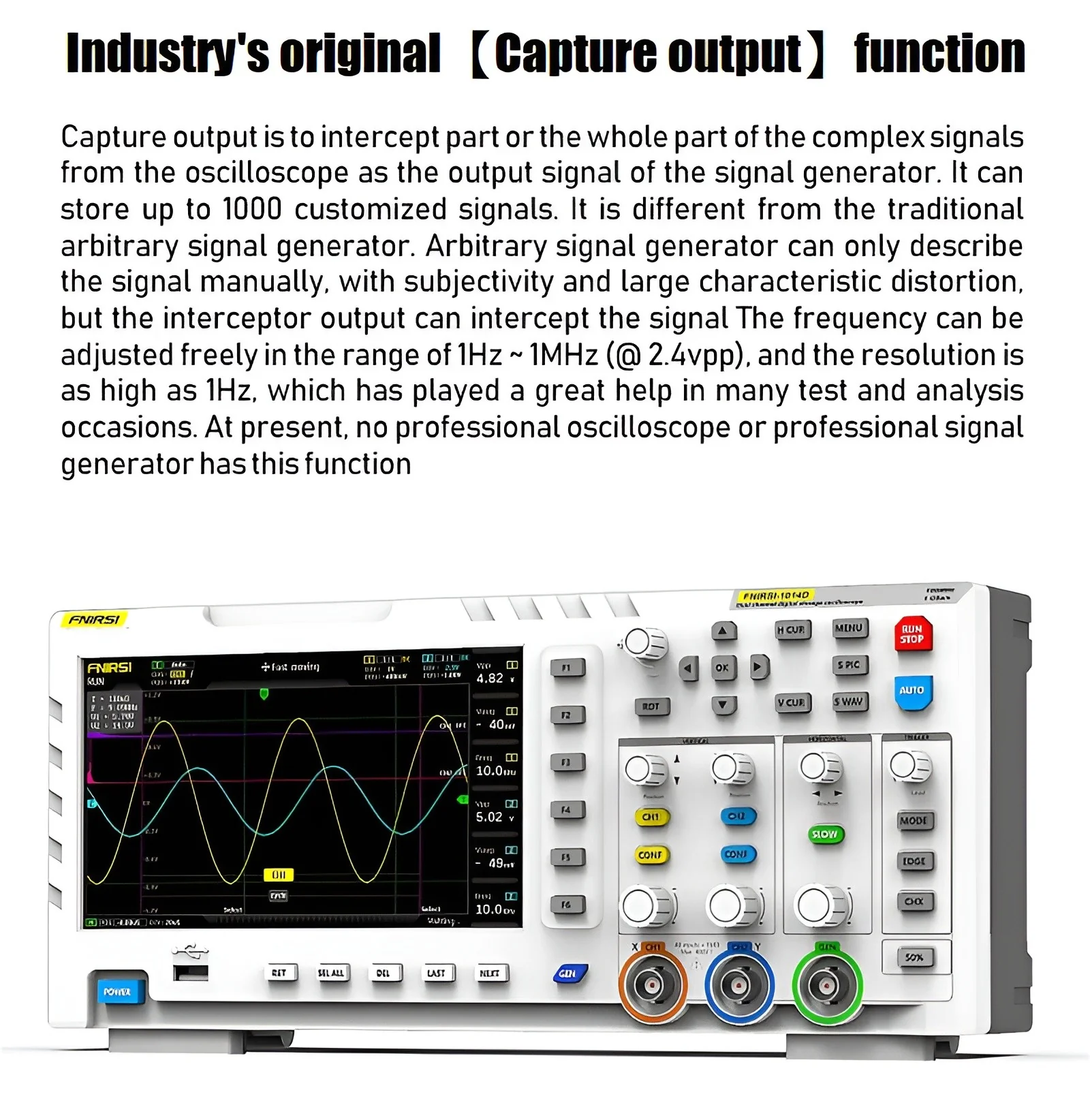

✦ DDS Function Signal Generator : Chopping output 2.5 VPP, signal frequency steps are 1 HZ, support 14 kinds of function signals and a customizable chopping signal, which can store up to 1000 customized chopping signals.

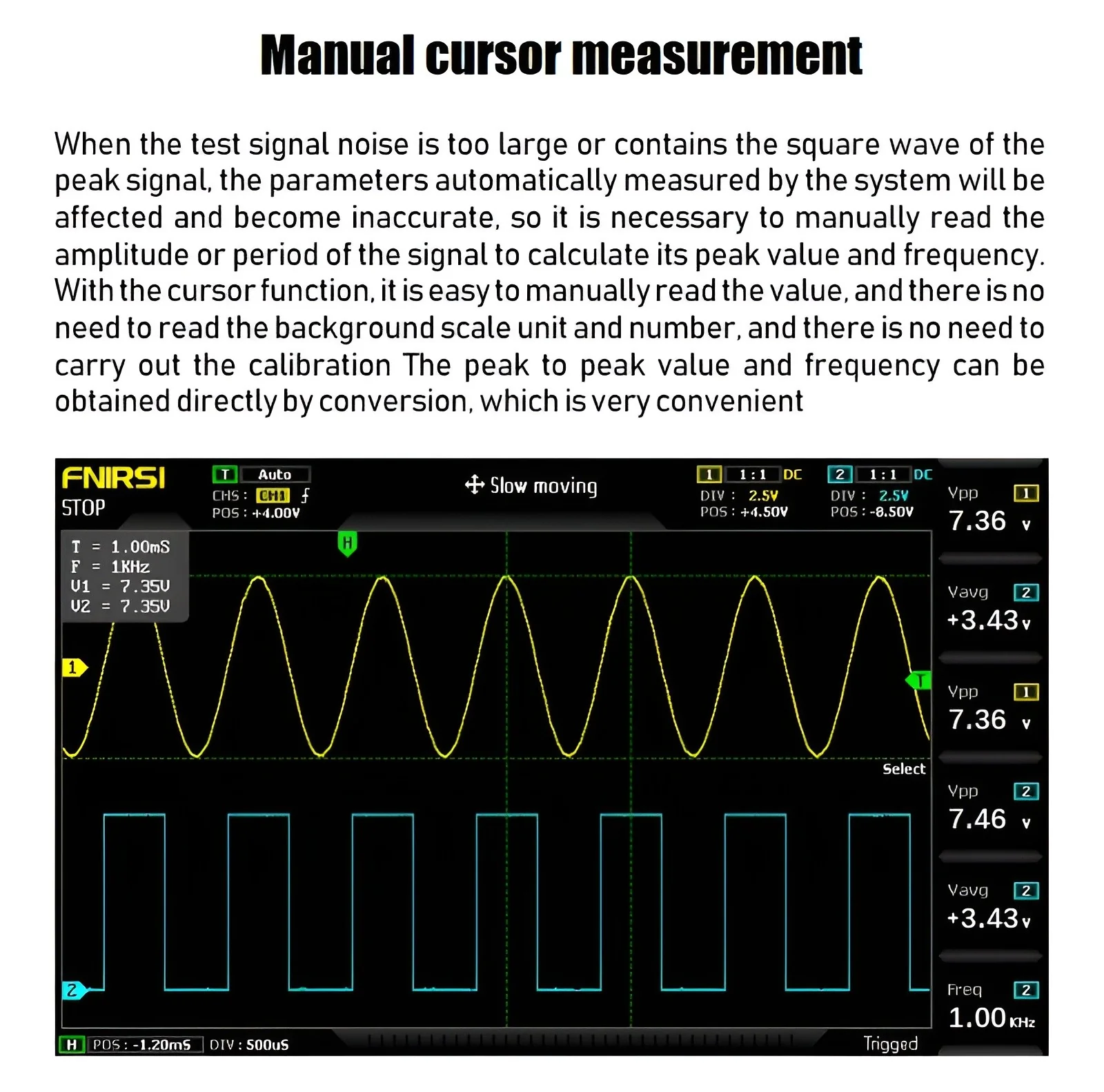

✦ Easily Measuring : Cursor measurement function, when manually reading amplitude-frequency parameters, you do not need to read the background scale unit and quantity, and you can directly get the peak-to-peak value and frequency without conversion.

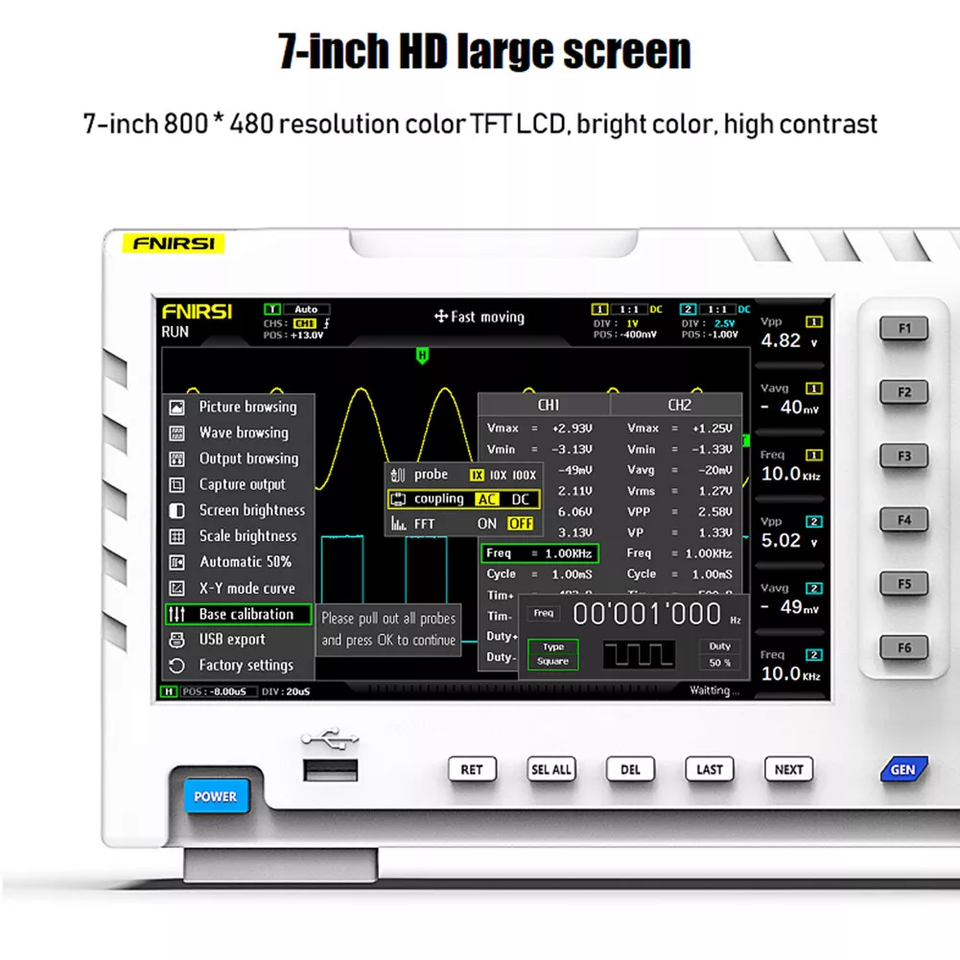

✦ Easy to Observe : Equipped with high-efficiency one-button AUTO, adaptive 25%, 50%, 75% trigger, can display the measured waveform without cumbersome adjustment; the display is equipped with a 7-inch 800*480 resolution high-definition LCD screen.

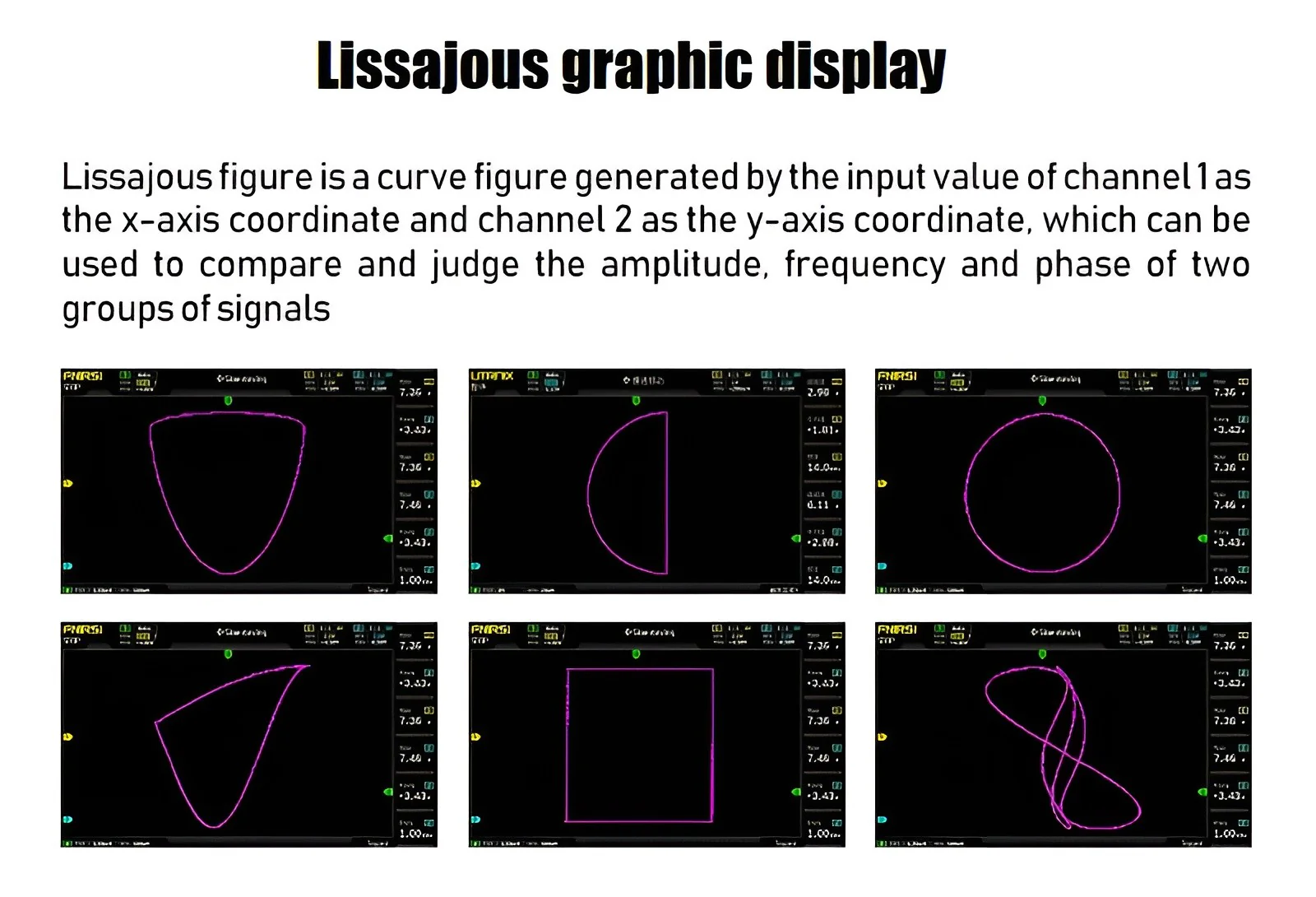

✦ Lissajous Graphic Display & FFT Viewing: Lissajous graphic display function can be used to compare the amplitude, frequency and phase of the two sets of signals. FFT viewing function can roughly estimation of the harmonic content of the signal.

FNIRSI 1014D Oscilloscope 2 in 1 Digital Oscilloscope DDS Signal Generator Details:

*Advanced Signal Analysis and Generation**
The FNIRSI-1014D Digital Oscilloscope is a versatile tool designed for both hobbyists and professionals in the electrical field. With a dual channel input and a 100MHz*2 analog bandwidth, this oscilloscope is capable of capturing signals with precision and clarity. The 1GSa/s real-time sampling rate ensures that even the fastest signals are captured without any loss of detail. The oscilloscope’s trigger modes, including single, normal, and auto, allow for flexible triggering options, making it suitable for both periodic and aperiodic signals.

**Comprehensive Signal Generation and Storage**
The FNIRSI-1014D oscilloscope is not just a signal analyzer; it doubles as a signal generator. With its built-in DDS function, it can produce 12 standard function signals and a customizable chopping signal. The chopping output feature, with a 2.5vpp amplitude, is particularly useful for generating irregular shaped signals. The oscilloscope’s storage depth of 240Kbit and 1GB storage space allow for the storage of up to 1000 screenshots and 1000 sets of waveform data, making it an ideal tool for capturing and analyzing complex signals.

**User-Friendly Interface and Convenience**
The oscilloscope’s user-friendly interface is designed to enhance the user experience. The 7-inch 800 * 480 resolution color TFT LCD display provides bright and clear visuals, while the cursor measurement function simplifies manual reading of amplitude and frequency parameters. The one-button auto feature automatically adjusts the oscilloscope for optimal viewing, and the one-button waveform storage and screenshot function make it easy to capture and save important waveforms. The powerful waveform image manager allows for efficient browsing, viewing, and analysis of captured signals, making it a valuable tool for both hobbyists and professionals.

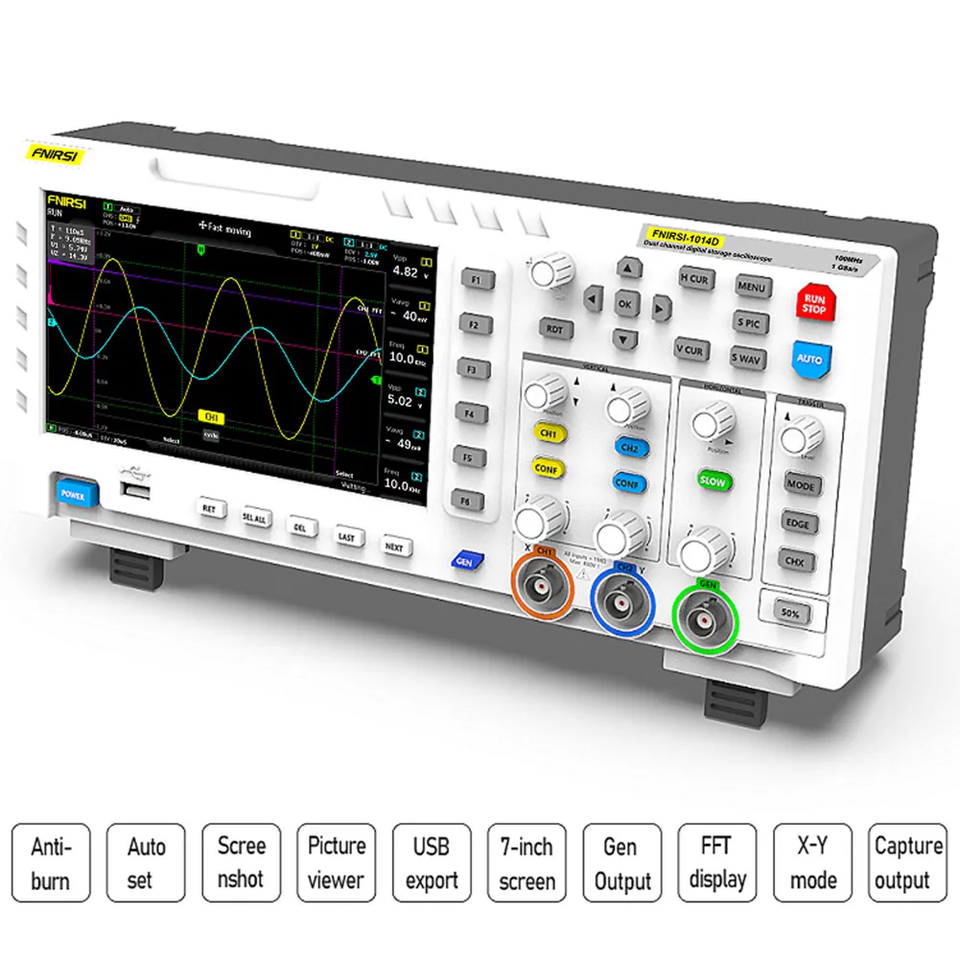

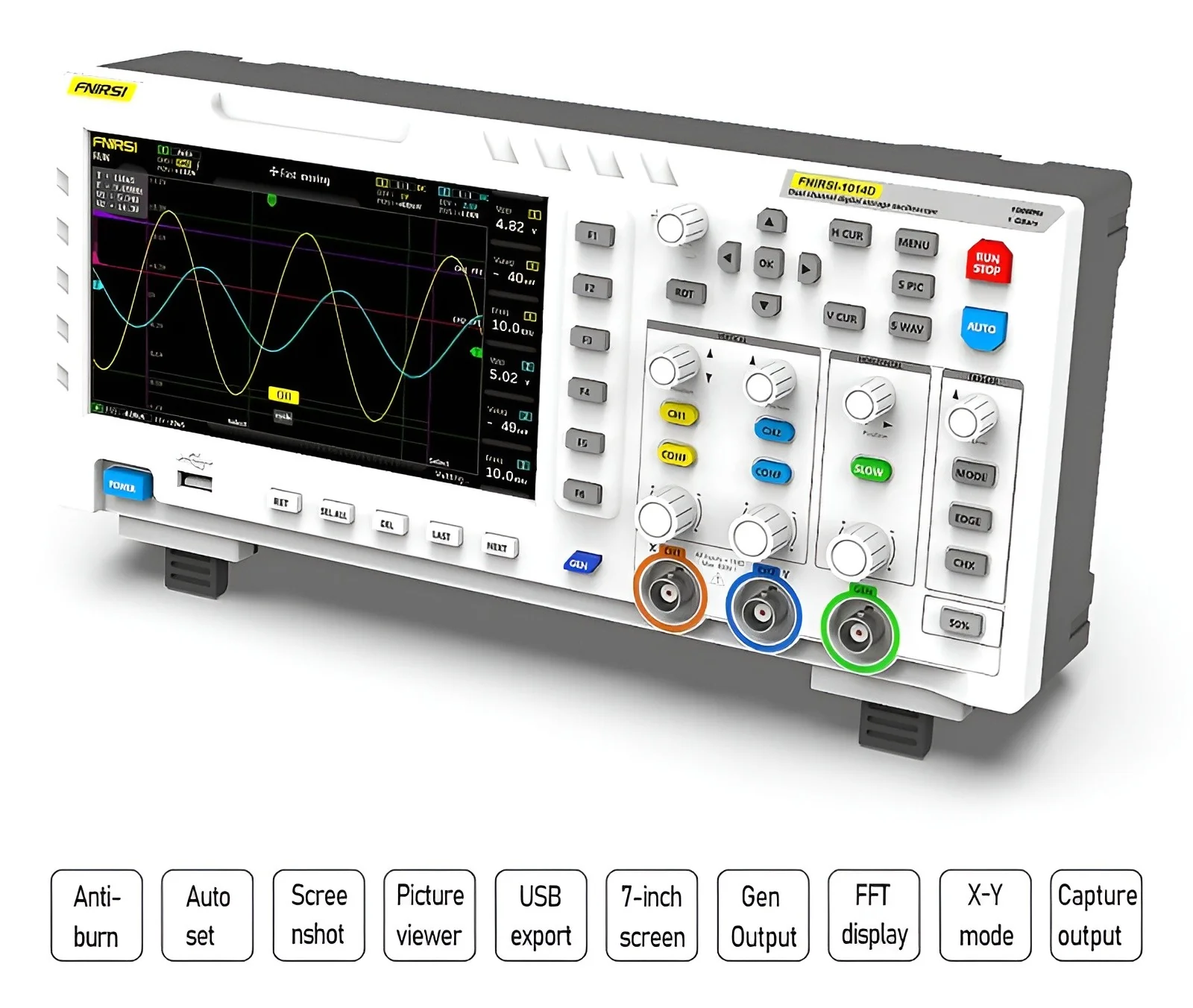

FNIRSI 1014D Digital Dual Channel Oscilloscope & Signal Generator Features:

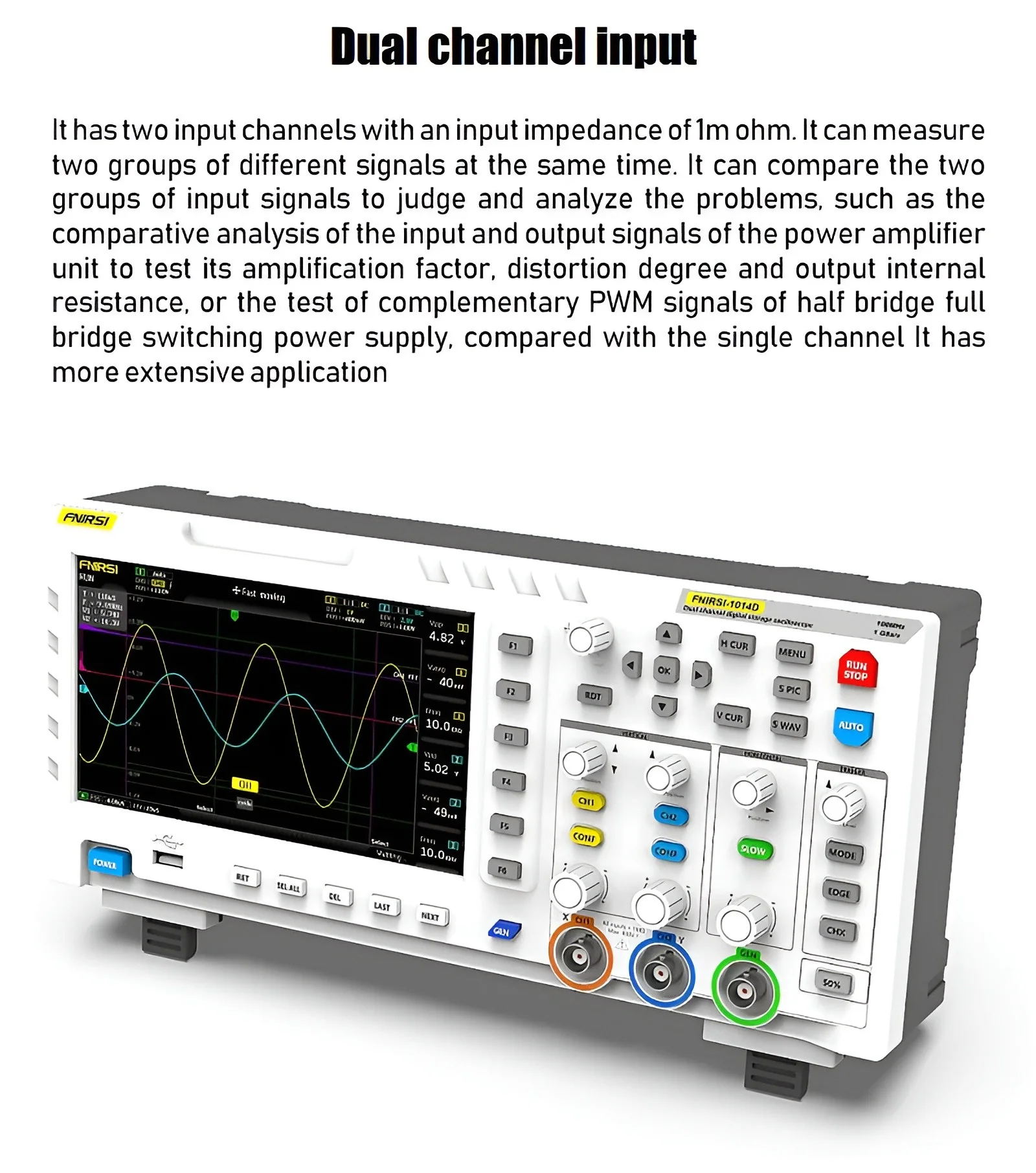

Dual Channel
2 in 1: Digital Oscilloscope + DDS Function Signal Generator
1GSA/S sampling rate, 100MHz * 2 analog bandwidth.

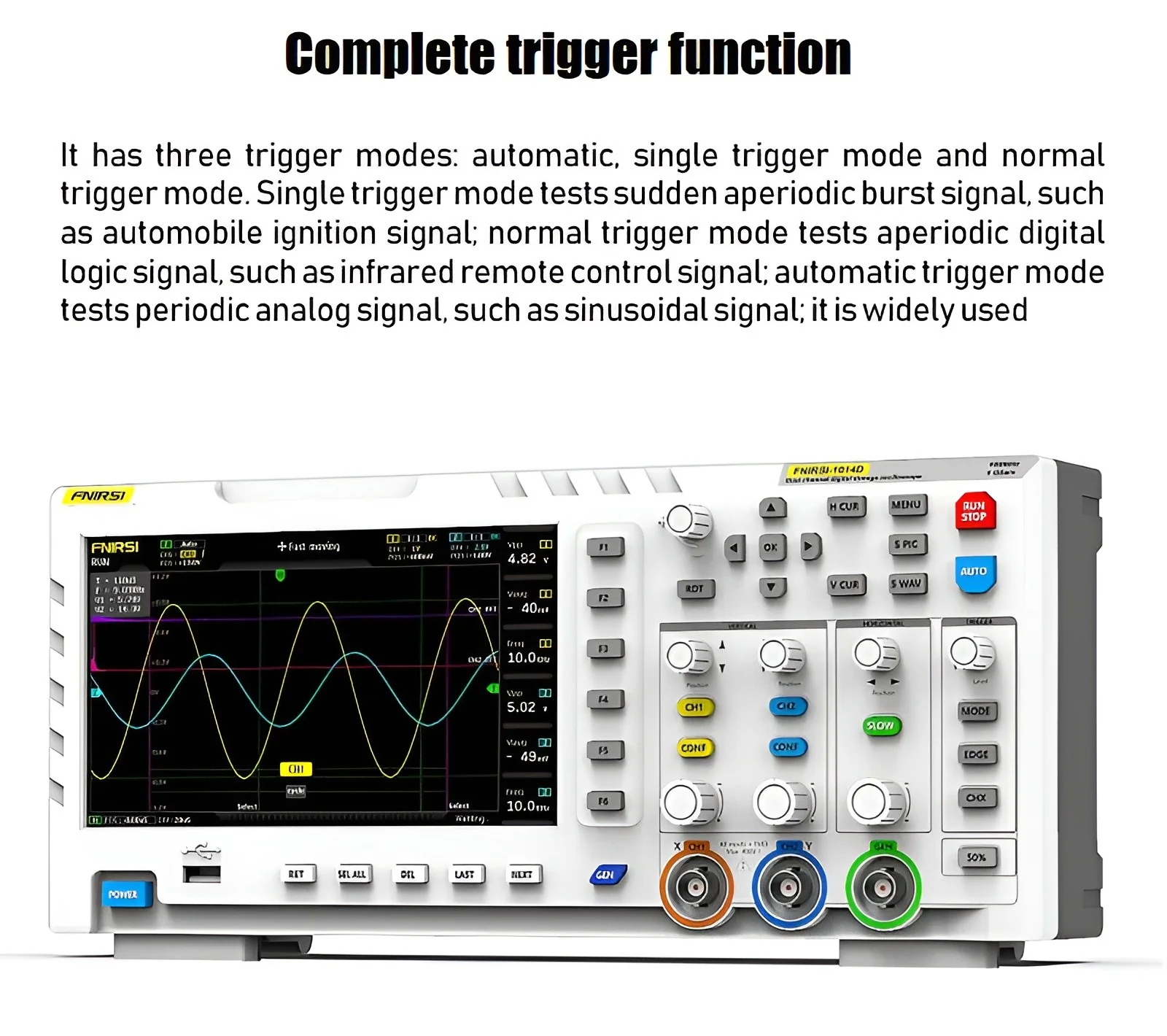

Complete trigger function (single/normal/automatic).
Capable of storing up to 1000 customized chopping signals.

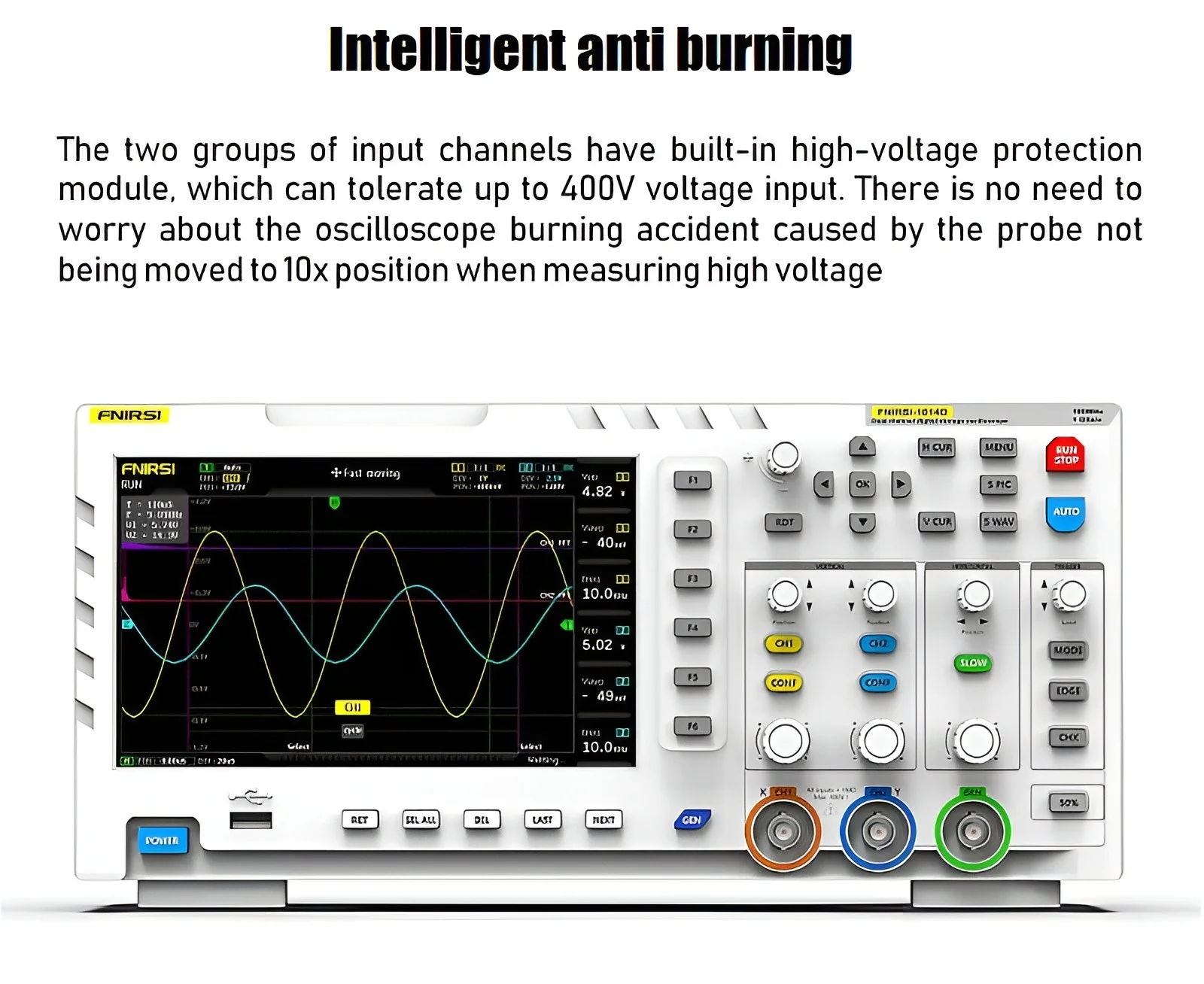

high-voltage protection module.

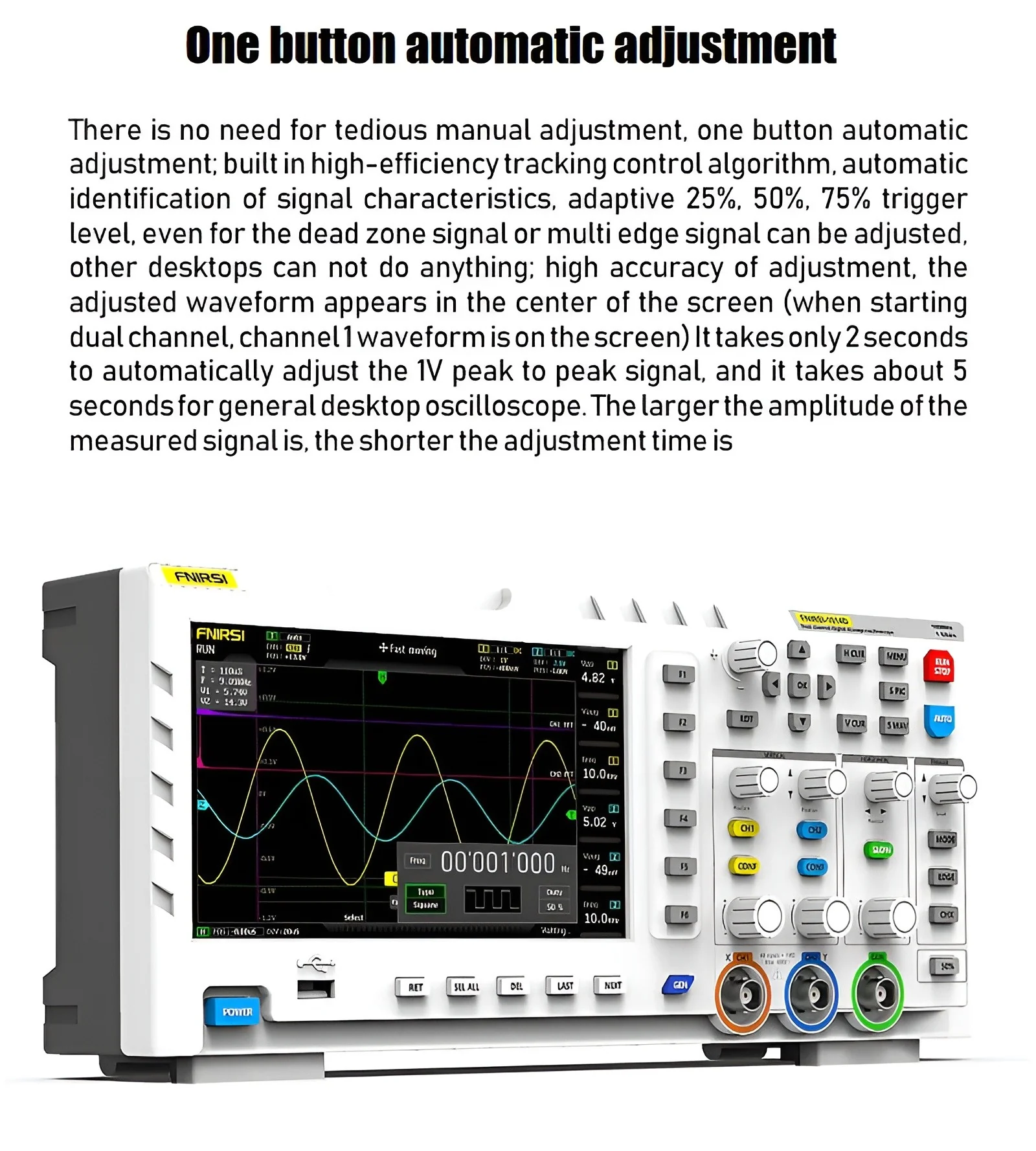

One-button AUTO and adaptive trigger (25%, 50%, 75%).
7-inch 800*480 resolution high-definition LCD screen.

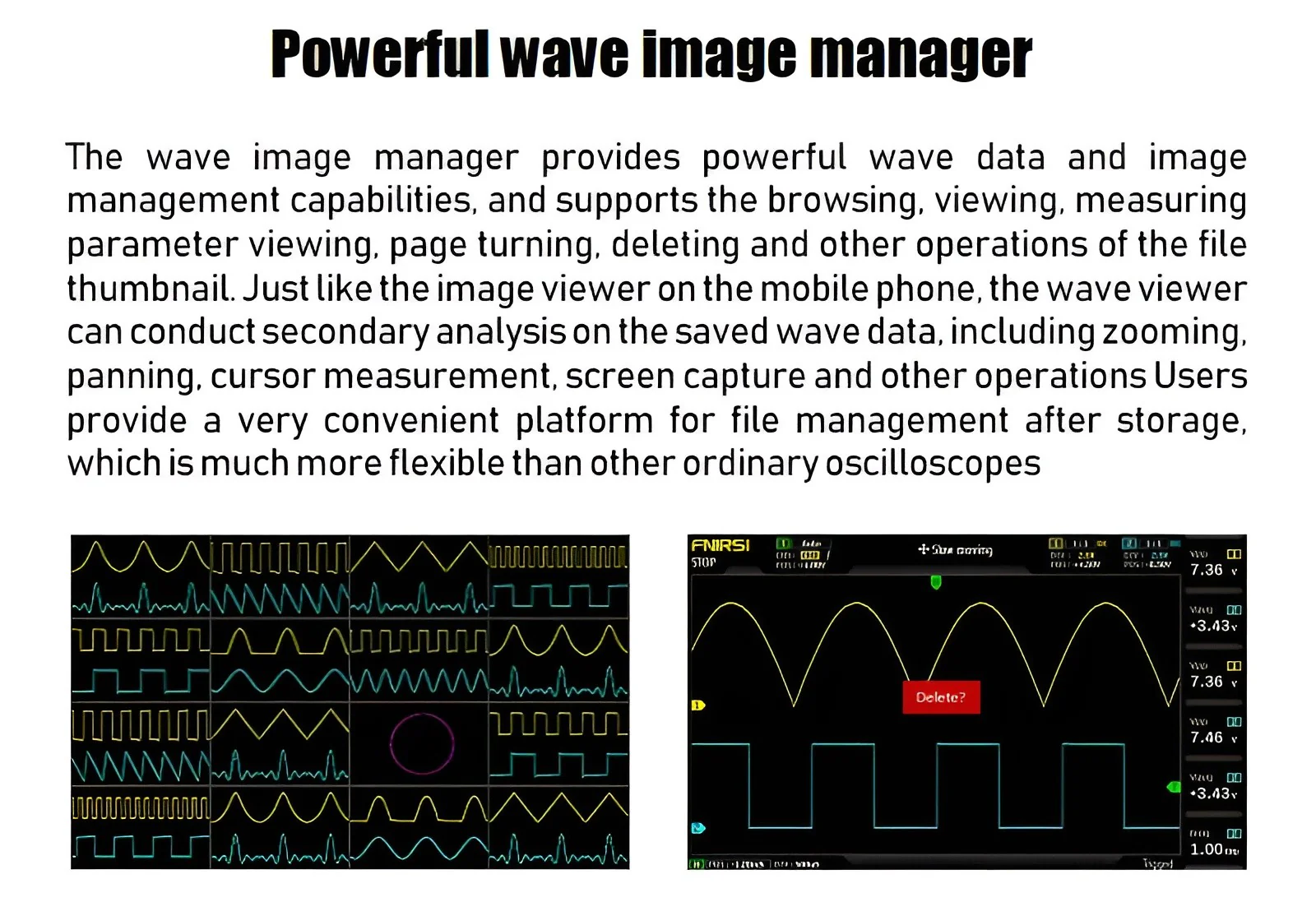

Powerful Waveform Picture Manager.

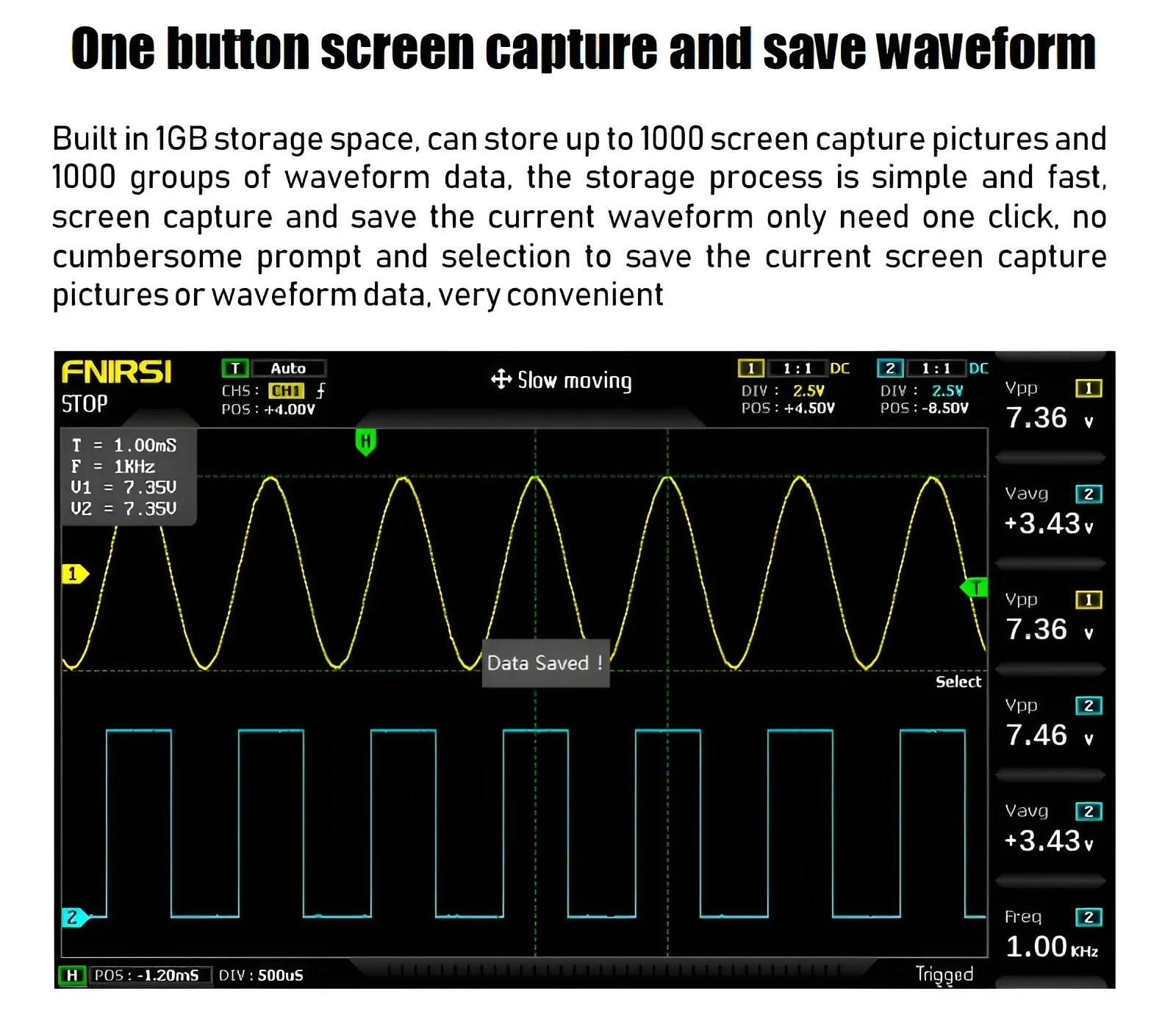

One-key Screenshot and Saving.
Cursor measurement function.

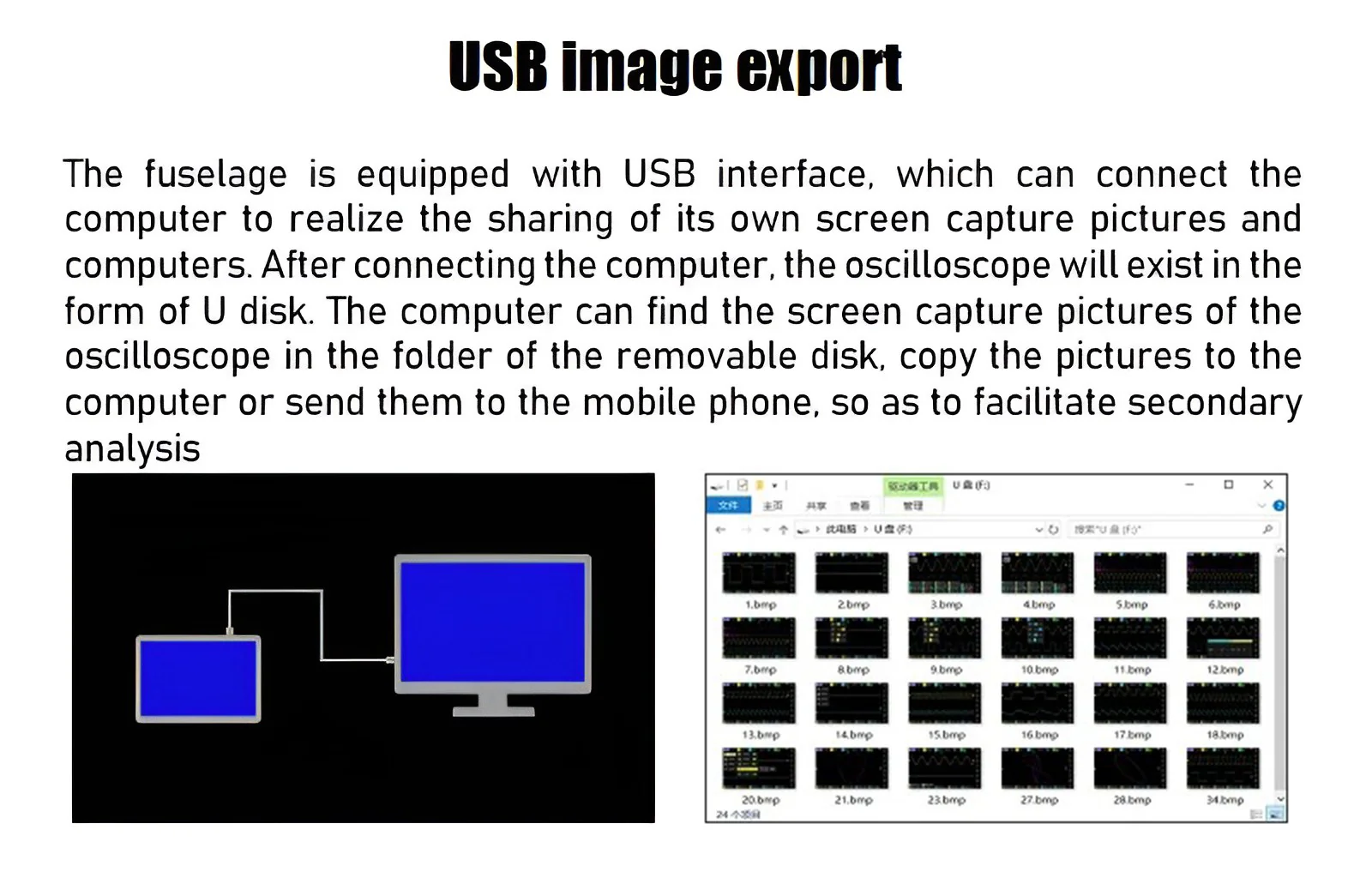

USB Picture Export
Lissajous Graphic Display & FFT Viewing.
Ideal for both periodic analog and aperiodic digital signals.
