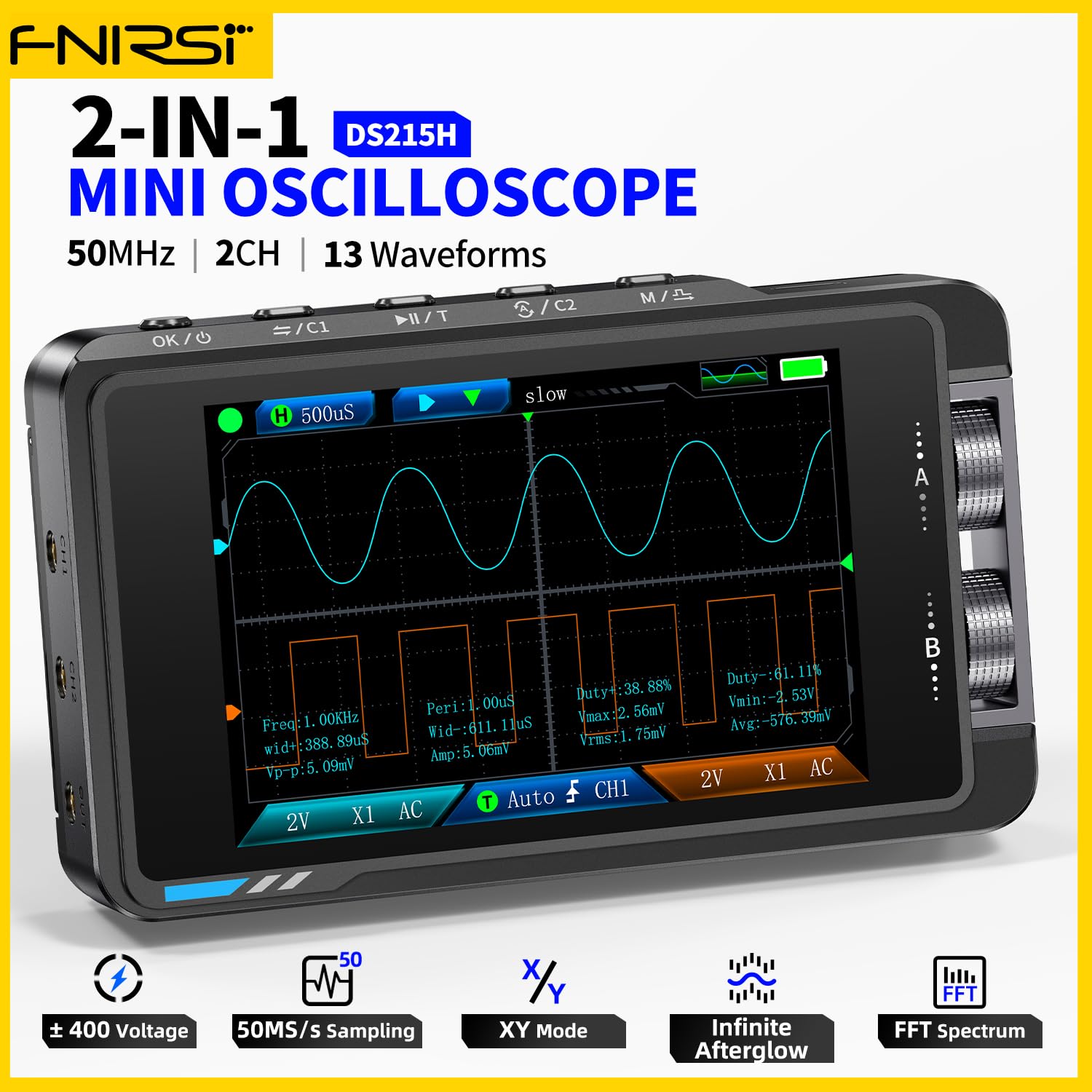

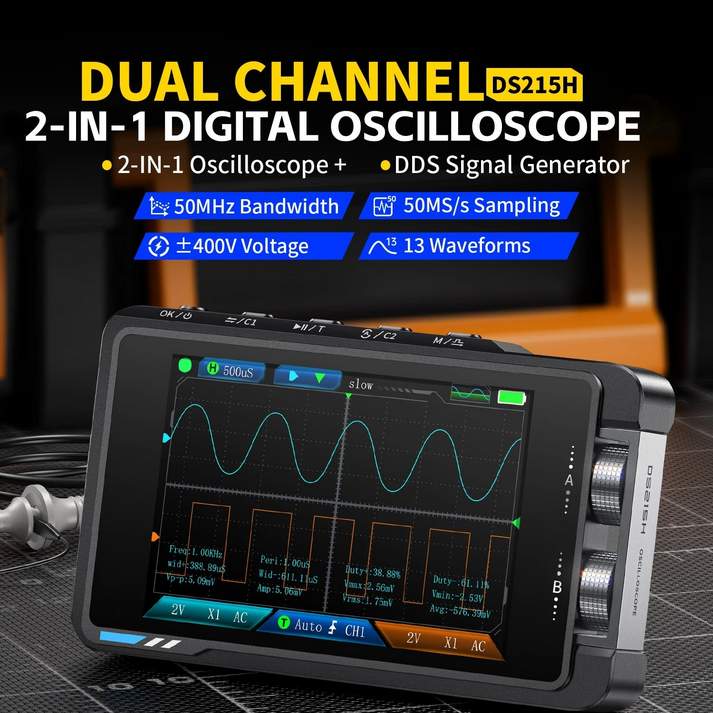

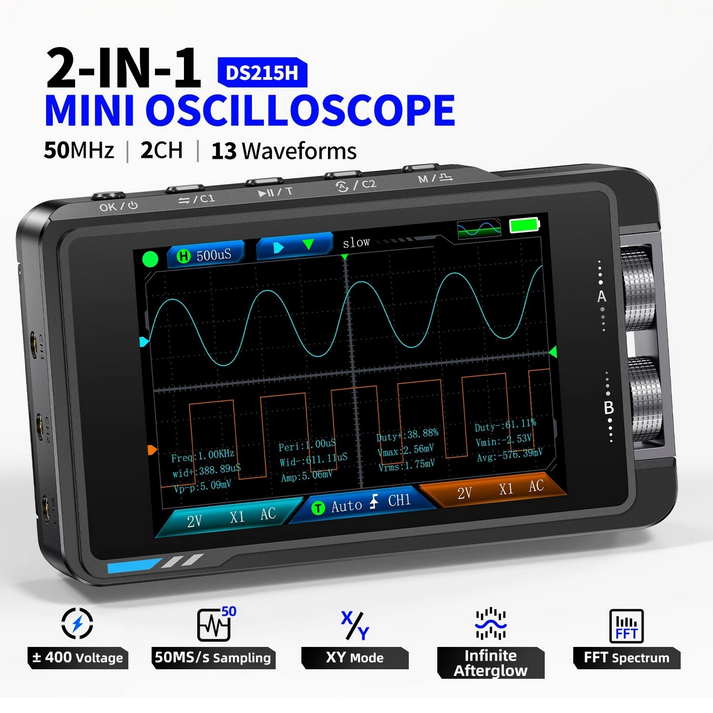

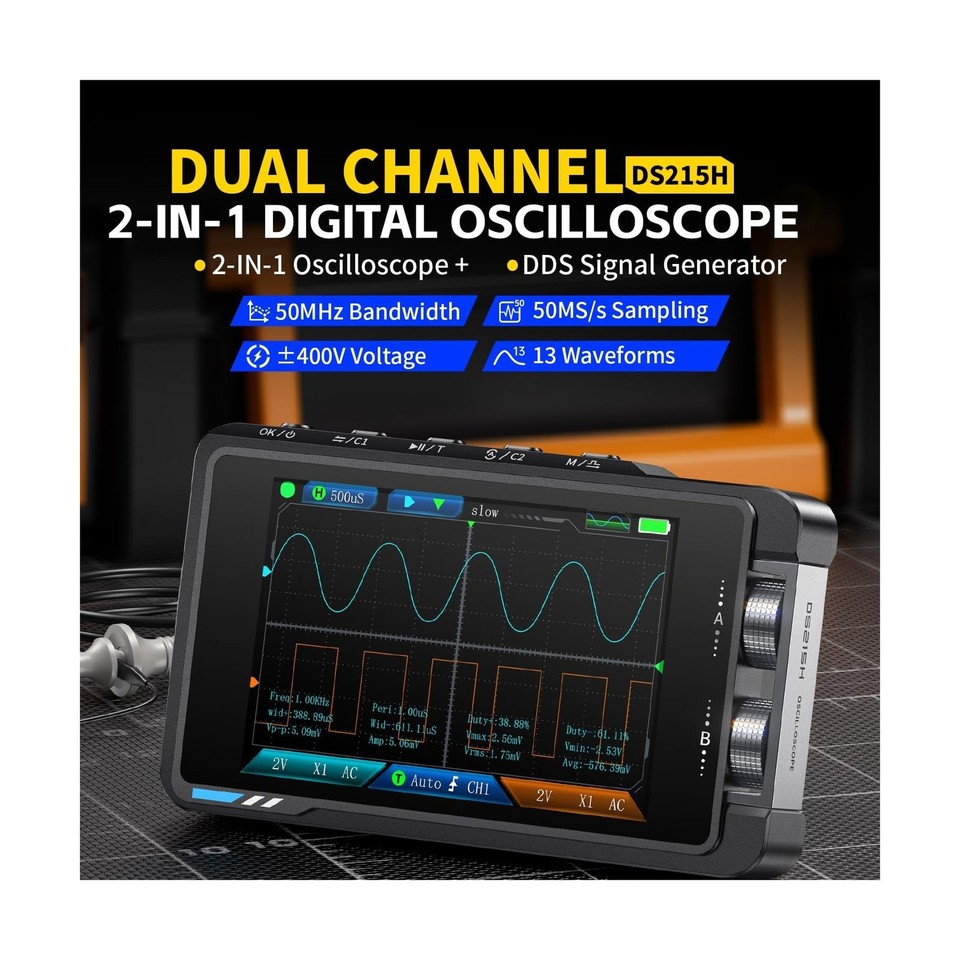

FNIRSI DS215H Digital Oscilloscope Multimeter FNIRSI DS215H 2 in 1 Mini Oscilloscope Dual Channel DDS Signal Generator 50MHz Bandwidth 250MS/s With Waveform storage supports screenshot saving and viewing

描述

FNIRSI DS215H Digital Oscilloscope Multimeter is 2 Channel 2 in 1 oscilloscope with signal generator Built on FPGA+MCU+ADC architecture with 250MSa/s real-time sampling. FNIRSI DS215H 2 in 1 Mini Oscilloscope Dual Channel DDS Signal Generator 50MHz Bandwidth 250MS/s With Waveform storage supports screenshot saving and viewing. CheShiTech.com Fnirsi Oscilloscope Signal Generator DS215H 2 in 1 Dual Channel Digital Storage Oscilloscope Waveform Generator features 13 waveform outputs with a frequency range of 0-50 KHz.

FNIRSI DS215H Digital Oscilloscope Multimeter FNIRSI DS215H 2 in 1 Mini Oscilloscope Dual Channel DDS Signal Generator 50MHz Bandwidth 250MS/s With Waveform storage supports screenshot saving and viewing

CheShiTech.com Fnirsi Oscilloscope Signal Generator DS215H 2 in 1 Dual Channel Digital Storage Oscilloscope Waveform Generator features 13 waveform outputs with a frequency range of 0-50 KHz

DS215H Dual Channel Digital Storage Oscilloscope Waveform Generator Description:

FNIRSI-DS215H is a comprehensive and practical two-in-one dual-channel digital test instrument launched by FNIRSI, designed for the maintenance and R&D industries.

Note: CheShiTech.com This FNIRSI DS215H Digital Oscilloscope have 2 Version, One is FNIRSI-DS215H Standard Edition, The Other is FNIRSI-DS215H Premium Edition(High-end).

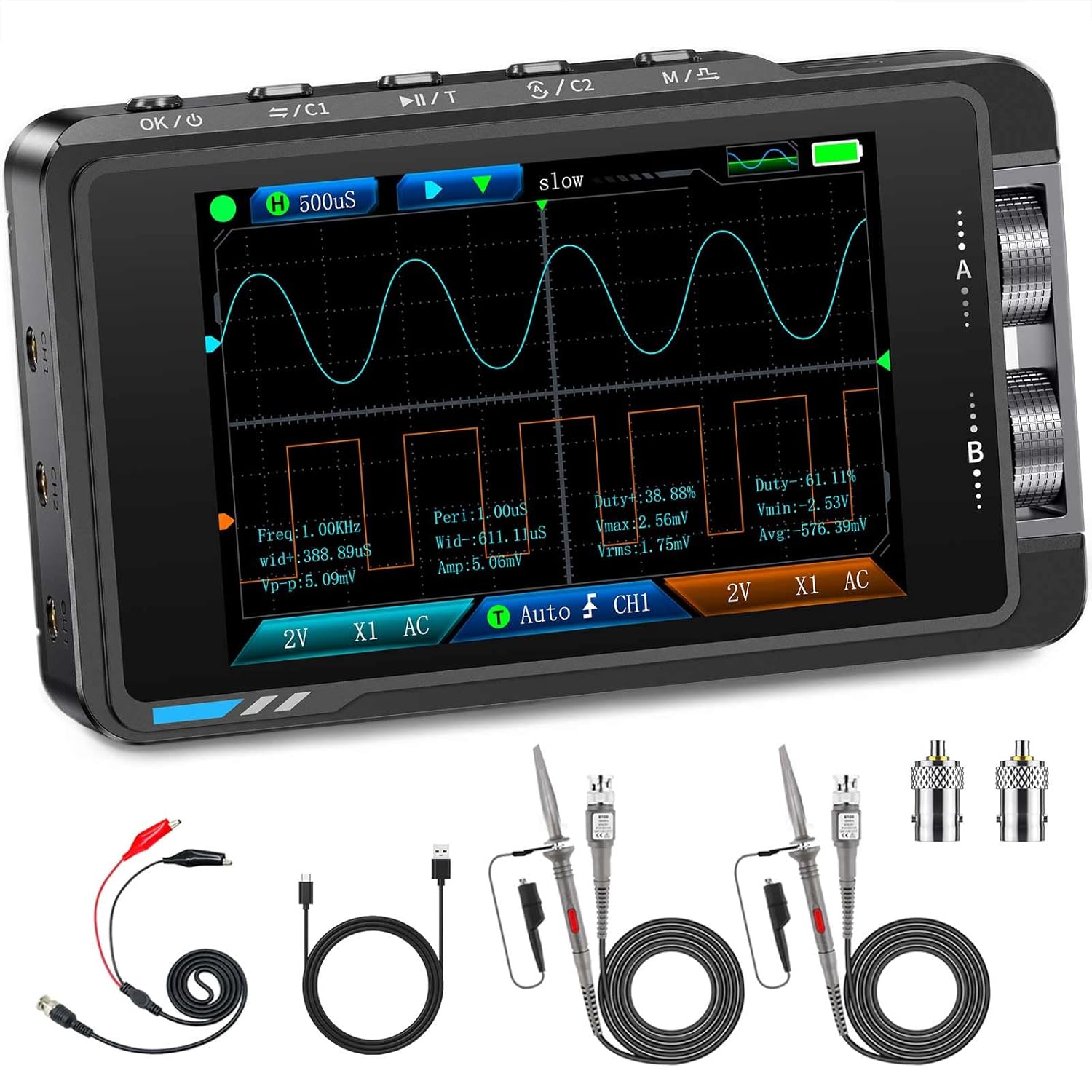

FNIRSI-DS215H Standard Edition: With Adapter x1 And P6100 high vltage probe x1

FNIRSI-DS215H Premium Edition(High-end): With Adapter x2 And P6100 high vltage probe x2

FNIRSI DS215H Digital Oscilloscope Multimeter Highlights

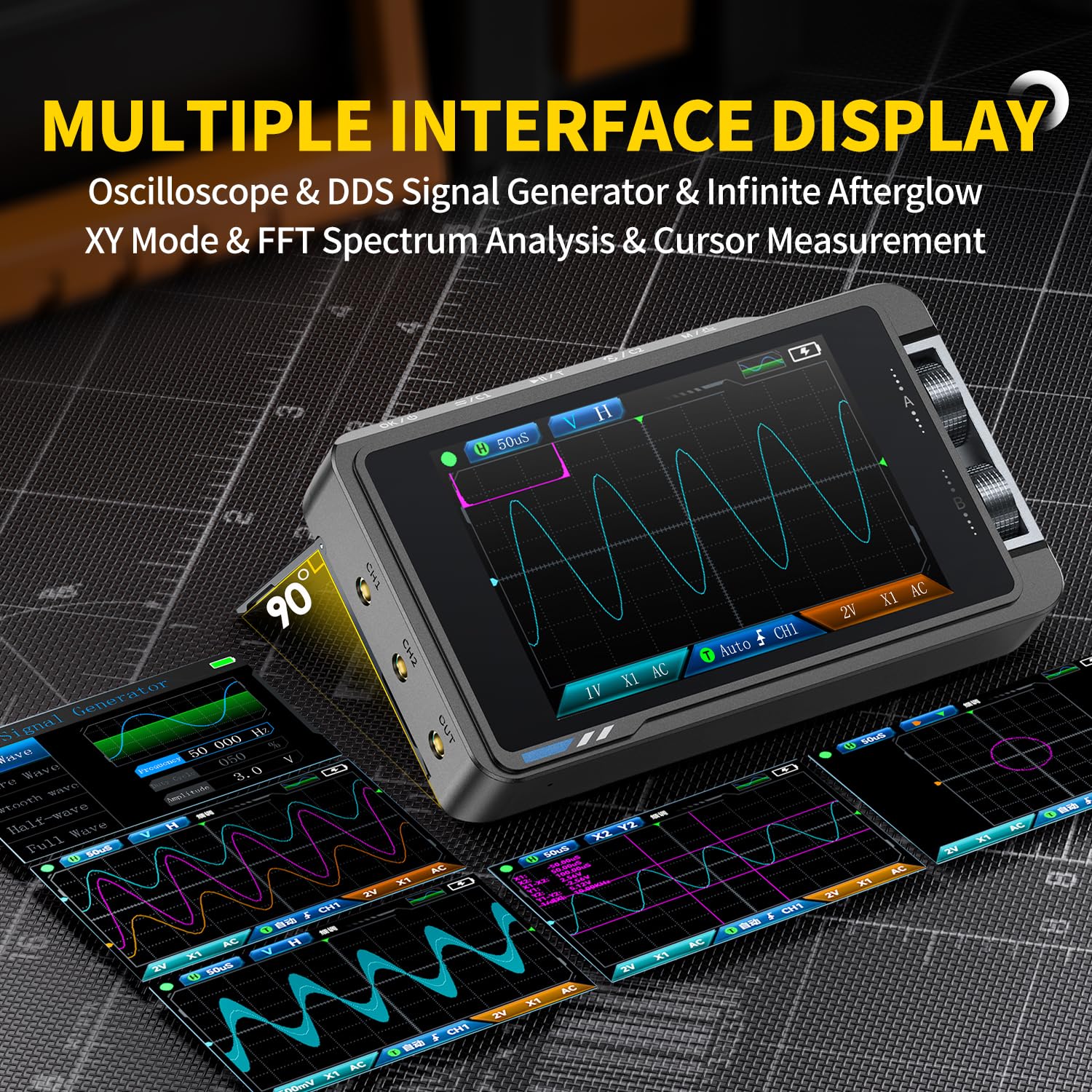

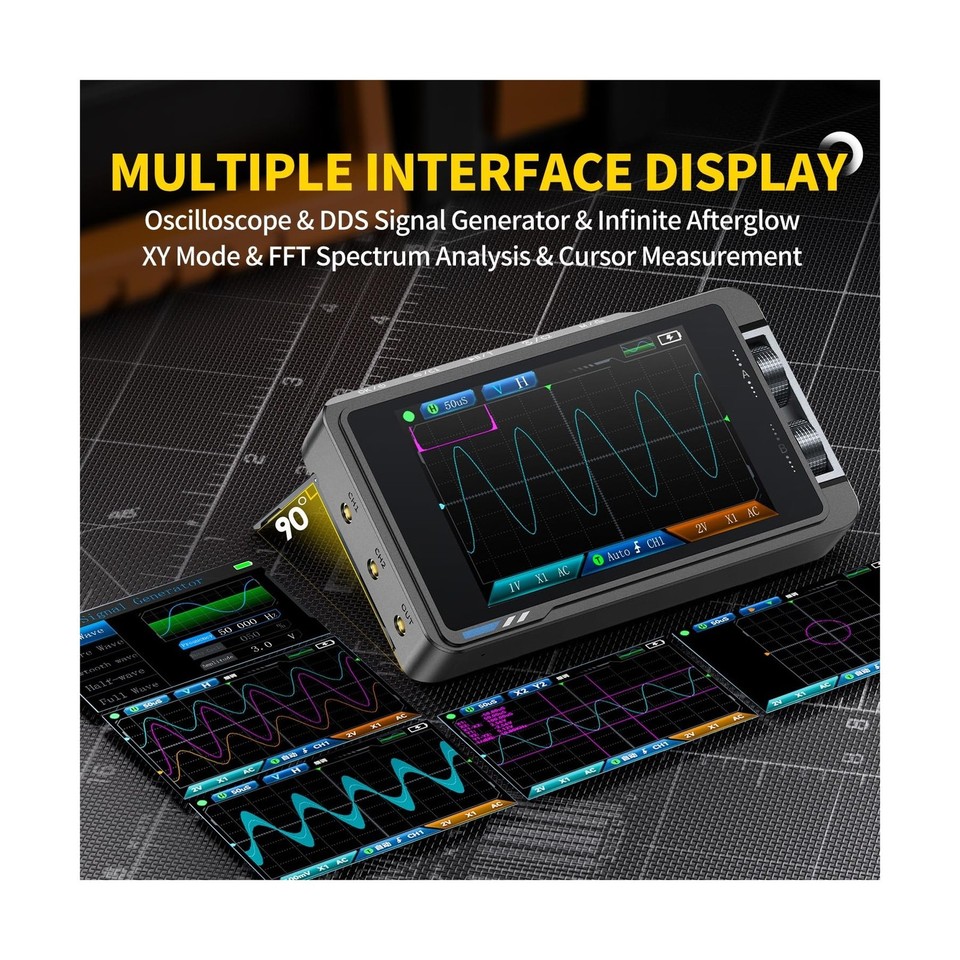

◉ All-in-One Design: Combines a 50MHz dual-channel digital oscilloscope and 0–50kHz function generator in one portable device.

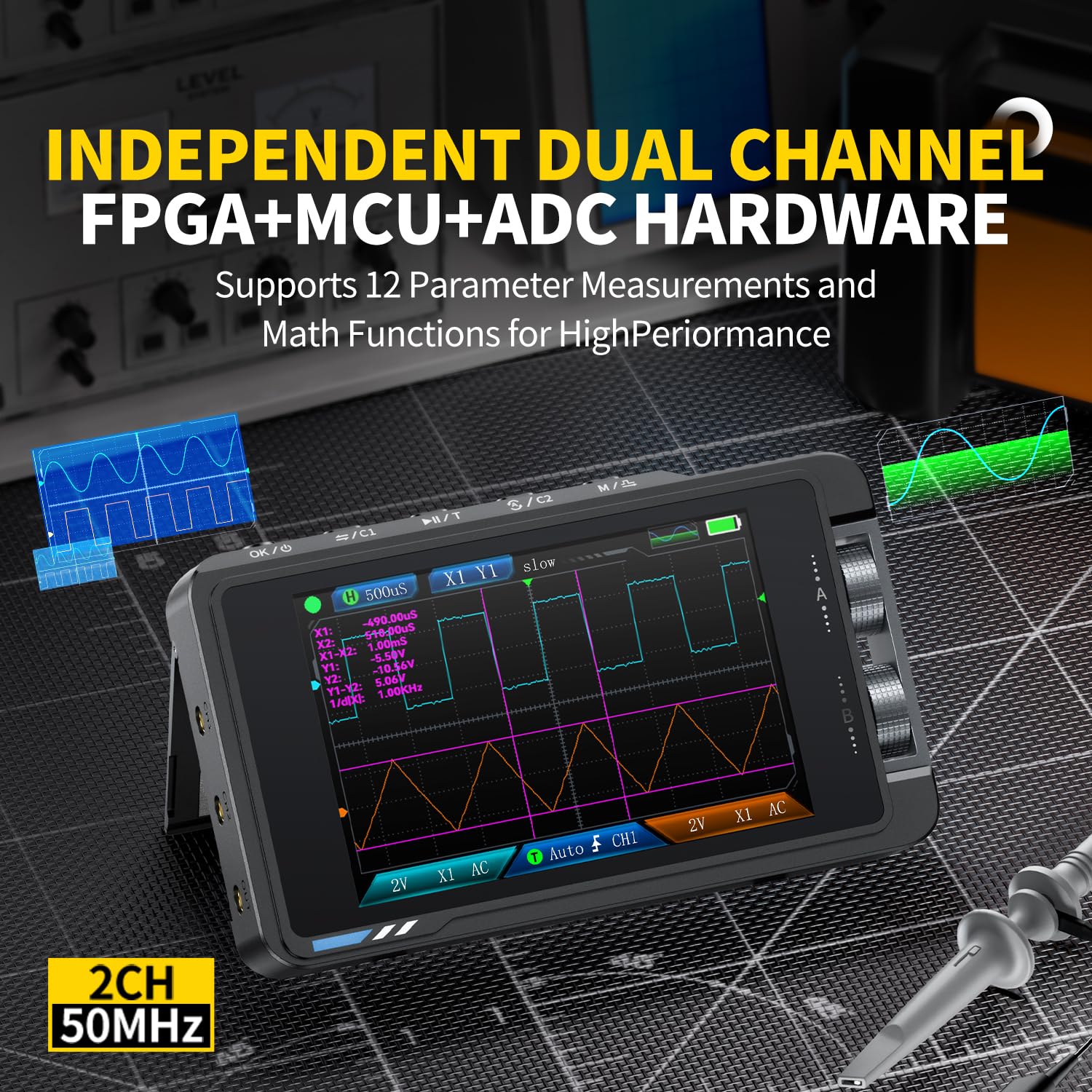

◉ High Performance: Built on FPGA+MCU+ADC architecture with 250MSa/s real-time sampling. Includes 13 built-in waveforms with adjustable frequency, amplitude, and duty cycle (up to 50kHz).

◉ HD Color Display: 3.5″ IPS screen with 480×320 resolution for clear and vivid visuals.

◉ Easy Operation: Intuitive dial and button control with quick-access menus for efficient use.

◉ Certified Safety: Supports ±400V peak input with high-voltage protection and 1X/10X probe ratio settings. Fully compliant with GB/T 15289-2013 standards.

◉ Long Battery Life: Powered by a 1500mAh rechargeable lithium battery. USB-C charging (5V/1A) provides up to 4 hours standby.

FNIRSI DS215H 2 in 1 Mini Oscilloscope Dual Channel DDS Signal Generator Key Features:

    High-precision measurement: The FNIRSI-DS215H offers high precision with a sampling rate of up to 250MS/s and a 50MHz analog bandwidth, ensuring accurate measurements for various applications.
Wide voltage protection: Supports peak voltage measurements up to ±400V, offering reliable and safe performance in high-voltage scenarios.
    Waveform storage: The device supports screenshot saving and viewing, making data analysis more convenient and efficient.

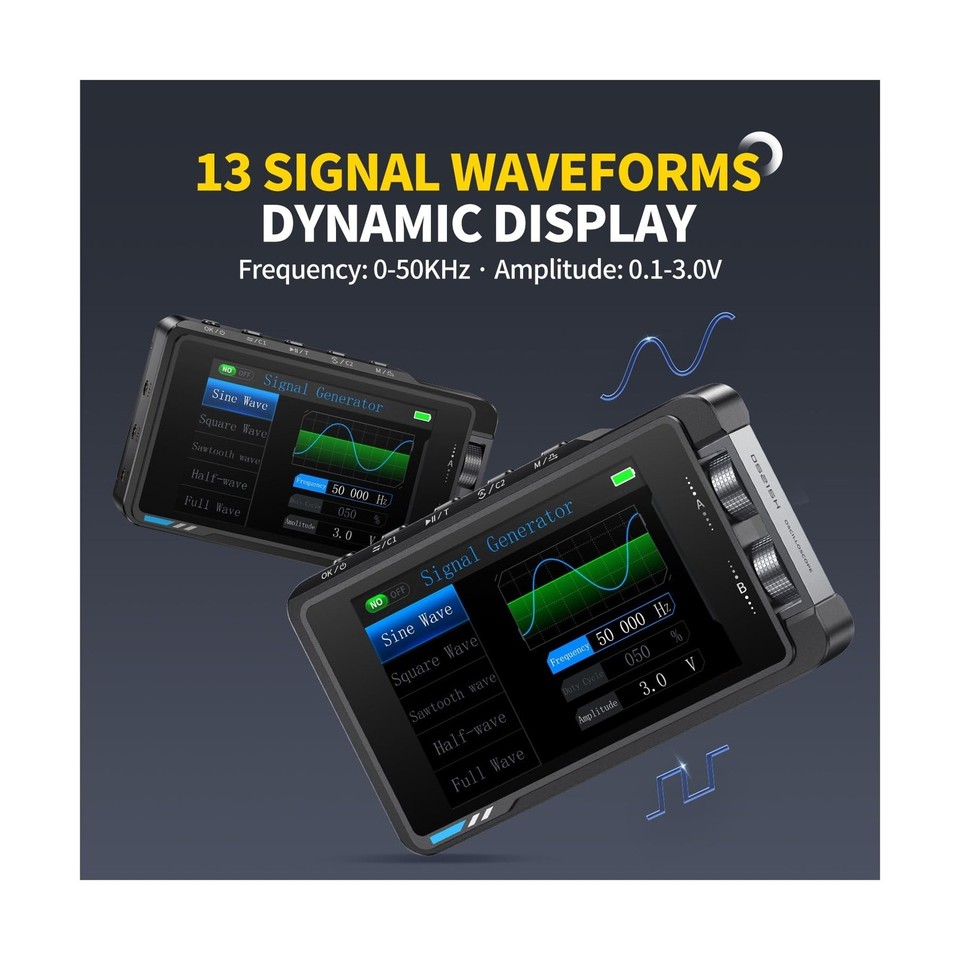

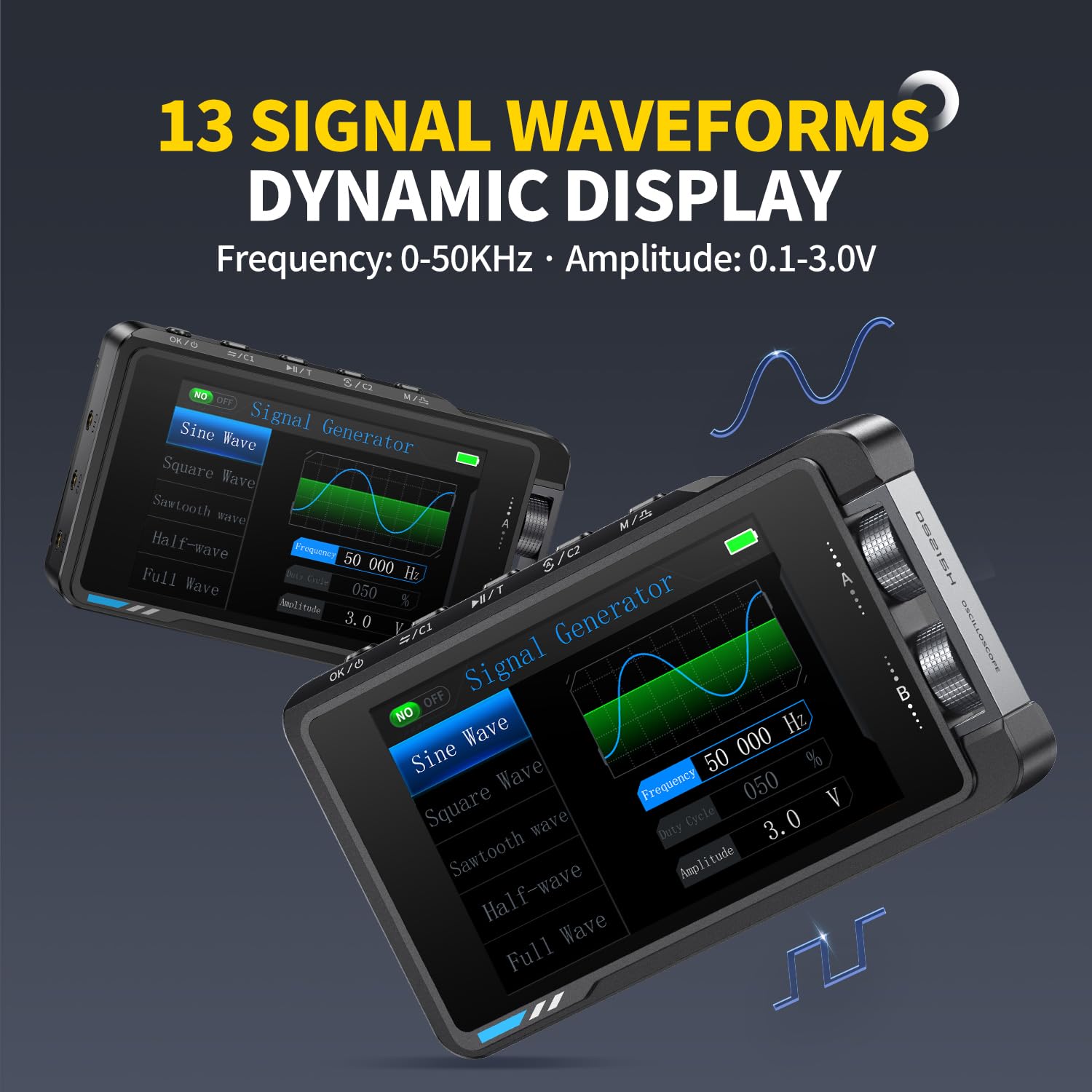

Signal generator functionality: It features 13 waveform outputs with a frequency range of 0-50 KHz, adjustable by a 1Hz step. The output parameters, including frequency, amplitude, and duty cycle, are fully adjustable to meet various needs.
Portable design: The device is equipped with a 3.5-inch display (480×320 resolution) for clear and intuitive visuals. Its compact and lightweight design makes it ideal for mobile use.
Long battery life: Powered by a 1500mAh rechargeable lithium battery, it supports up to 4 hours of continuous operation, ensuring long-lasting performance for on-the-go use.
Ideal for professionals: The FNIRSI-DS215H is designed to provide powerful and flexible features, offering users a portable and efficient tool for maintenance, R&D, and testing tasks.

Fnirsi Oscilloscope Signal Generator DS215H Specifications:

Basic Parameters:

Display: 3.5-inch IPS high-definition color screen
Backlight: adjustable brightness
Power supply: TYPE-C (5V/1A)
Battery: 1500mAh
Language: Chinese, English, Russian, Spanish, Portuguese, German
Product size: ≈66x110x19.5mm
Nude weight: ≈138g

Oscilloscope Parameters:

Channel: Dual Channel
Bandwidth: 50 MHz
Real-time sampling rate: 250 MSa/s
Storage space: 14M
Time base range: 20ns/div – 20s/div
Vertical sensitivity: 10mV/div – 10V/div
Waveform display mode: Scroll
Vertical resolution: 8 bits
Input impedance: 1ΜΩ
Measurement data: Cycle, Freq, Vpp, Max, Min, Avg, RMS, Amp,Dduty cycle, Pulse width
Probe attenuation factor: 1x / 10x
Input coupling: AC / DC
Trigger type: Rising edge / Falling edge
Peak voltage: ±400V
Trigger level range: 8 grids (positive and negative)
Trigger mode: Auto / Normal / Single

Signal Generator Parameters:

Output waveform: Supports multiple waveform outputs
Waveform frequency: 0-50 KHz
Square wave duty cycle: 0-100%
Waveform amplitude: 0.1V – 3.0V

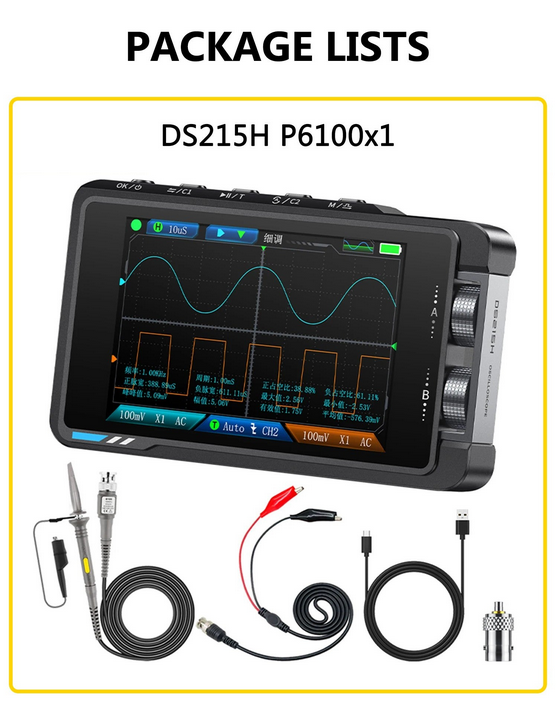

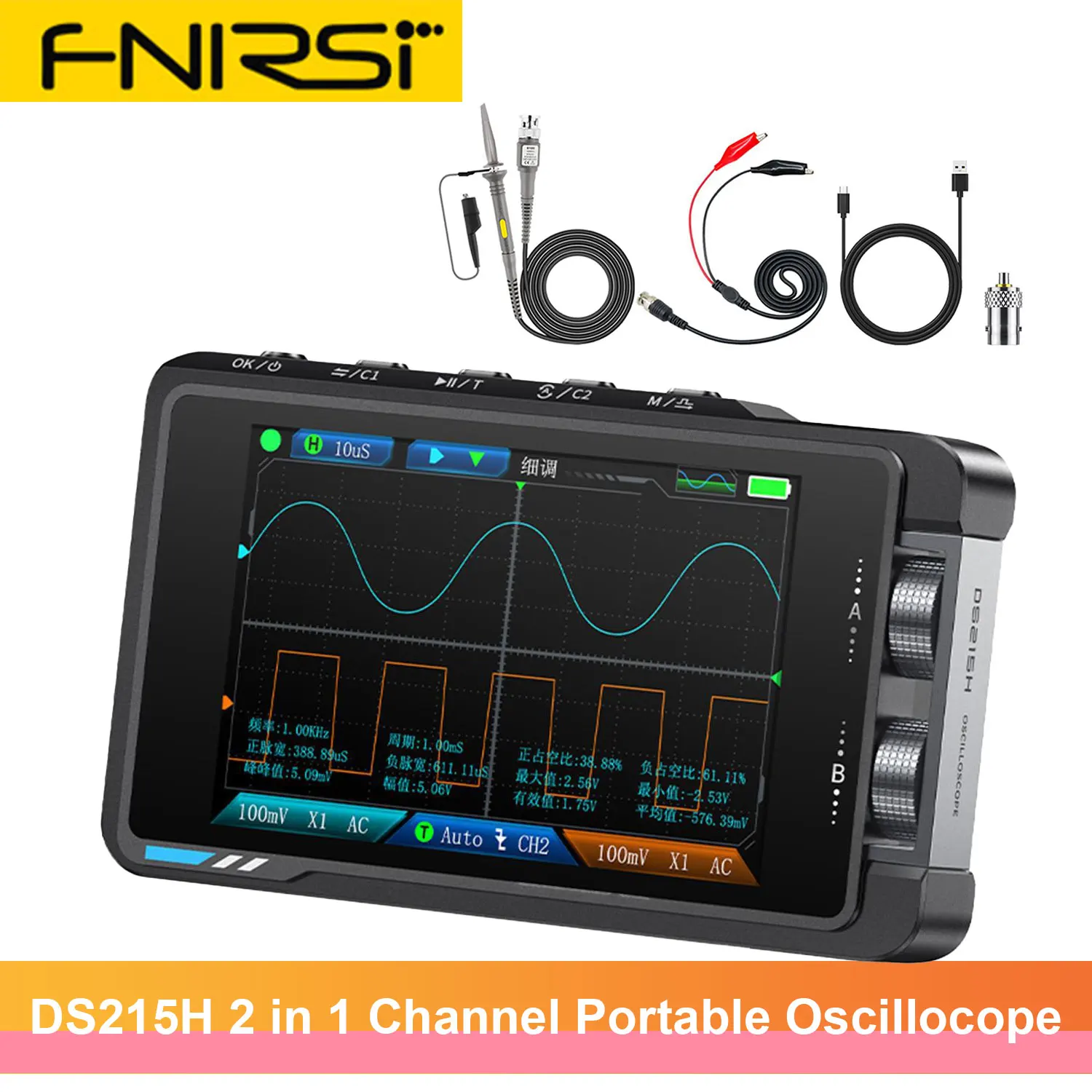

Package Lists (Standard):

Adapter x1
Host device x1
User manual x1
Charging cable x1
Alligator clip probe x1
Packaging color box x1
P6100 high vltage probe x1

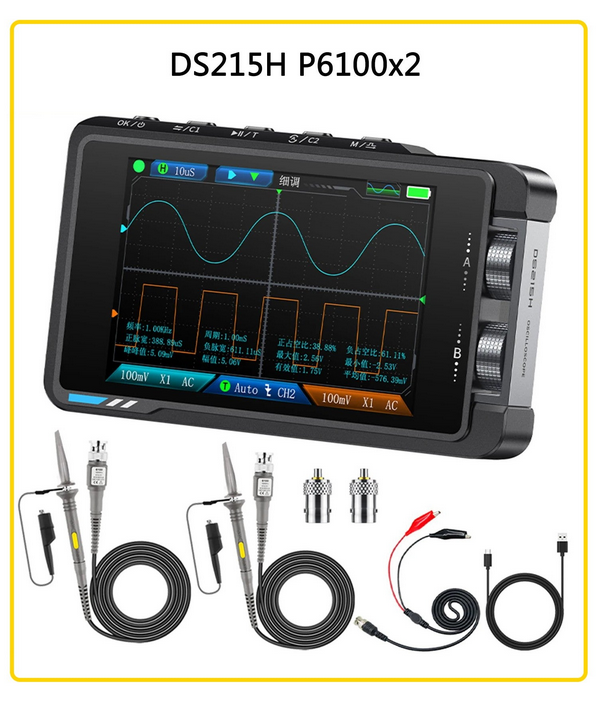

Package Lists Premium Edition(High-end):

Adapter x2
Host device x1
User manual x1
Charging cable x1
Alligator clip probe x1
Packaging color box x1
P6100 high vltage probe x2
